Name: Water Pump 100kPa IP67 SS304 Miniature Pressure Sensor
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Price: 21.00 USD
Availability: InStock

Rumah > Produk > Compact Pressure Sensor >

Water Pump 100kPa IP67 SS304 Miniature Pressure Sensor

SS304 Miniature Pressure Sensor

IP67 Miniature Pressure Sensor

100kPa Water Pump Pressure Sensor

Tempat asal:

Cina

Nama merek:

WNK

Sertifikasi:

Nomor model:

WNK80MA

Hubungi kami

Permintaan Penawaran

Water Pump 100kPa IP67 SS304 Miniature Pressure Sensor

Product Details

Bahan:

SS304

Keluaran:

4-20mA/0-5V/0-10V/0,5-4,5vdc

Kelas Produksi:

IP67

Koneksi proses:

G1/4 (m), NPT1/4, 1/8

Disesuaikan:

Media terukur:

Cairan, Gas, Uap, Minyak, Udara

Suhu Kerja:

-40-125C

Pengukuran tekanan:

Tekanan Pengukur, Tekanan Penyegelan

Menyoroti:

SS304 Miniature Pressure Sensor

IP67 Miniature Pressure Sensor

100kPa Water Pump Pressure Sensor

Payment & Shipping Terms

Kuantitas min Order

1 buah

Harga

negotiable

Kemasan rincian

Pengemasan karton netral atau sesuai kebutuhan Anda.

Waktu pengiriman

5-8 Hari Kerja

Syarat-syarat pembayaran

D/P, T/T, Western Union, Paypal

Menyediakan kemampuan

5000/ potong/ bulan

Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS

Dapatkan Harga Terbaik

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

Dapatkan Harga Terbaik

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

Dapatkan Harga Terbaik

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

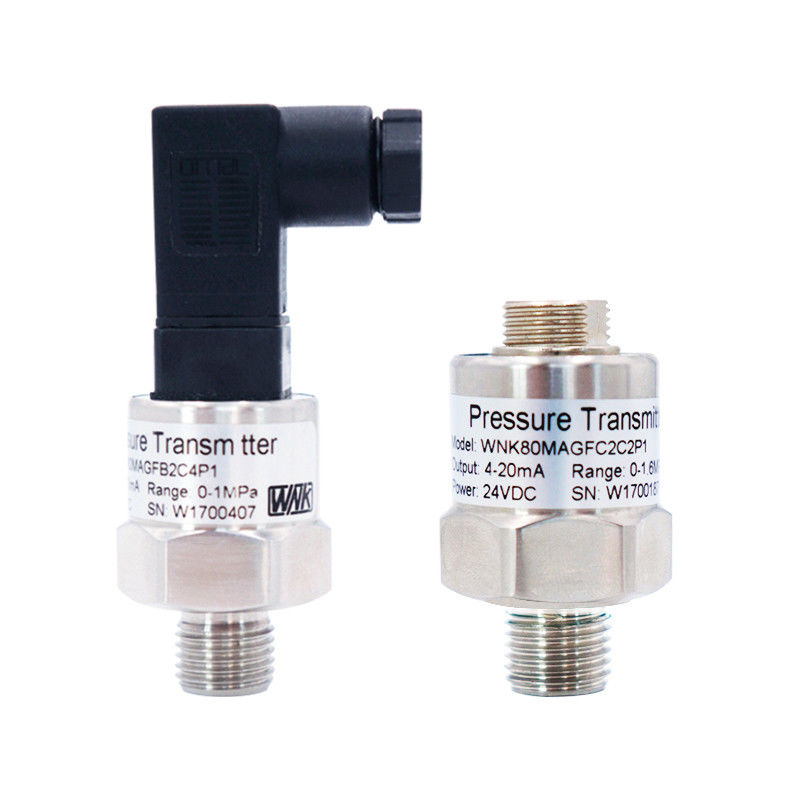

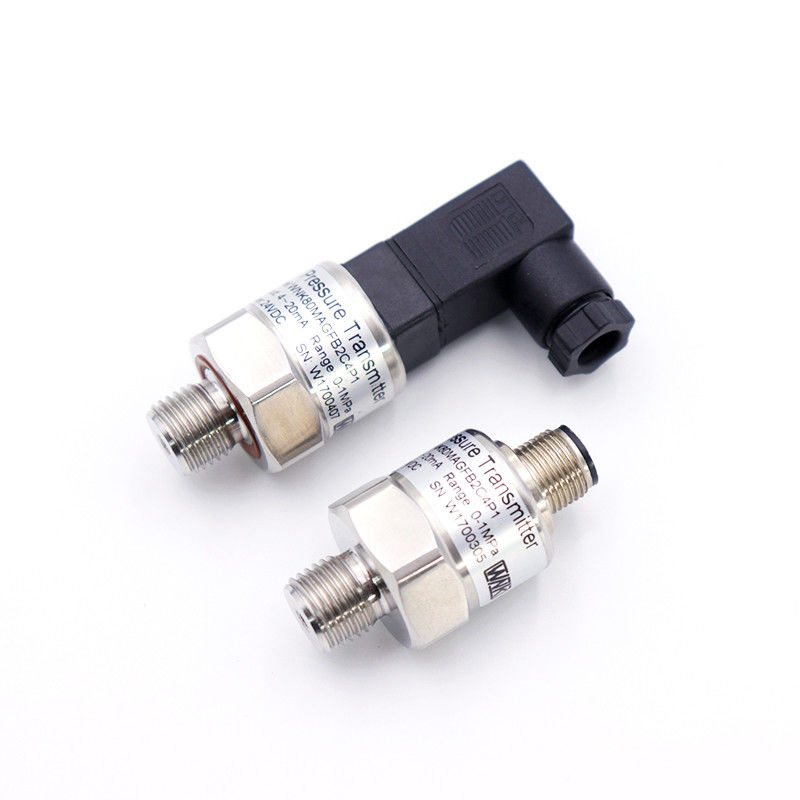

Miniature Pressure Sensor Water Pressure Sensor Water Pump Pressure Sensor

Product Description

Applicable media	Liquid, Gas
Pressure range	0-100kPa~150bar
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, Sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply	24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection	G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material	304 stainless steel
Protection	IP65

Features:

•Specific high performance ASIC conditioning circuit;
•Dry ceramic capacitive pressure sensor;

•Robust ceramic capacitive sensitive membrane;

•Excellent anti-corrosive and anti-wear performance;

•Suitable for pollution and corrosive environment;

•Various electrical connectors optional;

•Rapid response, no hysteresis;

•Wide operating temperature range -40~135℃;

•Anti-icing;

•0.5…4.5V and 4…20mA analog output or I2C and SPI digital output;

•Accurate, stable and reliable;

Product Show

Company Information

Factory

Exhibition

Our Certificate

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
