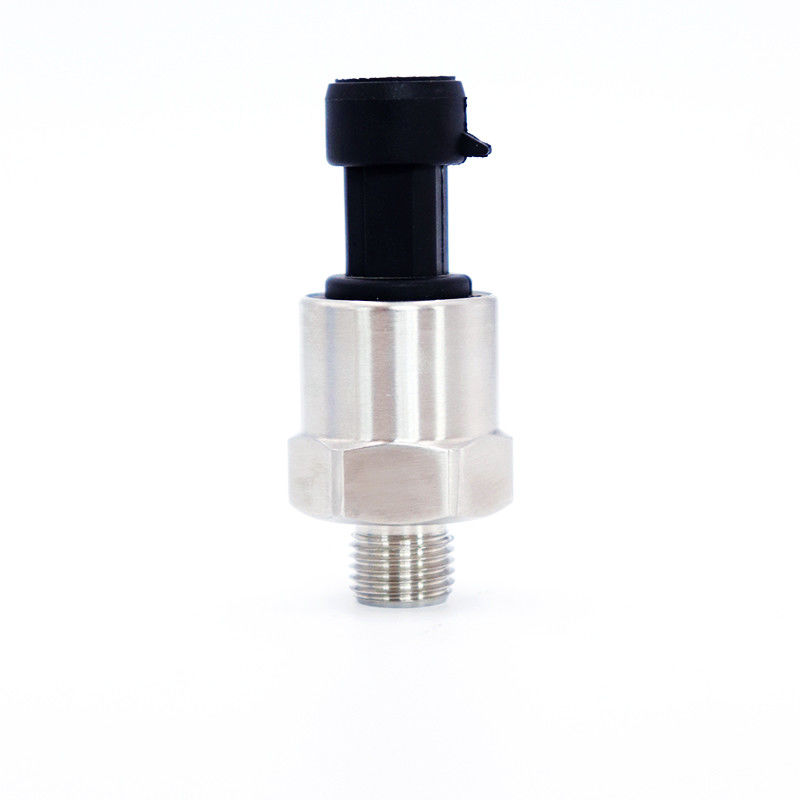

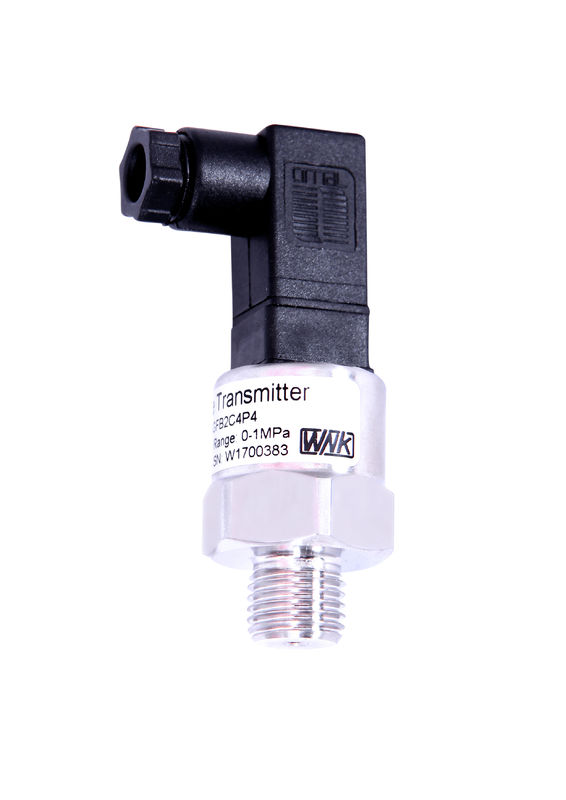

Name: WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Price: 21.00 USD
Availability: InStock

Rumah > Produk > Compact Pressure Sensor >

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

WNK 4 - 20ma Pressure Transmitter

IP65 4 - 20ma Pressure Sensor

IP65 4 - 20ma Pressure Transmitter

Tempat asal:

Cina

Nama merek:

WNK

Sertifikasi:

CE&UL

Nomor model:

WNK80MA

Hubungi kami

Permintaan Penawaran

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

Product Details

Keluaran:

24VDC/12VDC/5VDC/3.3V

Kisaran tekanan:

0~15MPa

Media terukur:

Cair, gas dan uap

Sambungan Listrik:

Packard, M12, DIN43650, Kabel

Bahan perumahan:

Alunimum/Kuningan/SST 304

Kata-kata kunci:

Sensor Tekanan

tingkat IP:

IP65

Koneksi proses:

G1/2, G1/4, M2x1.5NPT1/4, kustomisasi

Menyoroti:

WNK 4 - 20ma Pressure Transmitter

IP65 4 - 20ma Pressure Sensor

IP65 4 - 20ma Pressure Transmitter

Payment & Shipping Terms

Kuantitas min Order

1 buah

Kemasan rincian

Kemasan Standar atau sesuai kebutuhan Anda

Waktu pengiriman

3-5 hari

Syarat-syarat pembayaran

T/T, Paypal, West Union

Menyediakan kemampuan

1000

Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS

Dapatkan Harga Terbaik

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

Dapatkan Harga Terbaik

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

Dapatkan Harga Terbaik

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

WNK 4-20ma 0.5-4.5V Pressure Sensors 150Psi Pressure Transmitter

WNK 4-20ma150Psi Pressure Transmitter

Product Description

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media	Liquid, Gas
Pressure range	0-60bar
Pressure measurment	Gauge Pressure, Absolute pressure, Sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)	0.2% 0.5% 1.0% FS.(Typical)
Power supply	24VDC/12VDC/5VDC/3.3V
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
power(electrical) connect	Parkard, M12, DIN43650, Cable outlet
Mechanical connection	G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP65
