Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

I2C Water Pressure Sensor

15MPa Water Pressure Sensor

Ceramic Capacitive Pressure Sensor

Tempat asal:

Cina

Nama merek:

WNK

Sertifikasi:

CE&UL

Nomor model:

WNK80MA

Hubungi kami
Permintaan Penawaran
Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor
Product Details
Catu Daya:
24VDC/12VDC/5VDC/3.3V
Kisaran tekanan:
0~15MPa
Media terukur:
Cair, gas dan uap
Sambungan Listrik:
Packard, M12, DIN43650, Kabel
Bahan perumahan:
Alunimum/Kuningan/SST 304
Kata-kata kunci:
Sensor Tekanan
tingkat IP:
IP65
Koneksi proses:
G1/2, G1/4, M2x1.5NPT1/4, kustomisasi
Keluaran:
4-20mA/0-5v/0.5-4.5v/I2C
Menyoroti:

I2C Water Pressure Sensor

,

15MPa Water Pressure Sensor

,

Ceramic Capacitive Pressure Sensor

Payment & Shipping Terms
Kuantitas min Order
1 buah
Harga
negotiable
Kemasan rincian
Kemasan Standar atau sesuai kebutuhan Anda
Waktu pengiriman
3-5 hari
Syarat-syarat pembayaran
T/T, Paypal, West Union
Menyediakan kemampuan
5000PCS per bulan
RELATED PRODUCTS
Harga bagus Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS on line Video

Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS

Dapatkan Harga Terbaik
Harga bagus Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor on line

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

Dapatkan Harga Terbaik
Harga bagus WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65 on line

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

Dapatkan Harga Terbaik
Harga bagus WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil on line

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

Dapatkan Harga Terbaik
Hubungi kami
Hubungi Sekarang
Product Description

IP65 4-20MA Low Cost Pressure Sensor For Water I2C Pressure Sensor



Product Description



WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.



With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.





Applicable media Liquid, gas and steam
Pressure range00 0-15Mpa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure and sealing pressure
Output 4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply 24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability) 0.5%FS-1%FS
Compensation temperature -20~85ºC
Ambient temperature -40~125ºC
Working temperature -40~125ºC
Temperature drift(zero) ±0.15% F.S. (-20~85ºC)
Temperature drift(full range) ±0.15% F.S. (-20~85ºC)
Electrical connection Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material 304 stainless steel(316SS for inner core)
Protection IP65

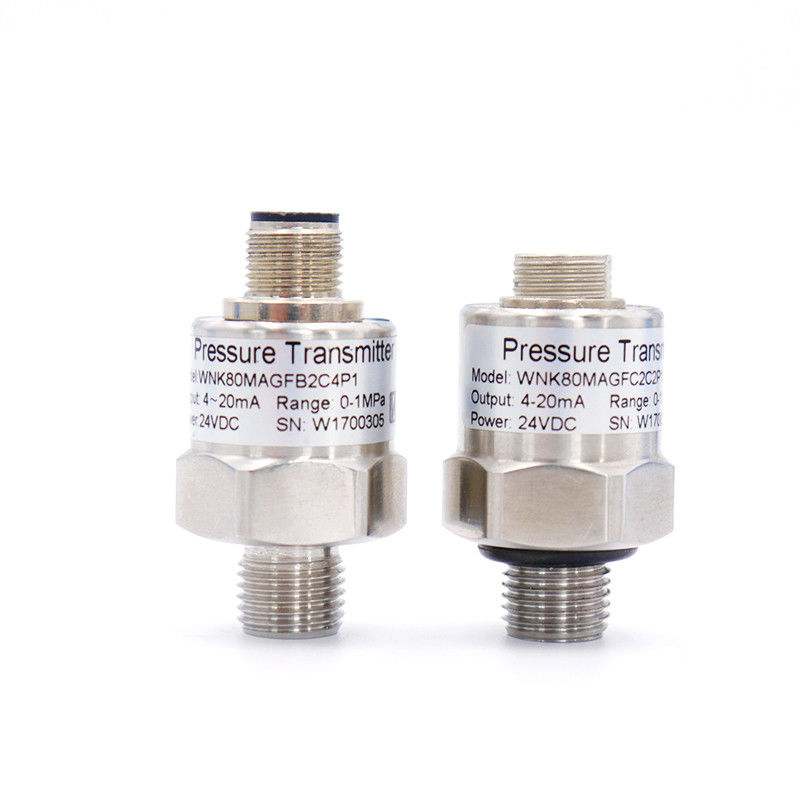

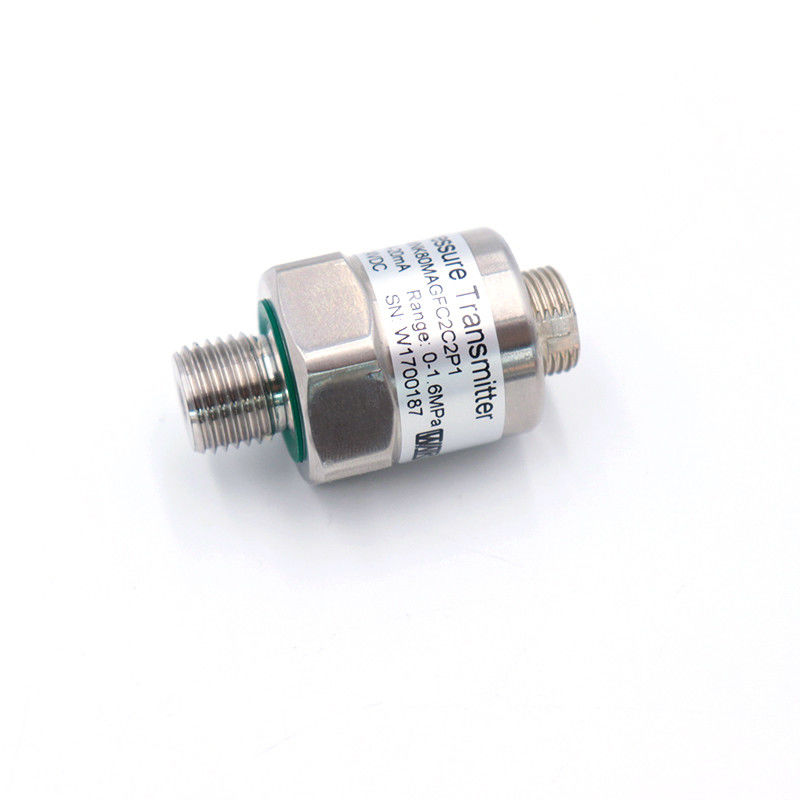

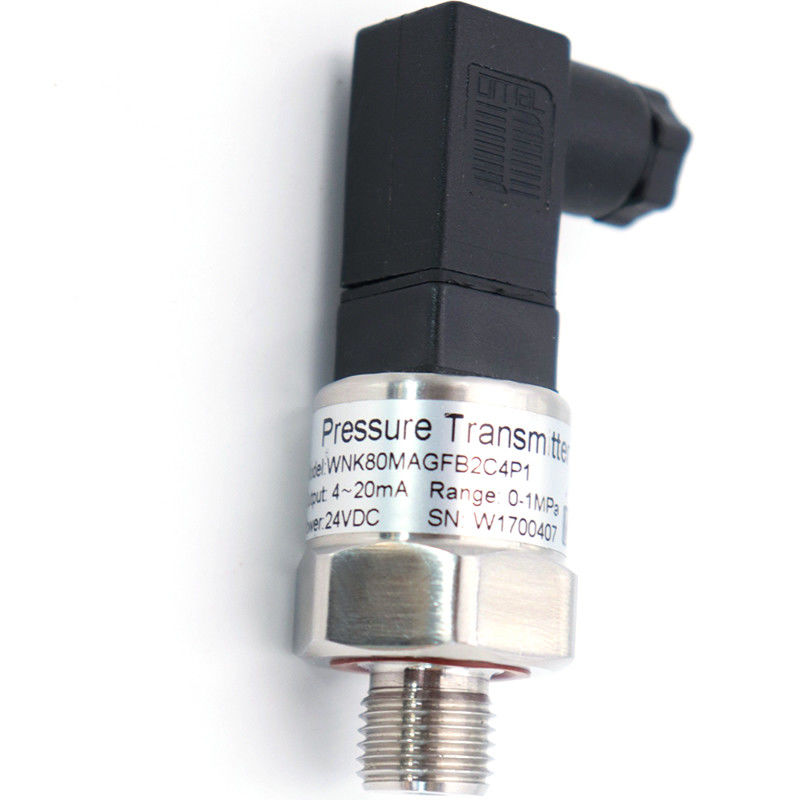

Product Display









Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor 0







Company Information



Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor 1Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor 2Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor 3Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor 4Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor 5Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor 6



FAQ



Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
