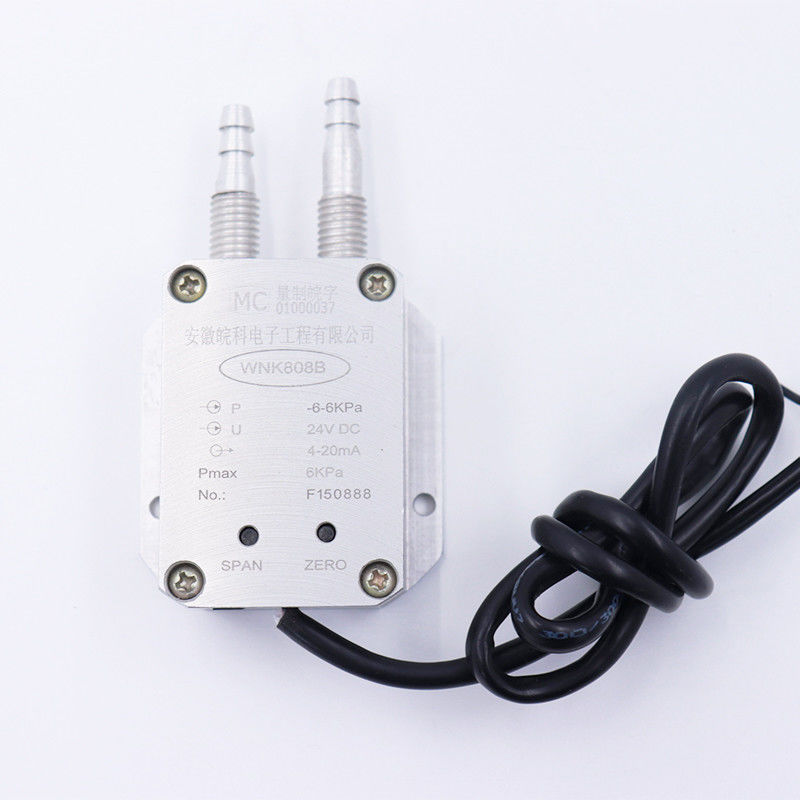

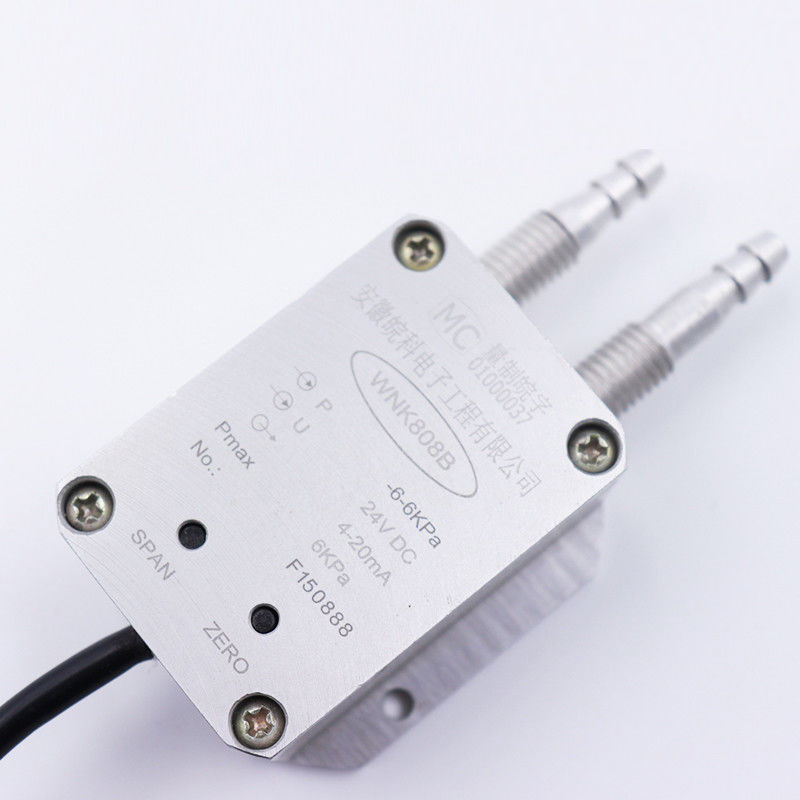

100KPa Aluminum HVAC Wind Differential Pressure Sensor

100KPa Aluminum HVAC Wind Differential Pressure Sensor

HVAC Wind Differential Pressure Sensor

100KPa Differential Pressure Sensor

Aluminum HVAC Wind Pressure Sensor

Tempat asal:

Cina

Nama merek:

WNK

Sertifikasi:

CE

Nomor model:

WNK808B

Hubungi kami
Permintaan Penawaran
Product Details
Keluaran:
4-20mA
Jenis tekanan:
Tekanan Diferensial Mikro
Catu Daya:
24VDC
Aplikasi:
Pemancar Tekanan Angin HVAC
Bahan:
Aluminium
Ketepatan:
±0,2%FS, ±0,5%FS
Suhu Kerja:
-10-70C
Kisaran tekanan:
-10Pa~100Pa, -100kPa~+100kPa
Menyoroti:

HVAC Wind Differential Pressure Sensor

,

100KPa Differential Pressure Sensor

,

Aluminum HVAC Wind Pressure Sensor

Payment & Shipping Terms
Kuantitas min Order
1 buah
Kemasan rincian
Pengemasan karton netral atau sesuai kebutuhan Anda.
Waktu pengiriman
5-8 Hari Kerja
Syarat-syarat pembayaran
D/P, T/T, Western Union, Paypal
Menyediakan kemampuan
5000/potong/bulan
Product Description

4-20mA Wind Differential Pressure Sensors Output Pressure Transmitter



Product Description

WNK808B Differential Pressure Transmitter Adopt High Accuracy And High Stable Chips,And are assembled with Aluminium Alloy or Stainless housing and Stress Isolation Technology .Though precision temp compensation and amplificaton ,

WNK808 transfers normal signal to 4~20mA or 1~5V standard signal, which connect with industrial computer or distribution system interface. They are widely applied to wind pressure and flow measurement of industries of petroleum, chemical, steel, power plant and etc, to realize industrial automation process control.
Application Media Non-conductive or weak corrosive gas
Pressure Range -10Pa-100Pa -100Kpa-+100Kpa
Accuracy ±0.2%FS, ±0.5%FS, ±1%FS
Stability 0.8%FS/Year
Max static pressure 70Kpa
Max Overload 250%FS
Output 4-20mA
Housing Material Aluminium 14
Pressure Connector M8*1 female or Φ8 Pagoda type head
Power Supply Non-explosion: 10.5~45VDC
  Exia:10.5~30VDC
Ambient Temperature -40~85℃
Compensation temperature -10~70℃
Working temperature -10~70℃

100KPa Aluminum HVAC Wind Differential Pressure Sensor 0100KPa Aluminum HVAC Wind Differential Pressure Sensor 1

Company Information

100KPa Aluminum HVAC Wind Differential Pressure Sensor 2

FAQ



Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
