Name: High Performance Compact Water Pressure Sensor With I2C Output
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Price: 21.00 USD
Availability: InStock

Rumah > Produk > Compact Pressure Sensor >

High Performance Compact Water Pressure Sensor With I2C Output

oem pressure sensor

precision pressure sensor

Water Heater Compact Pressure Sensor

Tempat asal:

Cina

Nama merek:

WNK

Sertifikasi:

CE&UL

Nomor model:

WNK80MA

Hubungi kami

Permintaan Penawaran

High Performance Compact Water Pressure Sensor With I2C Output

Product Details

Keluaran:

24VDC/12VDC/5VDC/3.3V

Kisaran tekanan:

0~15MPa

Media terukur:

Cair, gas dan uap

Sambungan Listrik:

Packard, M12, DIN43650, Kabel

Bahan perumahan:

Alunimum/Kuningan/SST 304

Kata-kata kunci:

Sensor Tekanan

tingkat IP:

IP65

Koneksi proses:

G1/2, G1/4, M2x1.5NPT1/4, kustomisasi

Menyoroti:

oem pressure sensor

precision pressure sensor

Water Heater Compact Pressure Sensor

Payment & Shipping Terms

Kuantitas min Order

1 buah

Kemasan rincian

Kemasan Standar atau sesuai kebutuhan Anda

Waktu pengiriman

3-5 hari

Syarat-syarat pembayaran

T/T, Paypal, West Union

Menyediakan kemampuan

1000

Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS

Dapatkan Harga Terbaik

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

Dapatkan Harga Terbaik

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

Dapatkan Harga Terbaik

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

Water heater application pressure sensor/transducer I2C output

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.

With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

Product Description

Applicable media	Liquid, gas and steam
Pressure range00	0-15Mpa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure and sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply	24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)	0.5%FS-1%FS
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection	G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material	304 stainless steel(316SS for inner core)
Protection	IP65

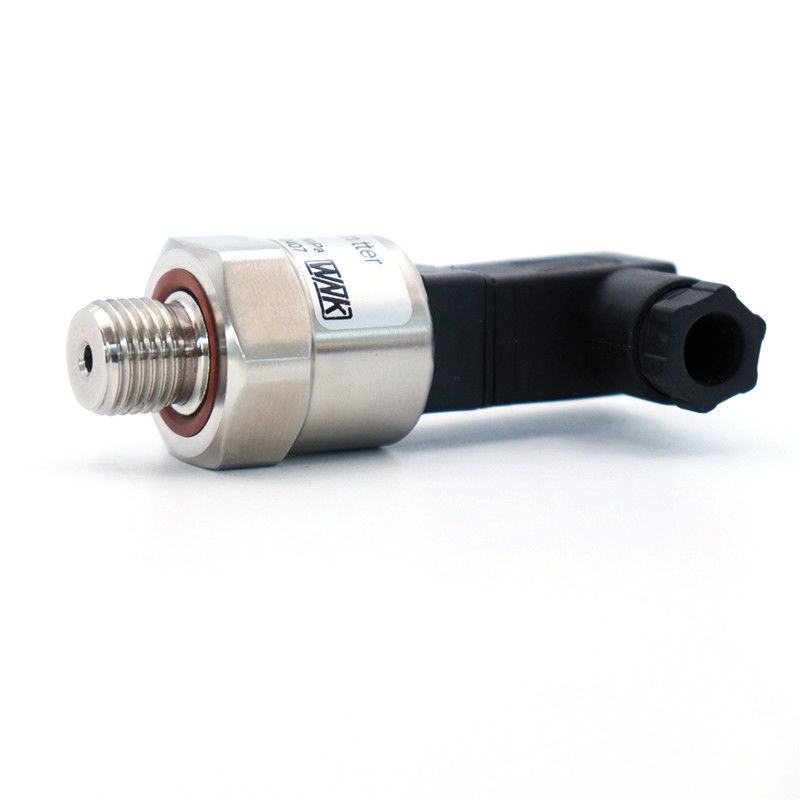

High Performance Compact Water Pressure Sensor With I2C Output 0

Application in water heater:

A sensor is an instrument that can sense the water temperature and water level, and transform the price of the water temperature and pressure sensor into a changed electrical signal. In the history of the development of solar water heaters, the water temperature and water level sensor has always played a pivotal role.

The intelligence and humanity of the water heater are inseparable from the water temperature and water level sensor. It is the guarantee for the intelligent control of the entire water heater. Water temperature and water level sensors from scratch, from simple to complex, from short to long life, are inseparable from the efforts of solar energy professionals.

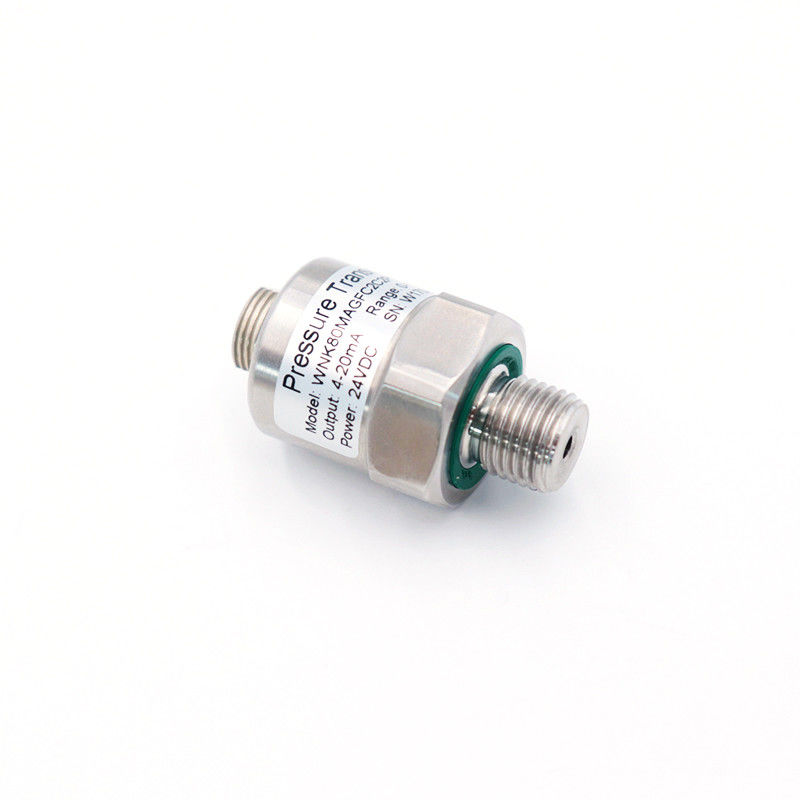

High Performance Compact Water Pressure Sensor With I2C Output 2

Product display:

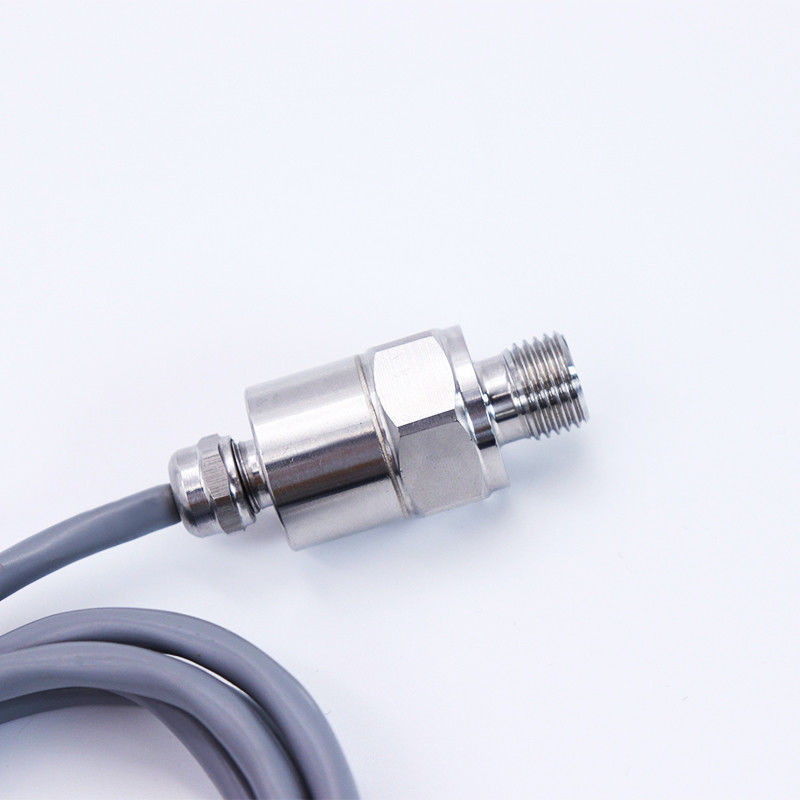

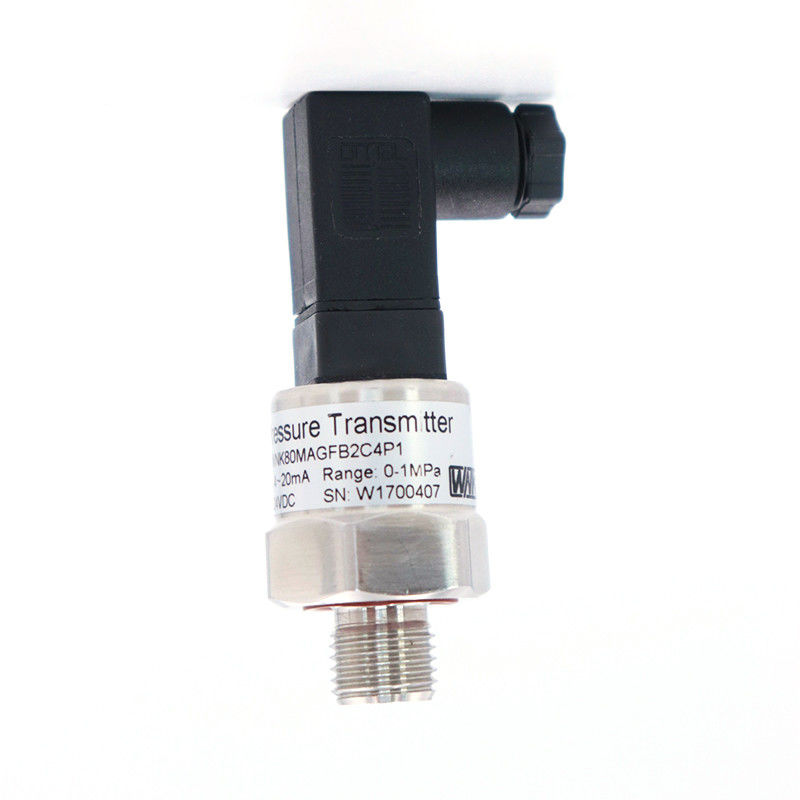

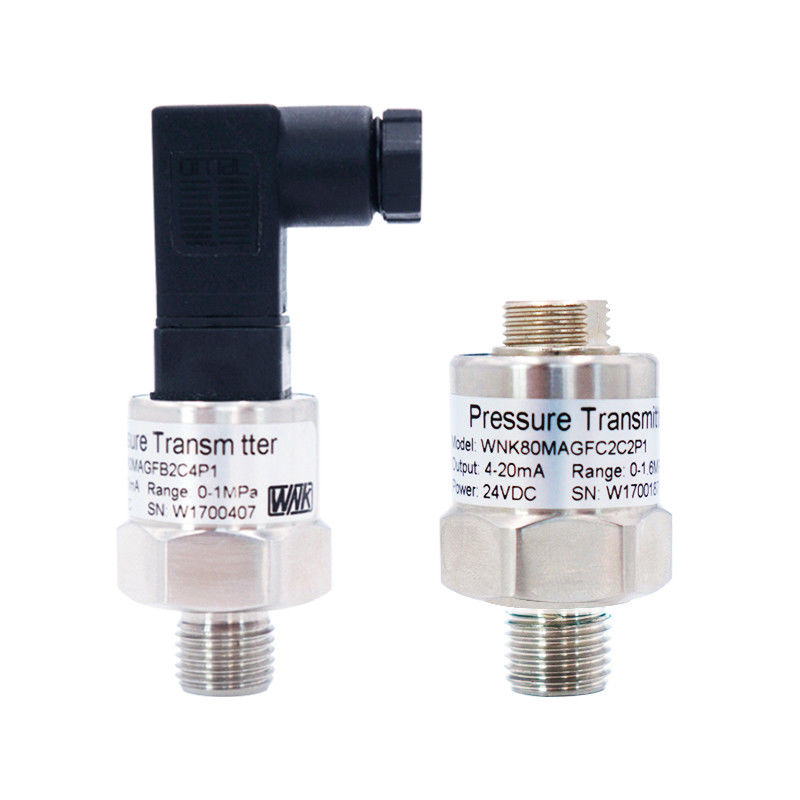

High Performance Compact Water Pressure Sensor With I2C Output 4

Company introduction:

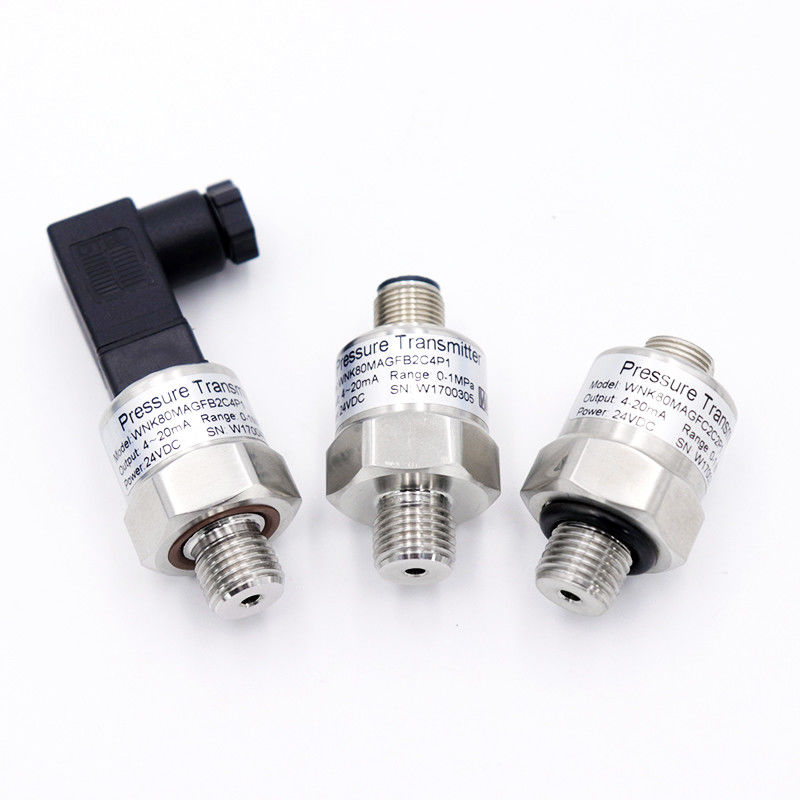

High Performance Compact Water Pressure Sensor With I2C Output 5

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
