Name: Capacitive Ceramic Compact Pressure Sensor For Water Heaters And Gas Stoves
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA-2
Price: 21.00 USD
Availability: InStock

Rumah > Produk > Compact Pressure Sensor >

Capacitive Ceramic Compact Pressure Sensor For Water Heaters And Gas Stoves

oem pressure sensor

precision pressure sensor

Compact Pressure Sensor For Water Heaters

Tempat asal:

HEFEI, CINA

Nama merek:

WNK

Sertifikasi:

CE, SGS, ISO9001

Nomor model:

WNK80MA-2

Hubungi kami

Permintaan Penawaran

Capacitive Ceramic Compact Pressure Sensor For Water Heaters And Gas Stoves

Product Details

Tekanan:

0-5MPA

Ketepatan:

0,5%

Sedang:

gas, air, cairan, uap

Perlindungan Kekayaan Intelektual:

IP67

Jenis tekanan:

Pengukur, Mutlak, Vakum

Catu Daya:

5VDC 12-30V

Suhu Kerja:

-20C - 70C

Menyoroti:

oem pressure sensor

precision pressure sensor

Compact Pressure Sensor For Water Heaters

Payment & Shipping Terms

Kuantitas min Order

5 potong

Harga

negotiable

Kemasan rincian

Pengepakan Layak Laut atau Pengepakan Layak Udara

Waktu pengiriman

7-10 hari kerja

Syarat-syarat pembayaran

T/T, Western Union, MoneyGram

Menyediakan kemampuan

5000 buah per bulan

Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS

Dapatkan Harga Terbaik

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

Dapatkan Harga Terbaik

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

Dapatkan Harga Terbaik

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

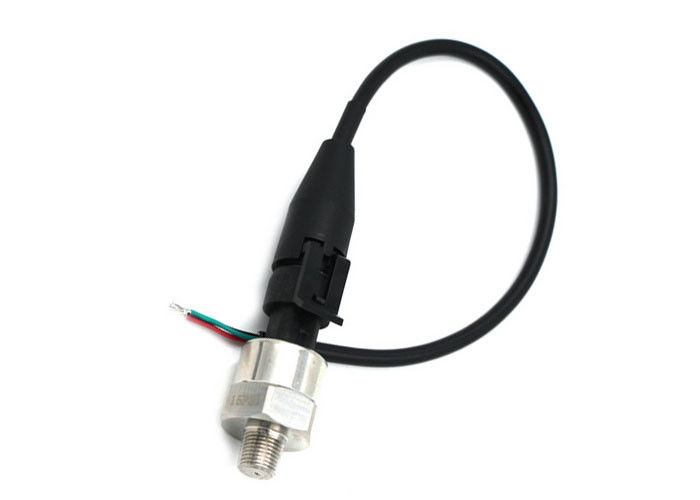

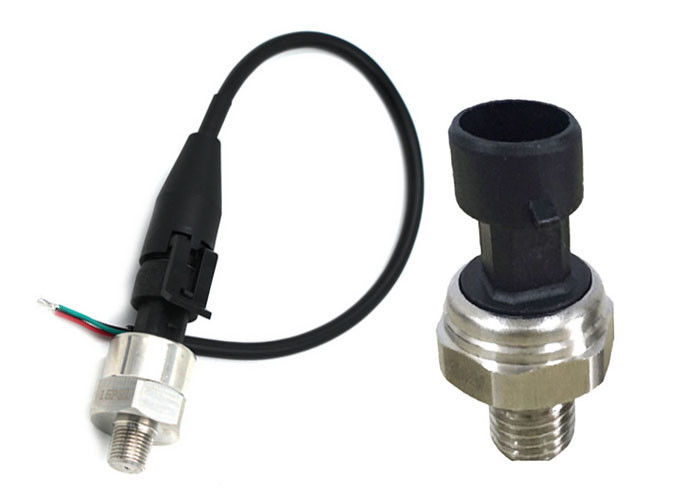

Capacitive Ceramic Compact Pressure Sensor For Water Heaters And Gas Stoves

Specification:

Working voltage: 5V 8-32 VDC
Working temperature: -40 ~ 125 ° C
Output signal: voltage type, 0, 5,--4 5 v standard signal. Current mode, 4-20 ma standard signal output
Precision: 0 25% and 0 5%, 1% (0-80. C)
Response time: < 1 ms
Temperature drift: < + 0 01% FS /. c
Linearity, hysteresis, repeatability: < 0.1%
Stability: better than 015% FS/year
The shell material: stainless steel, aluminum, alloy, or according to customer needs.
NPT a 1/8, NPT thread interface: a quarter or the user can customize
Electrical connections: standard Packa rd Met ri - Pack connection

Features

• Dry ceramic capacitive pressure sensor;
• Rugged ceramic capacitor sensitive diaphragm;

•Excellent resistance to corrosion and abrasion resistance;
• Adapt to pollution and corrosive environments;
• Flat large round diaphragm, easy to install;
• Rapid response, no hysteresis;
• Wide operating temperature range;
• Sensor-specific signal conditioning;
• 0.5 ... 4.5V voltage output or I2C digital output, 4-20mA output;
• Accurate, stable and reliable;

Application:

For oil,fuel,diesel,gas,water or air pressure.Can be used in oil tank,gas tank,diesel tank etc.

Capacitive Ceramic Compact Pressure Sensor For Water Heaters And Gas Stoves 0
