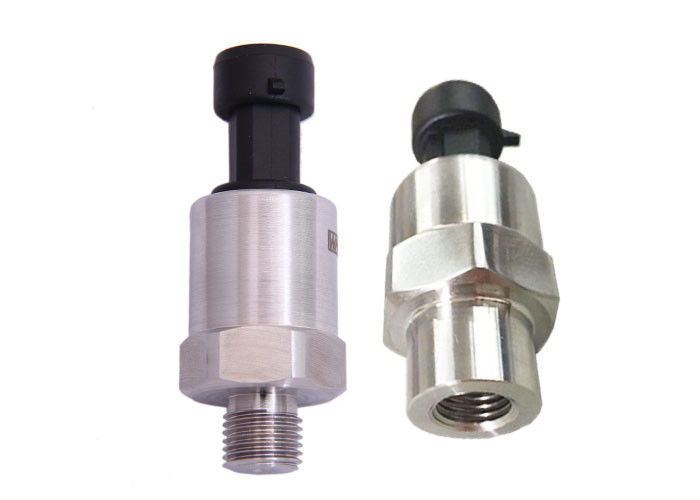

I2C Compact Oil Pressure Sensor -40C~125C Working Temperature For Diesel Tank

electronic pressure sensor

precision pressure sensor

I2C Compact Oil Pressure Sensor

Tempat asal:

HEFEI, CINA

Nama merek:

WNK

Sertifikasi:

CE, SGS, ISO9001

Nomor model:

WNK80MA

Hubungi kami

Permintaan Penawaran

I2C Compact Oil Pressure Sensor -40C~125C Working Temperature For Diesel Tank

Product Details

Tekanan:

-100Kpa - 5Mpa

Catu Daya:

5V, 12-30V

Sinyal:

0,5-4,5V, 4-20mA

Perlindungan:

IP67 IP65

Suhu Kerja:

-40C~125C

Ketepatan:

0,5% 1,0%

Waktu respons::

≤2,0 mdtk

Menyoroti:

electronic pressure sensor

precision pressure sensor

I2C Compact Oil Pressure Sensor

Payment & Shipping Terms

Kuantitas min Order

5 potong

Harga

negotiable

Kemasan rincian

Pengepakan Layak Laut atau Pengepakan Layak Udara

Waktu pengiriman

7-10 hari kerja

Syarat-syarat pembayaran

T/T, Western Union, MoneyGram

Menyediakan kemampuan

5000 buah per bulan

Explosion Proof Compact Pressure Sensor With 4~20mA And High Accuracy 0.2%FS

Dapatkan Harga Terbaik

Ceramic Capacitive 15MPa IP65 I2C Water Pressure Sensor

Dapatkan Harga Terbaik

WNK 0.5-4.5V 4 - 20ma Pressure Transmitter 150Psi IP65

Dapatkan Harga Terbaik

WNK 0.5-4.5V 4-20ma Smart Absolute Gauge Pressure Sensor For Water Air Oil

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

Low cost 4~20mA, 0.5-4.5V I2C Compact oil Pressure Sensor For Diesel, Tank

Name: I2C Compact Oil Pressure Sensor -40C~125C Working Temperature For Diesel Tank
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Price: 21.00 USD
Availability: InStock

Description
WNK80MA is a series of high performance with compact size and the function of over-voltage and over-current protection and the full temperature linear temperature compensation of this product which widely used in engine pipe of vehicle and ship, central air conditioner and freezing device, water treatment engineering, building water supply, industrial process detection and control, hydraulic pneumatic control engineering and other fields.

Features:

Easy removal, carbon steel connection more firmly.

Stainless steel is durable, sealed waterproof line, imported chips.

Wiring: red +, black -, yellow output

Specification:

Applicable media	Liquid, Gas
Pressure range	0-7kPa~350bar
Pressure measurment	Gauge Pressure, Absolute pressure, Sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)	0.5%F.S.(Typical)
Power supply	24VDC/12VDC/5VDC/3.3V
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
power(electrical) connect	Parkard, M12, DIN43650, Cable outlet
Mechanical connection	G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP65
