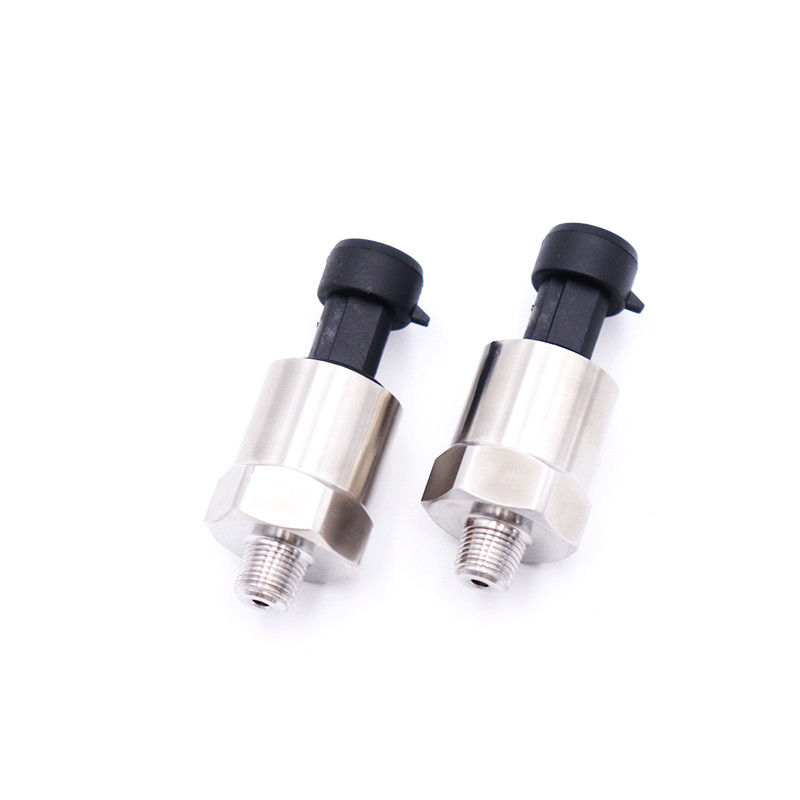

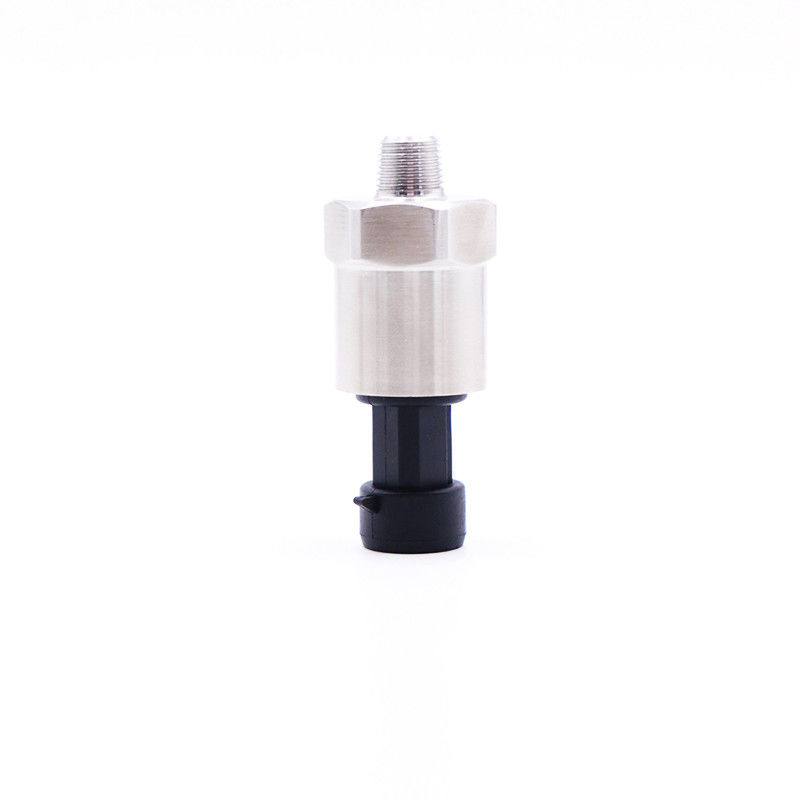

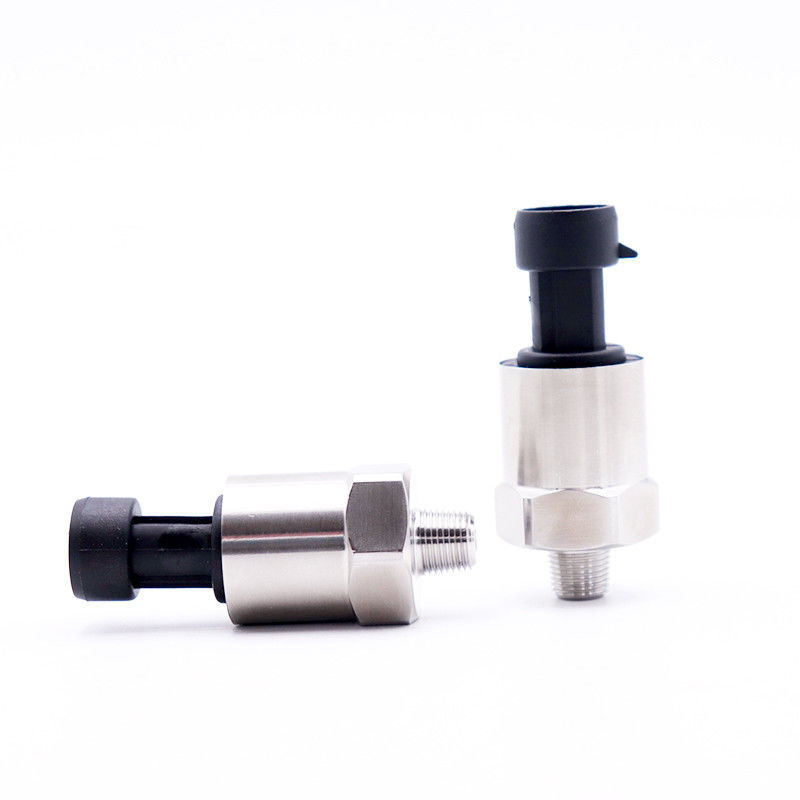

Name: 600bar Anti Corrosion Oil Vacuum Pressure Transducer Sensor With 4-20mA Output
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK81MA
Price: 25.00 USD
Availability: InStock

Rumah > Produk > Water Pressure Sensor >

600bar Anti Corrosion Oil Vacuum Pressure Transducer Sensor With 4-20mA Output

IP67 vacuum pressure sensor

IP67 vacuum pressure transducer

600bar Pressure Transducer Sensor

Tempat asal:

Nama merek:

WNK

Sertifikasi:

CE, ISO9001:2015

Nomor model:

WNK81MA

Hubungi kami

Permintaan Penawaran

Product Details

Keluaran:

4~20mA, I2C, SPI, 0.2-2.9V, 0.5-4.5V ,0-5V,

Kisaran tekanan:

0-600bar

Ketepatan:

0,5%FS, 1%FS, 2%FS

Suhu Operasi:

-40~125℃

Perlindungan Masuknya:

IP67

Waktu Respons:

≥1ms

OEM:

OEM, ODM selamat datang

Kelebihan muatan:

2,5x FS

Tekanan bukti:

3x FS

Bahan perumahan:

SS304, SS316

Menyoroti:

IP67 vacuum pressure sensor

IP67 vacuum pressure transducer

600bar Pressure Transducer Sensor

Payment & Shipping Terms

Kuantitas min Order

5 buah

Harga

negotiable

Kemasan rincian

Pengepakan Layak Laut atau Pengepakan Layak Udara

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

T/T, Western Union, L/C

Menyediakan kemampuan

5000PCS per bulan

Transmitter tekanan industri dengan catu daya 5VDC dan bahan rumah tahan korosi SS304

Dapatkan Harga Terbaik

Diffused Silicon Pressure Sensor 4-20ma 5V 24V Robust Transmitter yang dirancang untuk kinerja pemantauan tekanan jangka panjang

Dapatkan Harga Terbaik

100 Psi WNK Vacuum Pressure Transmitter 4 - 20ma 0 - 10V

Dapatkan Harga Terbaik

I2C 4-20MA 0.5-4.5V Diffused Silicon Cpmpact Pressure Sensor For Corrosive Media

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

Vacuum Pressure Transducer Sensor With 4-20mA Output

Product Description

Input
Pressure Type	Gauge Pressure , Absolute Pressure, Sealing Pressure
Pressure Range	-100Kpa - 60Mpa
Accuracy	0.2%, 0.5%
Power Supply	5VDC, 12-32VDC
Measuring Media	Gas, Steam, Liquid, Oil
Output
Analog	4-20mA, 0.5-4.5V / 1-5V / 0-5V
Digital	I²C, SPI
Operation Condition and Temperature
Compensation Temperature	-20...75℃
Storage Temperature	-45 ... 85℃
Ambient Temperature	-45 ... 85℃
Medium Temperature	-40 ... 125℃
Material and Protection
Ingress Protection	IP65, IP67
Housing Material	304SS, 316L

>>> Applications

- Automobile, Compressor and Refrigeration Industry

- Engineering machinery

- Pressure control and monitor

- Water treatment system

- Hydraulic and Pneumatics

- HAVC and BAS Control

- Pump, fitness equipment, household appliances

- Factory Automation

- Fluid Control and Instrumentation Systems
