Name: 100 Psi WNK Vacuum Pressure Transmitter 4 - 20ma 0 - 10V
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Price: 25.00 USD
Availability: InStock

Rumah > Produk > Water Pressure Sensor >

100 Psi WNK Vacuum Pressure Transmitter 4 - 20ma 0 - 10V

IP65 Vacuum Pressure Transmitter

100 Psi 4 - 20ma Pressure Sensor

WNK 4-20ma Vacuum Pressure Transmitter

Tempat asal:

Cina

Nama merek:

WNK

Sertifikasi:

CE&UL

Nomor model:

WNK80MA

Hubungi kami

Permintaan Penawaran

100 Psi WNK Vacuum Pressure Transmitter 4 - 20ma 0 - 10V

Product Details

Keluaran:

24VDC/12VDC/5VDC/3.3V

Kisaran tekanan:

0~15MPa

Media terukur:

Cair, gas dan uap

Sambungan Listrik:

Packard, M12, DIN43650, Kabel

Bahan perumahan:

Alunimum/Kuningan/SST 304

Kata-kata kunci:

Sensor Tekanan

tingkat IP:

IP65

Koneksi proses:

G1/2, G1/4, M2x1.5NPT1/4, kustomisasi

Menyoroti:

IP65 Vacuum Pressure Transmitter

100 Psi 4 - 20ma Pressure Sensor

WNK 4-20ma Vacuum Pressure Transmitter

Payment & Shipping Terms

Kuantitas min Order

1 buah

Kemasan rincian

Kemasan Standar atau sesuai kebutuhan Anda

Waktu pengiriman

3-5 hari

Syarat-syarat pembayaran

T/T, Paypal, West Union

Menyediakan kemampuan

1000

Transmitter tekanan industri dengan catu daya 5VDC dan bahan rumah tahan korosi SS304

Dapatkan Harga Terbaik

Diffused Silicon Pressure Sensor 4-20ma 5V 24V Robust Transmitter yang dirancang untuk kinerja pemantauan tekanan jangka panjang

Dapatkan Harga Terbaik

100 Psi WNK Vacuum Pressure Transmitter 4 - 20ma 0 - 10V

Dapatkan Harga Terbaik

I2C 4-20MA 0.5-4.5V Diffused Silicon Cpmpact Pressure Sensor For Corrosive Media

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

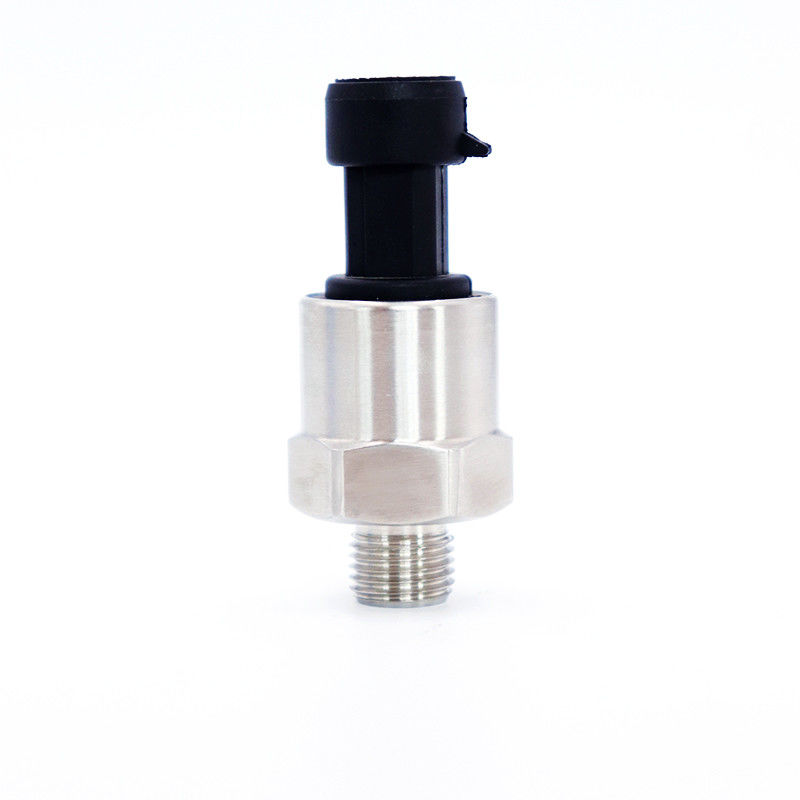

WNK 4-20ma 0-10V Vacuum Pressure Transmitter 100 Psi Pressure Sensor
4-20ma 0-10V 100 psi Pressure Sensor

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.

Applicable media	Liquid, gas and steam
Pressure range	0-6MPa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, absolute pressure and sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply	24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)

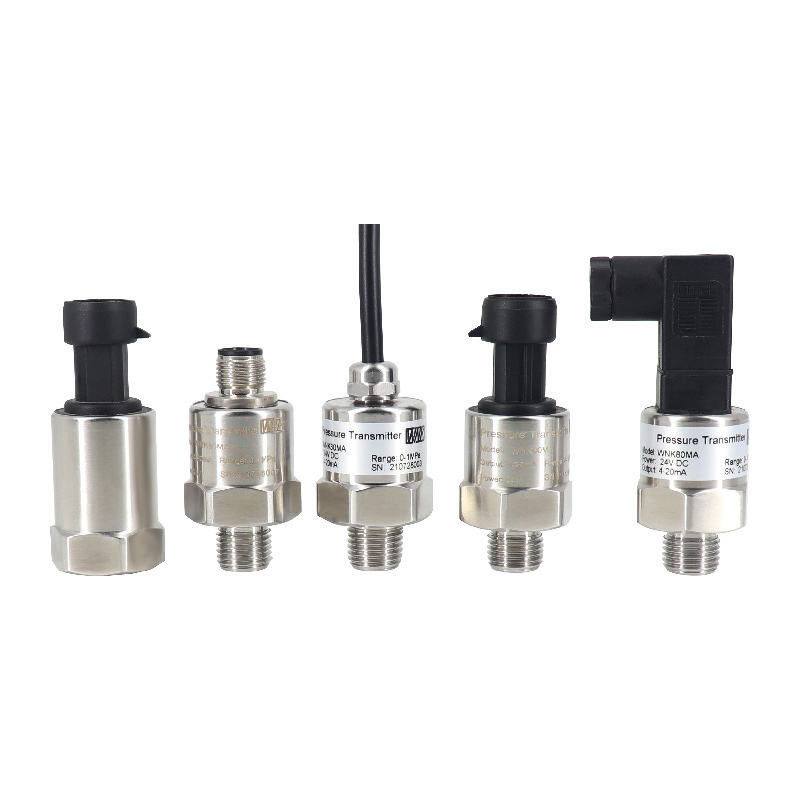

Electrical connection	Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection	G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material	304 stainless steel(316SS for inner core)
Protection	IP65

Product Application

What role does the sensor play in the air compressor?

The compressor (compressor), as the heart of the refrigeration system, is a driven fluid machine that lifts low-pressure gas into high-pressure gas. The low-temperature and low-pressure refrigerant gas sucked from the suction pipe is compressed by the rotation of the motor to discharge the high-temperature and high-pressure refrigerant gas to the exhaust pipe to provide power for the refrigeration cycle. Thus, a refrigeration cycle of compression → condensation (exotherm) → expansion → evaporation (heat absorption) is realized. The compressor is divided into piston compressor, screw compressor, centrifugal compressor, linear compressor and so on.

During the work, the actual responsibility of the compressor is to increase the pressure and increase the state of the suction pressure to the state of the exhaust pressure. Compression ratio is a technical expression of pressure difference, which means the absolute pressure on the high pressure side divided by the absolute pressure on the low pressure side. The compression ratio must be calculated using an absolute pressure value. In order to avoid making the calculated value of the compression ratio negative, the absolute pressure must be used instead of the gauge pressure when calculating the pressure ratio. It makes sense to use an absolute pressure value to make the compression ratio calculation a positive value.

Large central air conditioning, refrigeration equipment, in order to achieve automatic control of the machine, the lowest energy consumption ratio, the operation of the equipment needs to be fully monitored, such as temperature, refrigeration medium pressure.

The pressure sensor mainly measures the pressure of the refrigerating medium online on the refrigerating equipment, and transmits the pressure to the control system of the main machine in the form of electrical signals, so as to reflect the compression operation state of the equipment, to realize the automatic control of the product, and to reflect the consumption of the equipment as soon as possible.
