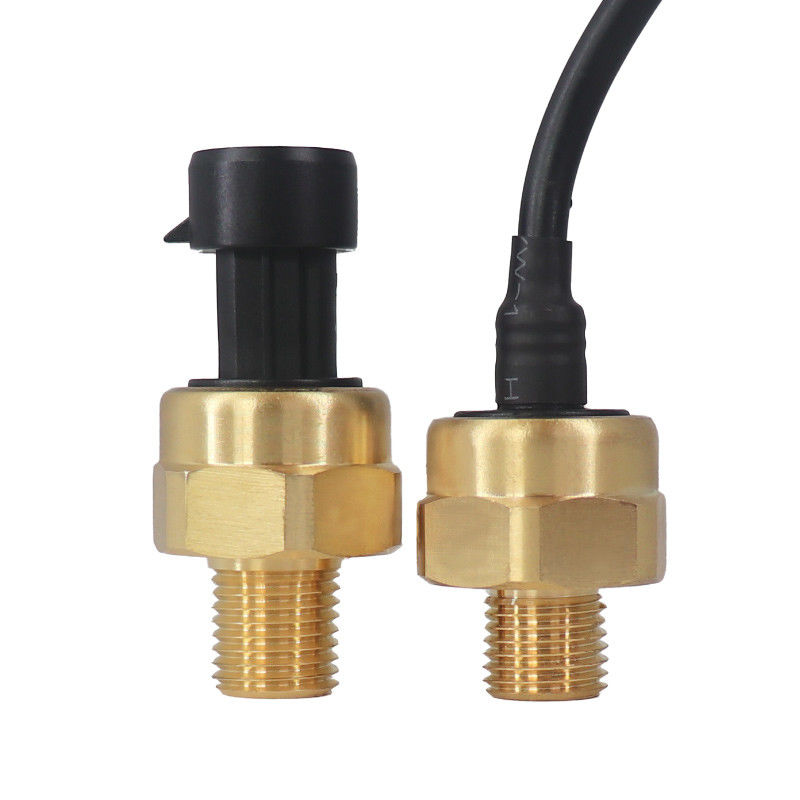

Name: 0.5-4.5v 0-2MPa Brass Pressure Sensor , Gas Pressure Transmitter
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK83MA
Price: 25.00 USD
Availability: InStock

Rumah > Produk > Water Pressure Sensor >

0.5-4.5v 0-2MPa Brass Pressure Sensor , Gas Pressure Transmitter

4.5v Brass Pressure Sensor

1MPa gas pressure transmitter

WNK gas pressure transmitter

Tempat asal:

Tiongkok (Daratan)

Nama merek:

WNK

Nomor model:

WNK83MA

Hubungi kami

Permintaan Penawaran

Product Details

Ketepatan:

Media terukur:

Cair, gas dan uap

Kisaran tekanan:

0-2000kPa

Sinyal Keluaran:

0.5-4.5 VDC

Catu Daya:

4.75-5.25 VDC

Bahan:

Kuningan

Koneksi proses:

G1/4,1/4NPT

Sambungan Listrik:

Outlet Packard/ Cable

Kata kunci:

Sensor Tekanan Air/Sensor Tekanan Kuningan

Menyoroti:

4.5v Brass Pressure Sensor

1MPa gas pressure transmitter

WNK gas pressure transmitter

Payment & Shipping Terms

Kuantitas min Order

1 buah

Harga

negotiable

Kemasan rincian

Kotak karton standar ekspor

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

5000+Potongan+per Bulan

Transmitter tekanan industri dengan catu daya 5VDC dan bahan rumah tahan korosi SS304

Dapatkan Harga Terbaik

Diffused Silicon Pressure Sensor 4-20ma 5V 24V Robust Transmitter yang dirancang untuk kinerja pemantauan tekanan jangka panjang

Dapatkan Harga Terbaik

100 Psi WNK Vacuum Pressure Transmitter 4 - 20ma 0 - 10V

Dapatkan Harga Terbaik

I2C 4-20MA 0.5-4.5V Diffused Silicon Cpmpact Pressure Sensor For Corrosive Media

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

10bar 20bar Brass Pressure Sensor For Liquid Gas

0.5-4.5v 0-2MPa Brass Pressure Sensor , Gas Pressure Transmitter 0

Applicable media	Liquid, gas and steam
Pressure range	0-1MPa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, Sealing pressure
Output	0.5-4.5V
Power supply	4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Compensation temperature	-20~70ºC
Ambient temperature	-40~110ºC
Working temperature	-40~110ºC
Temperature drift(zero)	±0.15% F.S. (-20~70ºC)
Temperature drift(full range)	±0.15% F.S. (-20~70ºC)
Electrical connection	Parkard
Mechanical connection	1/4NPT
Housing material	Brass

Product Show

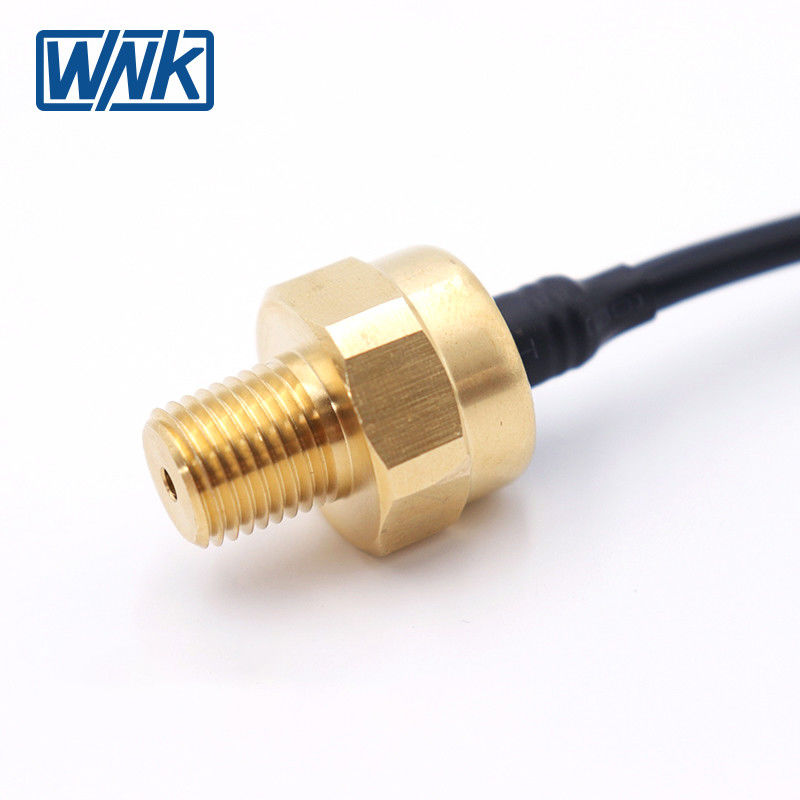

0.5-4.5v 0-2MPa Brass Pressure Sensor , Gas Pressure Transmitter 1

0.5-4.5v 0-2MPa Brass Pressure Sensor , Gas Pressure Transmitter 2

0.5-4.5v 0-2MPa Brass Pressure Sensor , Gas Pressure Transmitter 5

0.5-4.5v 0-2MPa Brass Pressure Sensor , Gas Pressure Transmitter 6

0.5-4.5v 0-2MPa Brass Pressure Sensor , Gas Pressure Transmitter 7
