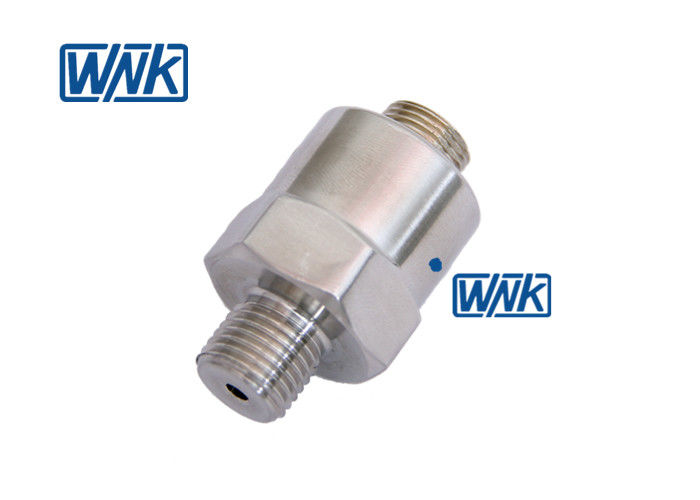

Name: 4-20mA 0.5-4.5V 0-60bar Pressure Transducer Sensor For Liquid Gas Steam
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK81MA
Price: 25.00 USD
Availability: InStock

Rumah > Produk > Water Pressure Sensor >

4-20mA 0.5-4.5V 0-60bar Pressure Transducer Sensor For Liquid Gas Steam

600bar steam pressure transducer

600bar steam pressure sensor

OEM steam pressure transmitter

Tempat asal:

Nama merek:

WNK

Sertifikasi:

CE, ISO9001:2015

Nomor model:

WNK81MA

Hubungi kami

Permintaan Penawaran

Product Details

Keluaran:

4~20mA, I2C, SPI, 0.2-2.9V, 0.5-4.5V ,0-5V,

Kisaran tekanan:

0-600bar

Ketepatan:

0,5%FS, 1%FS, 2%FS

Suhu Operasi:

-40~125℃

Perlindungan Masuknya:

IP67

Waktu Respons:

≥1ms

OEM:

OEM, ODM selamat datang

Kelebihan muatan:

2,5x FS

Tekanan bukti:

3x FS

Bahan perumahan:

SS304, SS316

Menyoroti:

600bar steam pressure transducer

600bar steam pressure sensor

OEM steam pressure transmitter

Payment & Shipping Terms

Kuantitas min Order

5 buah

Harga

negotiable

Kemasan rincian

Pengepakan Layak Laut atau Pengepakan Layak Udara

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

T/T, Western Union, L/C

Menyediakan kemampuan

5000PCS per bulan

Transmitter tekanan industri dengan catu daya 5VDC dan bahan rumah tahan korosi SS304

Dapatkan Harga Terbaik

Diffused Silicon Pressure Sensor 4-20ma 5V 24V Robust Transmitter yang dirancang untuk kinerja pemantauan tekanan jangka panjang

Dapatkan Harga Terbaik

100 Psi WNK Vacuum Pressure Transmitter 4 - 20ma 0 - 10V

Dapatkan Harga Terbaik

I2C 4-20MA 0.5-4.5V Diffused Silicon Cpmpact Pressure Sensor For Corrosive Media

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

WNK has introduced the new robust, small size and programmable pressure sensors of WNK80MA & WNK811 series, suitable for domestic drinking water system, air-conditioning, machinery andrefrigeration plant engineering, hydraulic and pneumatic systems, process industries and environmental technology.

WNK80MA and WNK811 have various outputs including 4~20mA, I2C, 0~5V, 0.5~4.5V and etc. And OEM, ODM & customization service are available for this product.

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media	Liquid, Gas
Pressure range	0~60bar
Pressure measurment	Gauge Pressure, Sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)	0.5%F.S.(Typical)
Power supply	24VDC/12VDC/5VDC/3.3V
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
power(electrical) connect	Parkard, M12, DIN43650, Cable outlet
Mechanical connection	G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP65

4-20mA 0.5-4.5V 0-60bar Pressure Transducer Sensor For Liquid Gas Steam 0

Technical Parameters

4-20mA 0.5-4.5V 0-60bar Pressure Transducer Sensor For Liquid Gas Steam 1

>> Dimensions

4-20mA 0.5-4.5V 0-60bar Pressure Transducer Sensor For Liquid Gas Steam 2
