0.5-4.5VDC Barometric Hydraulic Brass Pressure Sensor Transmitter

Barometric hydraulic pressure transmitter

Brass hydraulic pressure sensor

Barometric hydraulic pressure transducer

Tempat asal:

Tiongkok (Daratan)

Nama merek:

WNK

Nomor model:

WNK83MA

Hubungi kami

Permintaan Penawaran

Product Details

Ketepatan:

Media terukur:

Cair, gas dan uap

Kisaran tekanan:

0-2000kPa

Sinyal Keluaran:

0.5-4.5 VDC

Catu Daya:

4.75-5.25 VDC

Bahan:

Kuningan

Koneksi proses:

G1/4,1/4NPT

Sambungan Listrik:

Outlet Packard/ Cable

Menyoroti:

Barometric hydraulic pressure transmitter

Brass hydraulic pressure sensor

Barometric hydraulic pressure transducer

Payment & Shipping Terms

Kuantitas min Order

1 buah

Harga

negotiable

Kemasan rincian

Kotak karton standar ekspor

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

5000+Potongan+per Bulan

Transmitter tekanan industri dengan catu daya 5VDC dan bahan rumah tahan korosi SS304

Dapatkan Harga Terbaik

Diffused Silicon Pressure Sensor 4-20ma 5V 24V Robust Transmitter yang dirancang untuk kinerja pemantauan tekanan jangka panjang

Dapatkan Harga Terbaik

100 Psi WNK Vacuum Pressure Transmitter 4 - 20ma 0 - 10V

Dapatkan Harga Terbaik

I2C 4-20MA 0.5-4.5V Diffused Silicon Cpmpact Pressure Sensor For Corrosive Media

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

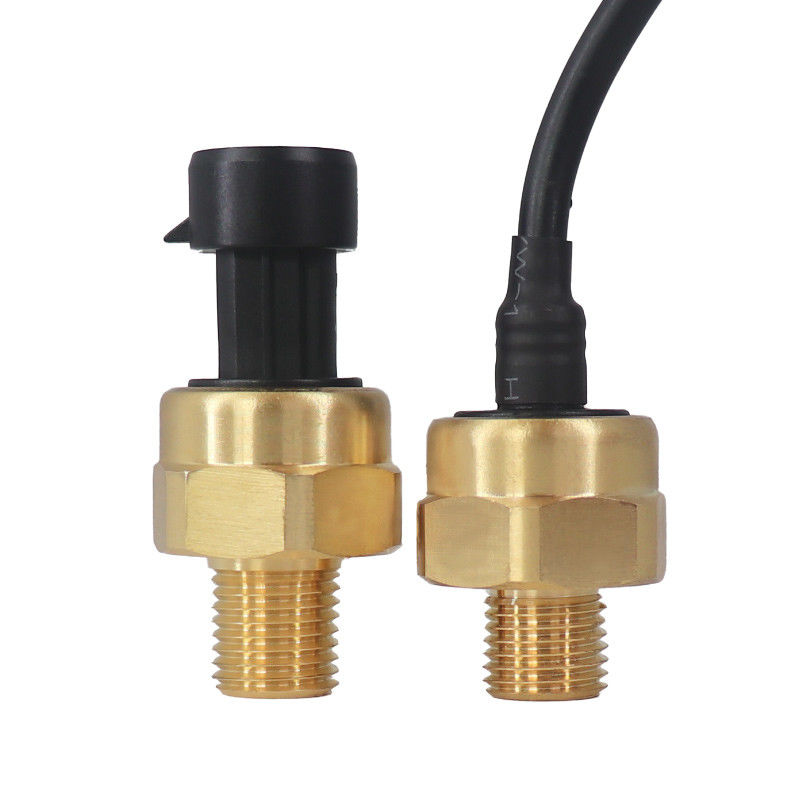

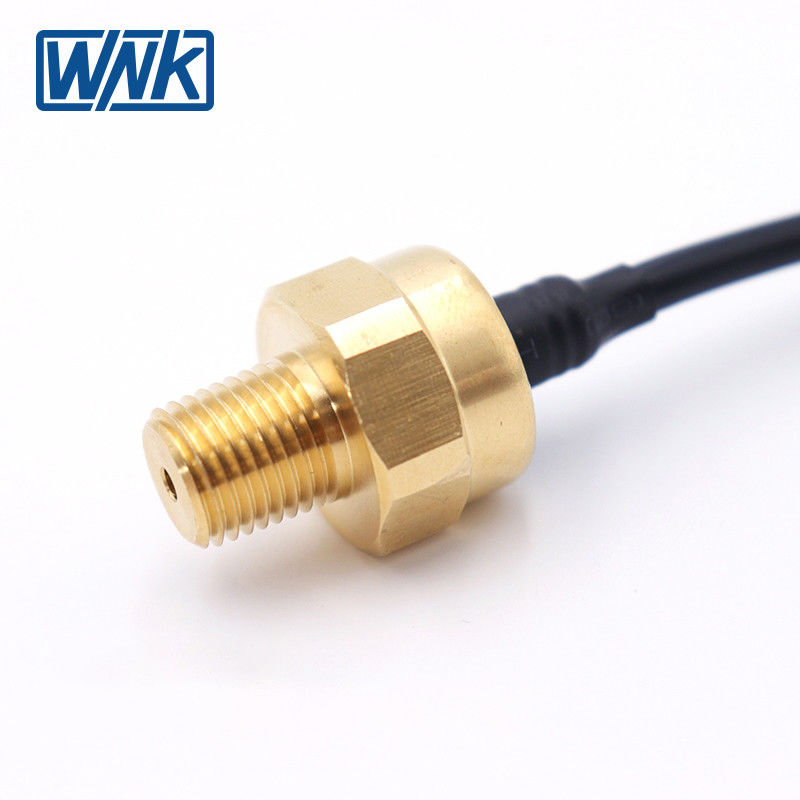

0.5-4.5VDC Barometric Hydraulic Brass Pressure Sensor Transmitter For Arduino

Name: 0.5-4.5VDC Barometric Hydraulic Brass Pressure Sensor Transmitter
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK83MA
Price: 25.00 USD
Availability: InStock

Mini brass pressure sensor,range 0-20bar,temp range -20 to 70ºC,output 0.5-4.5V,suitable for gauge pressure ,sealing pressure.

This product is in stock, please place an order directly.

If you have any other questions, please feel free to contact us.

Applicable media	Liquid, gas, steam
Pressure range	0-10bar, 0-20bar
Cell	Ceramic capacitive pressure sensor
Pressure measurement	Gauge pressure, sealing pressure, absolute pressure
Output	0.5-4.5VDC
Power supply	4.75-5.25VDC
Accuracy(linearity, hysteresis and repeatability)	1%F.S.
Work temperature	-20~70ºC
Ambient temp	-40~110ºC
Temperature drift(zero)	±0.15% F.S. (-20~70ºC)
Temperature drift(full range)	±0.15% F.S. (-20~70ºC)
Electrical connection	Cable outlet/Packard
Mechanical connection	1/4NPT/G1/4
Housing material	Brass

Mechanical Dimension:

0.5-4.5VDC Barometric Hydraulic Brass Pressure Sensor Transmitter 0

0.5-4.5VDC Barometric Hydraulic Brass Pressure Sensor Transmitter 2
