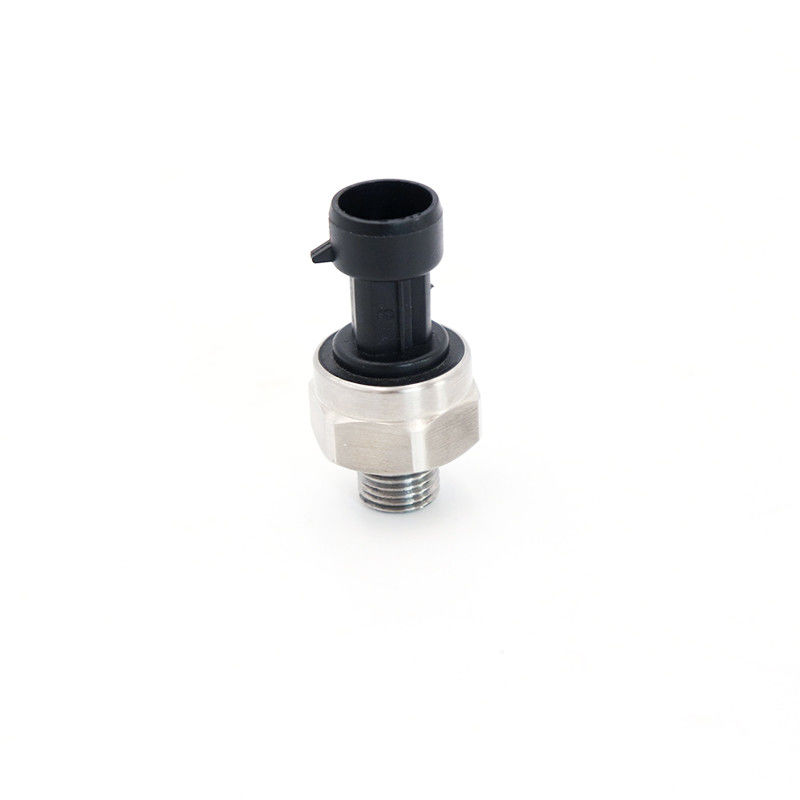

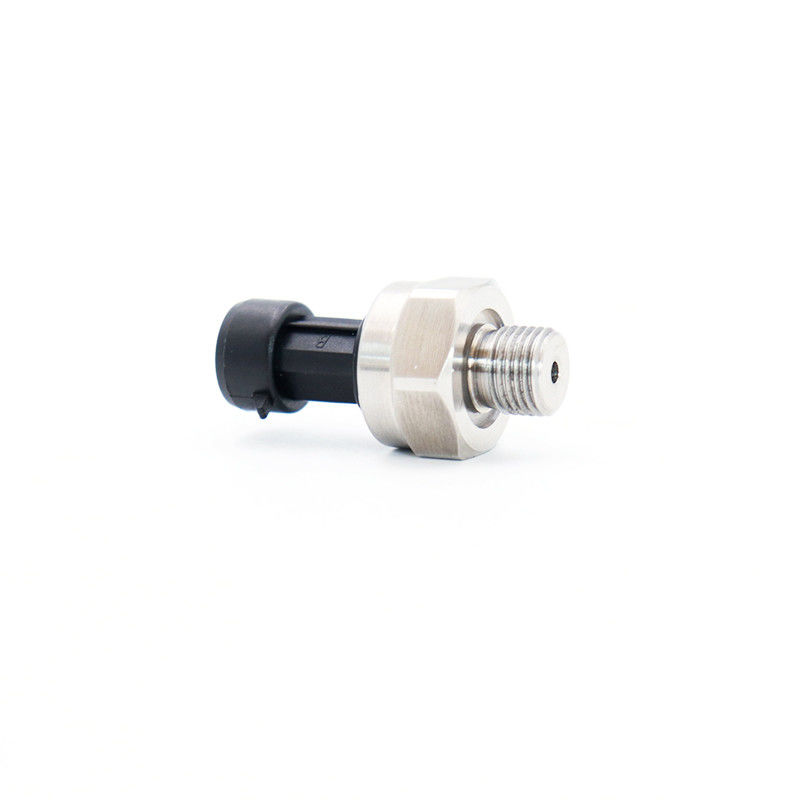

4.5V Stainless Steel 10bar Ceramic Pressure Sensor

4.5V Stainless Steel 10bar Ceramic Pressure Sensor

10bar Ceramic Pressure Sensor

4.5V Ceramic Pressure Sensor

1/4 NPT Ceramic Pressure Sensor

Tempat asal:

Cina

Nama merek:

WNK

Sertifikasi:

CE

Nomor model:

WNK84mA

Hubungi kami
Permintaan Penawaran
Product Details
Media terukur:
Gas Cair dan Uap
Sinyal Keluaran:
0,5-4,5v
Suhu Sekitar:
-20-70c
Sambungan Listrik:
Packard/Mini Din43650/Outlet Kabel/M12*4P
Ketepatan:
1%FS
Kisaran tekanan:
0-1000kPa,1MPa,10bar
Catu Daya:
5V/12V/24V
Koneksi proses:
G1/4 Stopkontak kabel
Bahan:
Baja Tahan Karat
Menyoroti:

10bar Ceramic Pressure Sensor

,

4.5V Ceramic Pressure Sensor

,

1/4 NPT Ceramic Pressure Sensor

Payment & Shipping Terms
Kuantitas min Order
1 buah
Harga
negotiable
Kemasan rincian
Pengemasan karton netral atau sesuai kebutuhan Anda.
Waktu pengiriman
5-8 Hari Kerja
Syarat-syarat pembayaran
D/P, T/T, Western Union, Paypal
Menyediakan kemampuan
5000Potongan/Bulan
Product Description

Low Cost Stainless Steel Pressure Sensor Ceramic Pressure Sensor



Product Description

Applicable Media Liquid Gas
Pressure Range 0-10Bar 0-1000Kpa
Cell Ceramic Capacitive Pressure Sensor
Pressure Measurement Gauge Pressure Sealing Pressure
Output  0.5-4.5v
Power Supply 5V/12V/24V
Accuracy 1%FS
Working Temperature -20-70C
Ambient Temperature -40-110C
Temperature Drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature Drift(full range) ±0.15% F.S. (-20~70ºC)
Electrical Connection Cable outlet
Mechanical Connection 1/4 NPT
Housing Material Stainless Steel





Product Spec

4.5V Stainless Steel 10bar Ceramic Pressure Sensor 04.5V Stainless Steel 10bar Ceramic Pressure Sensor 1



Company Information

4.5V Stainless Steel 10bar Ceramic Pressure Sensor 2

FAQ



Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
