Name: WNK Submersible Hydrostatic Deep Well Water Level Sensor 4 - 20ma 0- 10V
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK8010-T1
Price: 417.00 USD
Availability: InStock

Rumah > Produk > Submersible Level Sensor >

WNK Submersible Hydrostatic Deep Well Water Level Sensor 4 - 20ma 0- 10V

WNK Submersible Well Water Level Sensor

0-10V Well Water Level Sensor

IP68 Well Water Level Sensor

Tempat asal:

HEFEI, CINA

Nama merek:

WNK

Sertifikasi:

CE, Rhos

Nomor model:

WNK8010-T1

Hubungi kami

Permintaan Penawaran

Product Details

Ketepatan:

0,25%, 0,5% , 1,0% FS

Keluaran:

4-20mA, 0-5V, 1-5V, kustomisasi

Rentang terukur:

0-0,5~200mH2O

Kelebihan Beban Maks:

150% Dari Rentang Sensor

Bahan perumahan:

Baja Tahan Karat

Kelas Perlindungan:

IP68

Menyoroti:

WNK Submersible Well Water Level Sensor

0-10V Well Water Level Sensor

IP68 Well Water Level Sensor

Payment & Shipping Terms

Kuantitas min Order

masing-masing 1

Harga

negotiable

Kemasan rincian

Kemasan Khusus, Kemasan Layak Laut, Layak Udara

Waktu pengiriman

5-7 hari kerja

Syarat-syarat pembayaran

Western Union, MoneyGram, T/T, PayPal

IP68 Stainless steel Dirty Water Submersible Level Sensor

Dapatkan Harga Terbaik

Video

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well

Dapatkan Harga Terbaik

Video

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485

Dapatkan Harga Terbaik

Video

20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

WNK Submersible 4-20ma 0-10V 0-200m Range Hydrostatic Deep Well Water Level Sensor

Product Description

Output	4-20mA, 0-5V, 1-5V, customization
Measured Range	0-0.5~200mH2O
Max overload	150% of sensor range
Applicable Media	Liquid, Water
Accuracy	≤ ±0.2%FS,
Long Term Stability	±0.25% FS/year
Housing Material	Stainless steel
Cable Material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Operating Temperature	-30~85℃
Compensation Temperature	-20~70℃
Protection Class	IP68

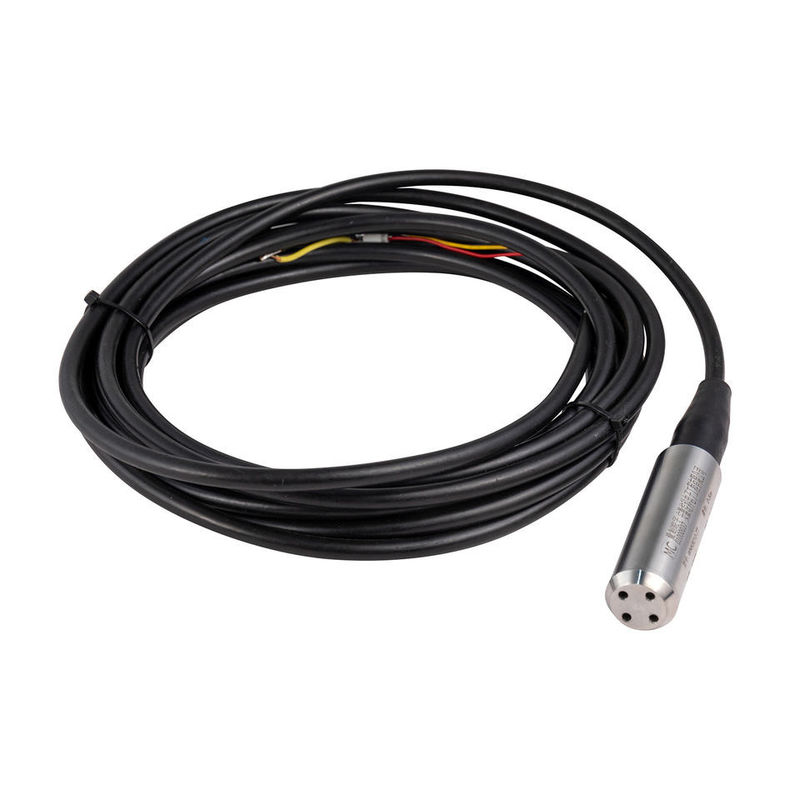

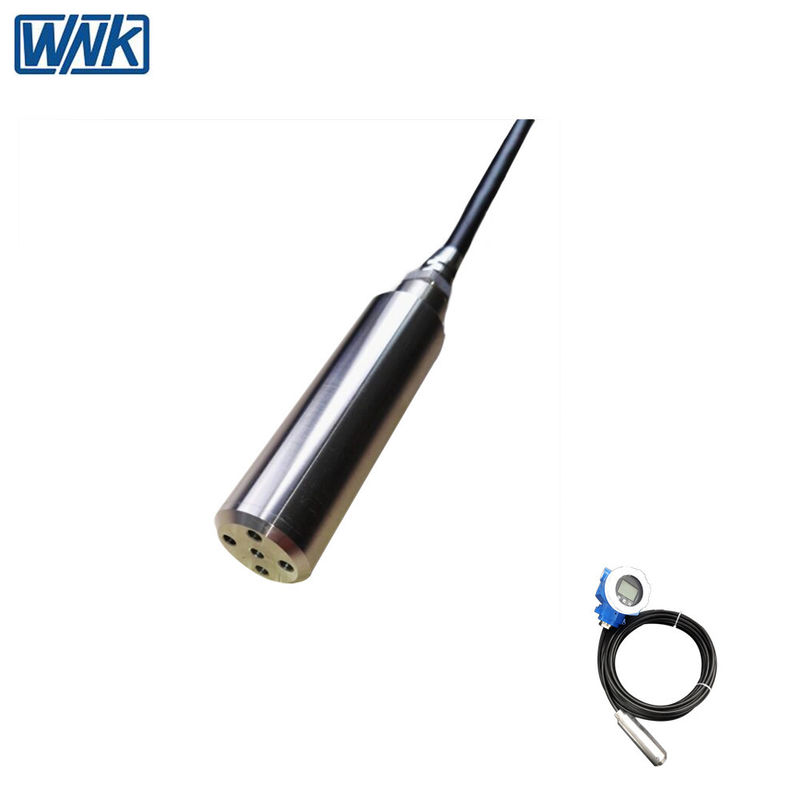

WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of
ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure
transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to
0.25%FS/Year with high protection of IP68.

Applications
• Water tank level measurement and control.

• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).

• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by

customized.)

Features

• Adopting diffusion silicon oil-filled sensor

• Max measure range up to 200 meters or more

• High Stability, provide 0.1, 0.2, 0.5 accuracy for option

• Factory direct price

Ordering Code
Dimensions - IP68 Sumbersible Liquid Level Sensor
Product Show
