1/4G Cable 15mA Atmospheric Air Pressure Sensor 1000kPa Electronic

1/4G Cable 15mA Atmospheric Air Pressure Sensor 1000kPa Electronic

1/4G Cable Air Pressure Sensor

15mA Atmospheric Air Pressure Sensor

1000kPa Atmospheric Air Pressure Sensor

Tempat asal:

Tiongkok (Daratan)

Nama merek:

WNK

Sertifikasi:

CE

Nomor model:

WNK83MA

Hubungi kami
Permintaan Penawaran
Product Details
Ketepatan:
1%
Media terukur:
Cair, gas dan uap
Kisaran tekanan:
0-1000kPa
Sinyal Keluaran:
0.5-4.5 VDC
Catu Daya:
4.75-5.25 VDC
Bahan:
Kuningan
Koneksi proses:
1/4NPT, G1/4
Sambungan Listrik:
Parkard, Outlet Kabel
Maks Saat Ini:
15mA
Menyoroti:

1/4G Cable Air Pressure Sensor

,

15mA Atmospheric Air Pressure Sensor

,

1000kPa Atmospheric Air Pressure Sensor

Payment & Shipping Terms
Kuantitas min Order
1 buah
Harga
negotiable
Kemasan rincian
Kotak karton standar ekspor
Waktu pengiriman
5-8 hari kerja
Syarat-syarat pembayaran
T/T, Western Union
Menyediakan kemampuan
5000+Potongan+per Bulan
Product Description
1000kPa Electronic 1/4G Cable 15mA Atmospheric Air Pressure Sensor

0.5-4.5V Output Water Air Steam Pressure Sensor For Air Condition

Product Description

What we are showing now is WNK83mA quarter NPT pressure tranmitter.As a practical pressure transmitter made of brass, it has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its supply voltage is 4.75-5.25v DC and the maximum supply current is 15mA. It can withstand strong working pressures up to 2000kpa. It can act on gas, water or liquid and has strong stability.



Product Parameter

Applicable media Liquid, Gas, Steam
Pressure range 0-10bar 0-20bar
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply 4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Compensation temperature -20~70ºC
Ambient temperature -40~110ºC
Working temperature -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~85ºC)
Electrical connection Parkard And Cable
Mechanical connection 1/4 NPT 1/4 G
Housing material Brass

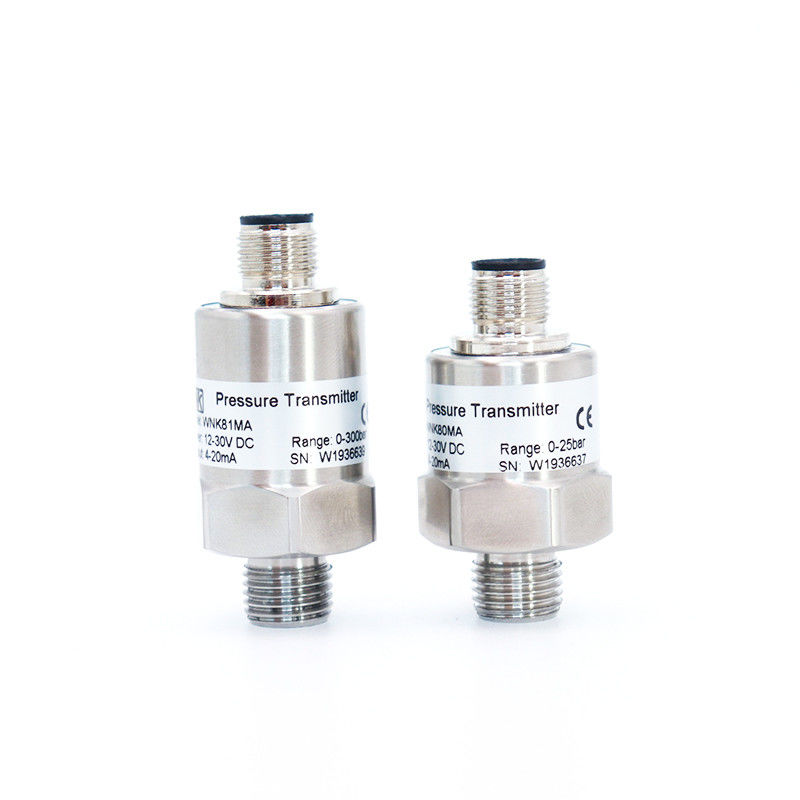

1/4G Cable 15mA Atmospheric Air Pressure Sensor 1000kPa Electronic 0




Product Show

1/4G Cable 15mA Atmospheric Air Pressure Sensor 1000kPa Electronic 11/4G Cable 15mA Atmospheric Air Pressure Sensor 1000kPa Electronic 2

Company Information


1/4G Cable 15mA Atmospheric Air Pressure Sensor 1000kPa Electronic 3

Factory


1/4G Cable 15mA Atmospheric Air Pressure Sensor 1000kPa Electronic 4

Exhibition


1/4G Cable 15mA Atmospheric Air Pressure Sensor 1000kPa Electronic 5

Our Certificate


1/4G Cable 15mA Atmospheric Air Pressure Sensor 1000kPa Electronic 6

FAQ


Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
