Intelligent 10bar RS485 Electronic Digital Level Switch With OLED Display

M12 5pin Electronic Digital Level Switch

RS485 electronic water pressure switch

PNP electronic water pressure switch

Tempat asal:

Hefei, CN

Nama merek:

WNK

Sertifikasi:

SGS, ISO9001:2015

Nomor model:

SPS

Hubungi kami

Permintaan Penawaran

Intelligent 10bar RS485 Electronic Digital Level Switch With OLED Display

Product Details

Keluaran:

4...20mA/0...5V+PNP+MODBUS

Ketepatan:

≤0,5%fs

Rentang Pengukuran:

0 ~100mH2O

Stabilitas jangka panjang:

±0,3% skala penuh per tahun

Catu Daya:

12...30V DC

Menampilkan:

OLED

Suhu Kerja:

-30~80 Derajat C

suhu media:

0~60 Derajat C

Beralih Keluaran:

PNP atau NPN

Jenis sakelar:

normal terbuka atau normal tertutup

Perlindungan Masuknya:

IP65

Konektor listrik:

M12 5pin atau 8pin

Menyoroti:

M12 5pin Electronic Digital Level Switch

RS485 electronic water pressure switch

PNP electronic water pressure switch

Payment & Shipping Terms

Kuantitas min Order

1 buah

Harga

negotiable

Kemasan rincian

Pengepakan Layak Laut atau Pengepakan Layak Udara

Waktu pengiriman

5-8 Hari Kerja

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

5000PCS per bulan

0 - 10V RS485 Electronic Digital Level Switch With OLED Indicator High Precision

Dapatkan Harga Terbaik

Modbus RS485 Electronic Water Level Switch For Water Tank High Light Switch Indicating

Dapatkan Harga Terbaik

Normally Closed RS485 Electronic Digital Level Switch 0-20mA RS485 Output

Dapatkan Harga Terbaik

OLED Electronic Digital Level Switch Water Indicator For Hydraulic Fluid

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

Introduction - SPS Intelligent Electronic Pressure Switch with OLED Display

Electronic Pressure Switch 10bar 100bar with Digital RS485O Output

The pressure switch SPS is designed for pressure monitoring and measure-ment in liquid and gaseous media. The SPS is suited for general industrial applications such as machine and plant engineering, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one and the same device. In its standard configuration it has two switching outputs (PNP or NPN). In addition, there are configurations available with an analog output signal (0...20mA| 420 mA or 0...5V| 010 V) as well as with RS485 Link.

Product Features - SPS Intelligent Electronic Pressure Switch with OLED Display

1. Smart type, with PNP/NPN switching.
2. Swithing points settable, NO/NC availalbe
3. With OLED display, with 5 digit available.
4. Provide RS485 communication for option.

Production Spec

SPS Intelligent Electronic Pressure Switch with OLED Display
Applicable media	Liquid, Gas, Steam
Pressure measurment	Gauge Pressure, Absolute pressure
Pressure range	-100kPa~60MPa
Output Signal	2×PNP + 0V~5VDC/10VDC + MODBUS(RS485)
Output Signal	2×PNP + 0mA/4mA~20mADC + MODBUS(RS485)
Accuracy	0.5% FS
Stability	±0.3% FS/year
Switch current	1.0A(Max.)
Switching type	Normally open / closed (settable)
Display	OLED (Optional)
Housing material	304 stainless steel
Mechanical connection	M20×1.5; 1/2-18NPT, 1/4NPT, Customize
Storge temperature	-40~80℃
Process temperature	-30~80℃
Protection class	IP65

Dimension

Product Show

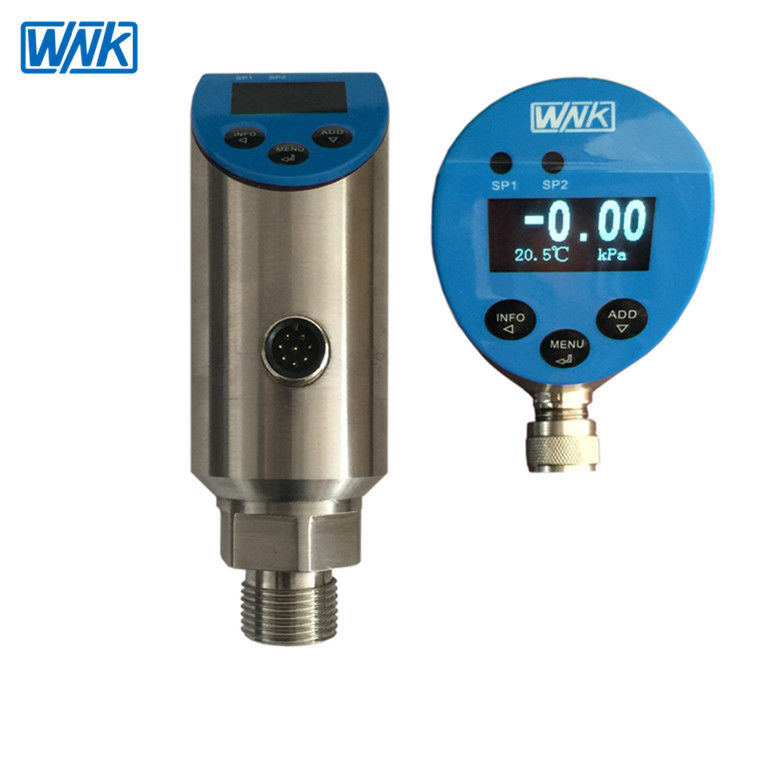

Intelligent 10bar RS485 Electronic Digital Level Switch With OLED Display 2
