Name: 4-20mA Air Water Micro Differential Smart Pressure Transmitter For Gas Steam
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK808N1
Price: 45.00 USD
Availability: InStock

Rumah > Produk > Smart Pressure Transmitter >

4-20mA Air Water Micro Differential Smart Pressure Transmitter For Gas Steam

Micro Differential smart pressure transducer

20mA gas pressure transmitter

Micro Differential gas pressure transmitter

Tempat asal:

ANHUI, CINA

Nama merek:

WNK

Nomor model:

WNK808N1

Hubungi kami

Permintaan Penawaran

Product Details

Media terukur:

Udara, gas

Kisaran tekanan:

-0.25-0.25kPa/-0.5-0.5kPa/-1-1kPa/-2-2kPa/-7-7kPa/-100-100kPa

Sinyal keluaran:

2-kawat 4-20mA/0-10V/rs485/2xpnp

Ketepatan:

±0,1%FS

Catu Daya:

12-32VDC

Sambungan Listrik:

Terminal atau M12

Beban eksternal:

≥500Ω

Nama:

Pemancar Tekanan Diferensial Mikro Air Udara 4-20mA

Menyoroti:

Micro Differential smart pressure transducer

20mA gas pressure transmitter

Micro Differential gas pressure transmitter

Payment & Shipping Terms

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Setiap set dalam satu kemasan karton individu dengan perlindungan

Waktu pengiriman

Untuk dinegosiasikan

Syarat-syarat pembayaran

T/T, Western Union, MoneyGram

Menyediakan kemampuan

-45 hingga 85ºC, -40 hingga 80ºC untuk header LCD

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

Dapatkan Harga Terbaik

Video

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

Dapatkan Harga Terbaik

Video

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

Dapatkan Harga Terbaik

Video

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

Micro Differential Pressure Transmitter

Product Description

Intelligent Macro Differential Pressure Transmitter
Applicable media	Gas, Steam
Pressure Measurement	Gauge pressure, Differential pressure
Pressure range	-0.25-0.25kPa/-0.5-0.5kPa/-1-1kPa/-2-2kPa/-7-7kPa/-100-100kPa
Accuracy	±0.1%FS
Stability	0.8%F.S./Year
Max overload	250% of sensor range
Output signals	2-Wire 4-20mA/0-10V/RS485/2xPNP
Electrical Connections	Terminal or M12
Power Supply	12-32V DC
Compensation Temperature	0-60℃

Outstanding advantages and main selling points of the productHigh precision, slight differential pressure: measuring range is within ±1KPa, accuracy grade is ±0.1% FS.Minimum range: ±50Pa, accuracy grade ±0.5% FS.Real-time display, no lag: response time ≤100ms, real-time display of measurement data, no damping delay.High and low end interchange: Through key operation, the test high and low voltage ports can be interchanged.

Application

It is widely used in various industrial automatic control occasions, involving many industries such as fire protection, environmental protection, medical treatment, aviation, and industrial control. Such as negative pressure ward, central air-conditioning, elevator warehouse and other slight differential pressure measurement.

4-20mA Air Water Micro Differential Smart Pressure Transmitter For Gas Steam 0

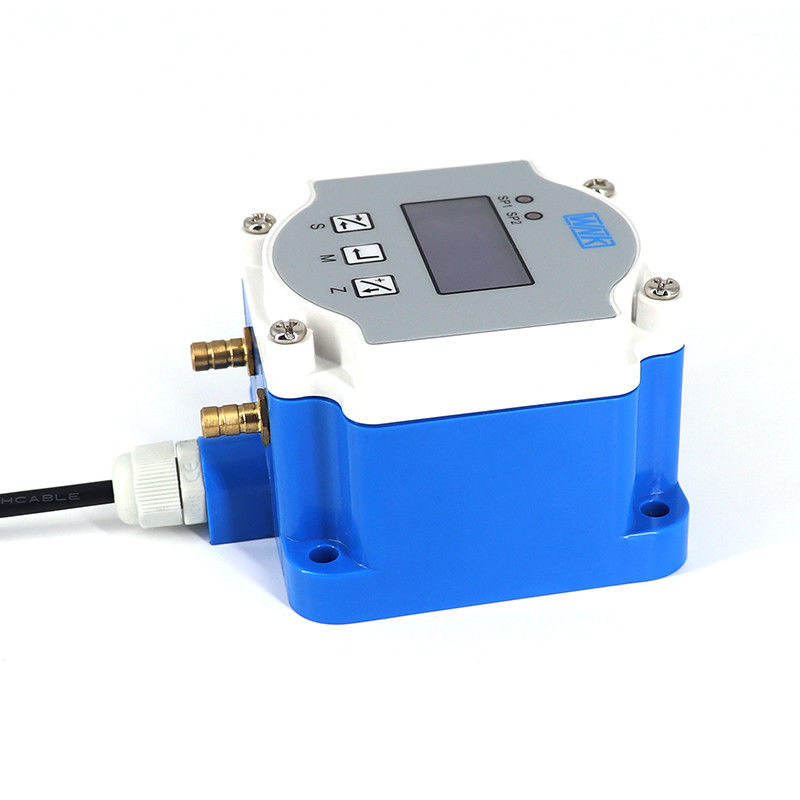

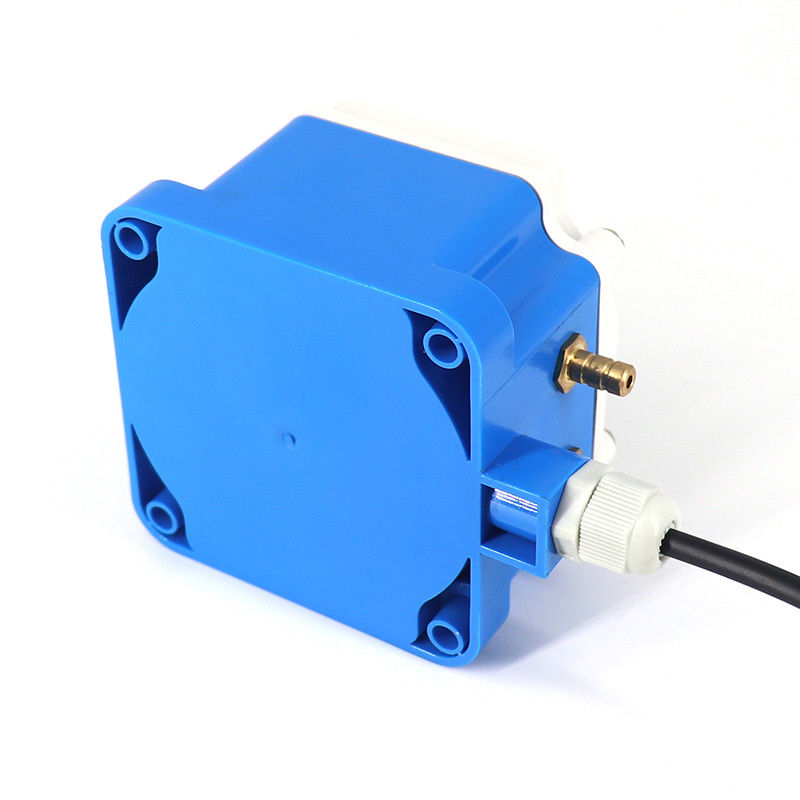

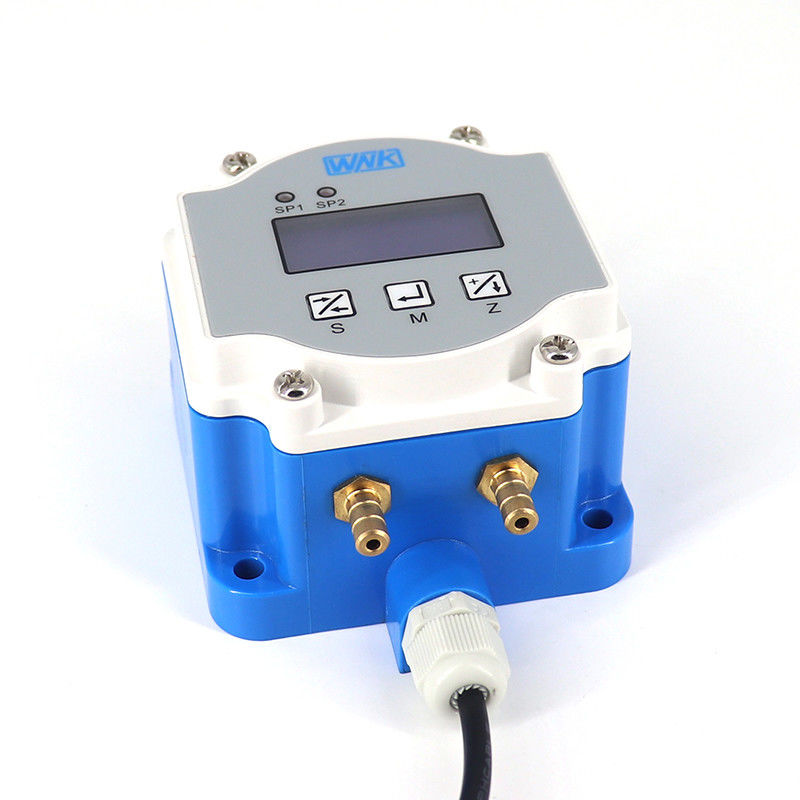

Product Show

4-20mA Air Water Micro Differential Smart Pressure Transmitter For Gas Steam 1
