Rumah > Produk > Submersible Level Sensor >
10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing

10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing

10m diesel fuel level sensor

ABS housing diesel fuel level sensor

10m water tank fill sensor

Tempat asal:

Cina

Nama merek:

WNK

Sertifikasi:

CE

Nomor model:

PWCS72

Hubungi kami
Permintaan Penawaran
10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing
Product Details
Rentang Pengukuran:
0,3-10m
Koneksi proses:
G1 1/2A atau flensa, Braket
Bahan perumahan:
Aluminium/ABS
Ketepatan:
0.25% FS
Keluaran:
4-20 MA/HART/RS485/Modbus
Kelas Tahan Ledakan:
Exia IIB T6 Ga
Menyoroti:

10m diesel fuel level sensor

,

ABS housing diesel fuel level sensor

,

10m water tank fill sensor

Payment & Shipping Terms
Kuantitas min Order
1 buah
Kemasan rincian
Pengemasan karton netral atau sesuai kebutuhan Anda.
Waktu pengiriman
5-8 Hari Kerja
Syarat-syarat pembayaran
D/P, T/T, Western Union, Paypal
Menyediakan kemampuan
5000/ potong/ bulan
RELATED PRODUCTS
Harga bagus IP68 Stainless steel Dirty Water Submersible Level Sensor on line Video

IP68 Stainless steel Dirty Water Submersible Level Sensor

Dapatkan Harga Terbaik
Harga bagus 24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well on line Video

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well

Dapatkan Harga Terbaik
Harga bagus 0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485 on line Video

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485

Dapatkan Harga Terbaik
Harga bagus 20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile on line Video

20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile

Dapatkan Harga Terbaik
Hubungi kami
Hubungi Sekarang
Product Description

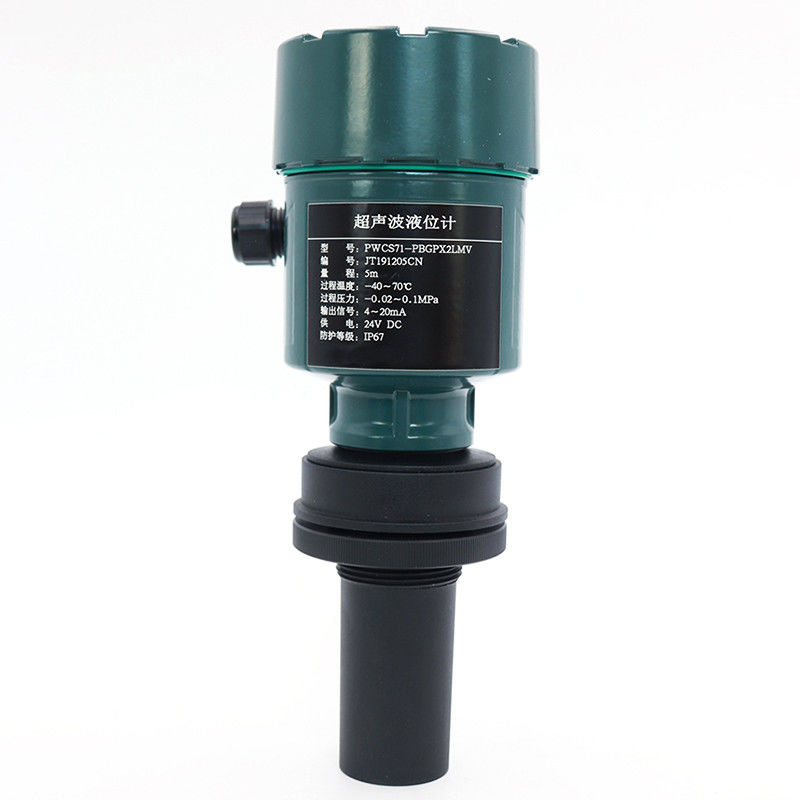

Ultrasonic Level Sensor Transmitter
10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 0



Aluminum Housing material
The Housing is made of aluminum with specific explosion-proof function
10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 1



Two transducer options
Different transducers can be selected for different measuring media, standard transducer can be selected for common environment and anticorrosive sealed transducer can be selected for special environment
10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 2


High Technology Functions
Echo curve display function
False echo storage function
Frequency adjustment function
Noise filteringfunction
10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 3


Wide Measuring Range and High Accuracy
Mesuring range can reach 20m while measuring the liquid with 0.25% high accuracy
Application Case
10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 4
10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 5
10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 6
Product Paramenters
Model
Measuring Range
Process Connection
Transducer Material
PWCS71
0.25-5m
G11/2"A/Flange/Bracket
PA66+GF30/PVDF
PWCS72
0.3-10m
G2"A/Flange/Bracket
PA66+GF30/PVDF
PWCS73
0.4-10m
M66*2/Flange/Bracket
PA66+GF30/PVDF
PWCS74
0.5-20m
M95*2/Flange/Bracket
PA66+GF30
Installation Guide
The transducer shall be vertical to the medium surface
The equipment shall not be installed in the middle of the tank top
The installation position shall avoid obstacles as much as possible
10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 7
10m 4-20mA Output Ultrasonic Diesel Fuel Level Sensor ABS Housing 8
