Name: ROHS 4.5V Water Pressure Sensor Absolute Pressure Transmitter
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Price: 20.00 USD
Availability: InStock

Rumah > Produk > Air Pressure Sensor >

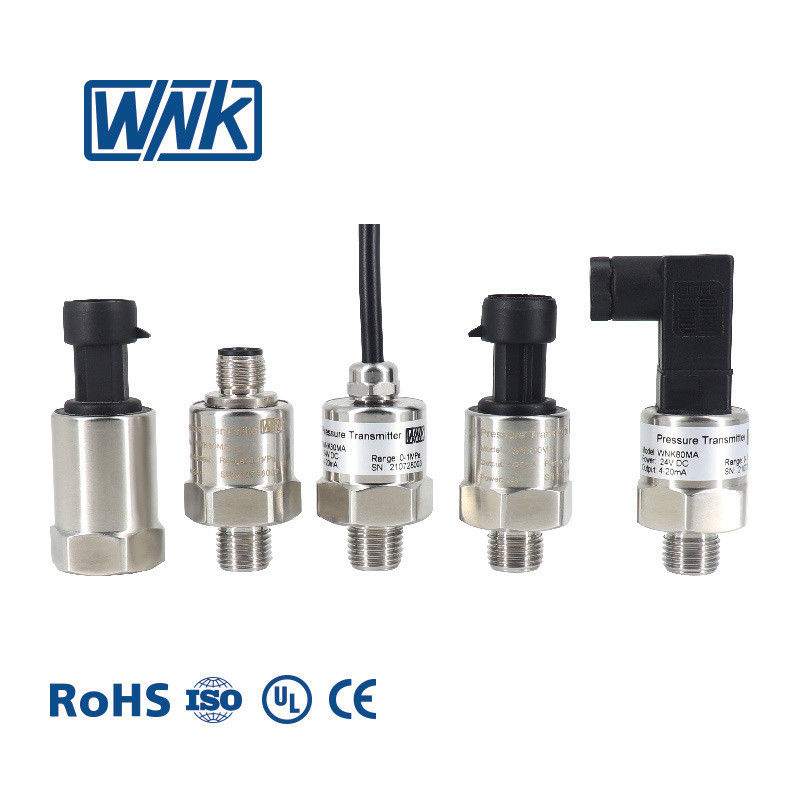

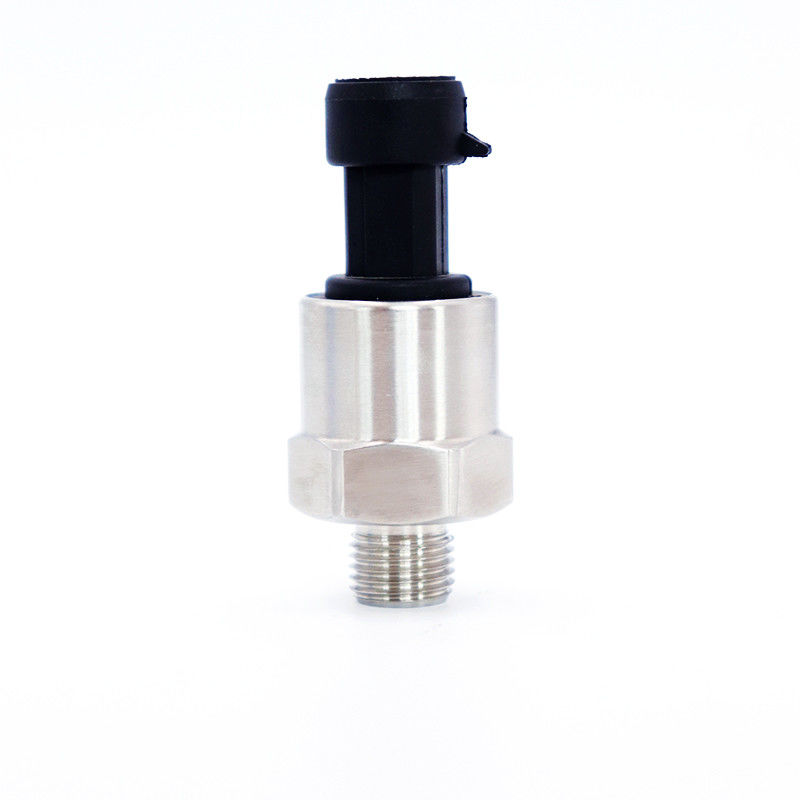

ROHS 4.5V Water Pressure Sensor Absolute Pressure Transmitter

4.5V absolute pressure transmitter

ROHS absolute pressure transmitter

60bar absolute pressure transducer

Tempat asal:

Cina

Nama merek:

WNK

Sertifikasi:

CE/ROHS

Nomor model:

WNK80MA

Hubungi kami

Permintaan Penawaran

ROHS 4.5V Water Pressure Sensor Absolute Pressure Transmitter

Product Details

Kisaran tekanan:

0-60bar

Keluaran:

I2C, SPI, 0.5-4.5V, 4-20mA dan kustomisasi

Jenis Sensor:

Sensor Tekanan IOT

Ketepatan:

Suhu kompensasi:

-20 -70°C

Bahan perumahan:

baja tahan karat 304

Menyoroti:

4.5V absolute pressure transmitter

ROHS absolute pressure transmitter

60bar absolute pressure transducer

Payment & Shipping Terms

Kuantitas min Order

1 harga

Harga

negotiable

Waktu pengiriman

5-8 Hari Kerja

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

5000 Potongan/potongan per Bulan Pemancar Tekanan

Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection

Dapatkan Harga Terbaik

Video

High Accuracy Air Pressure Sensor Packard Connector For Water Tank

Dapatkan Harga Terbaik

Video

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current

Dapatkan Harga Terbaik

Video

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

Water Pressure Sensor Absolute Pressure Transmitter Price

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media	Liquid, Gas
Pressure range	0~60bar
Pressure measurment	Gauge Pressure, Sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)	0.5%F.S.(Typical)
Power supply	24VDC/12VDC/5VDC/3.3V
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
power(electrical) connect	Parkard, M12, DIN43650, Cable outlet
Mechanical connection	G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP65

>>> Applications

- Automobile, Compressor and Refrigeration Industry

- Engineering machinery

- Pressure control and monitor

- Water treatment system

- Hydraulic and Pneumatics

- HAVC and BAS Control

- Pump, fitness equipment, household appliances

- Factory Automation

- Fluid Control and Instrumentation Systems

ROHS 4.5V Water Pressure Sensor Absolute Pressure Transmitter 0
