Rumah > Produk > Submersible Level Sensor >

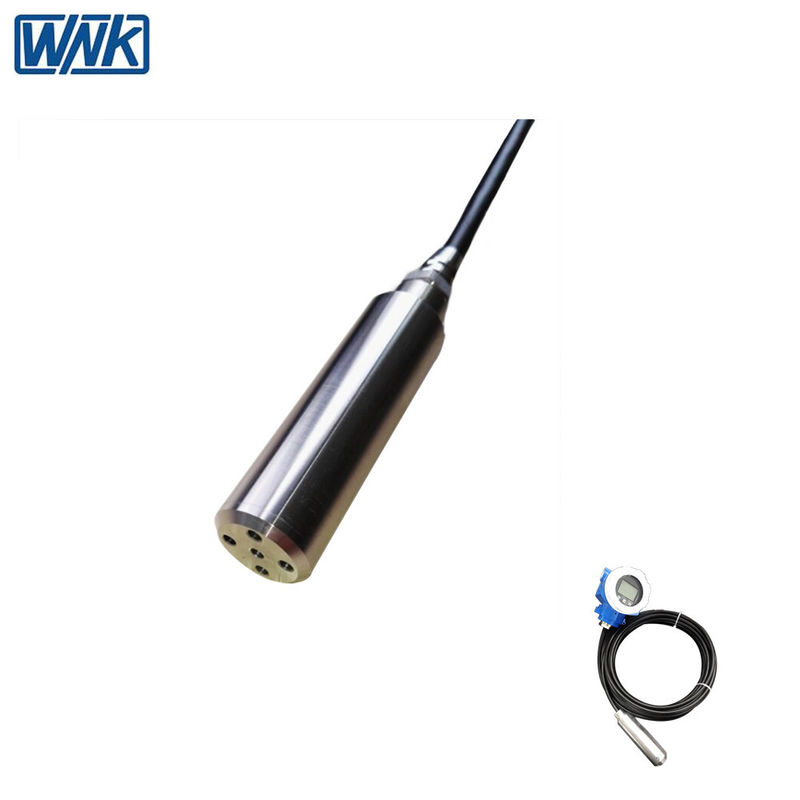

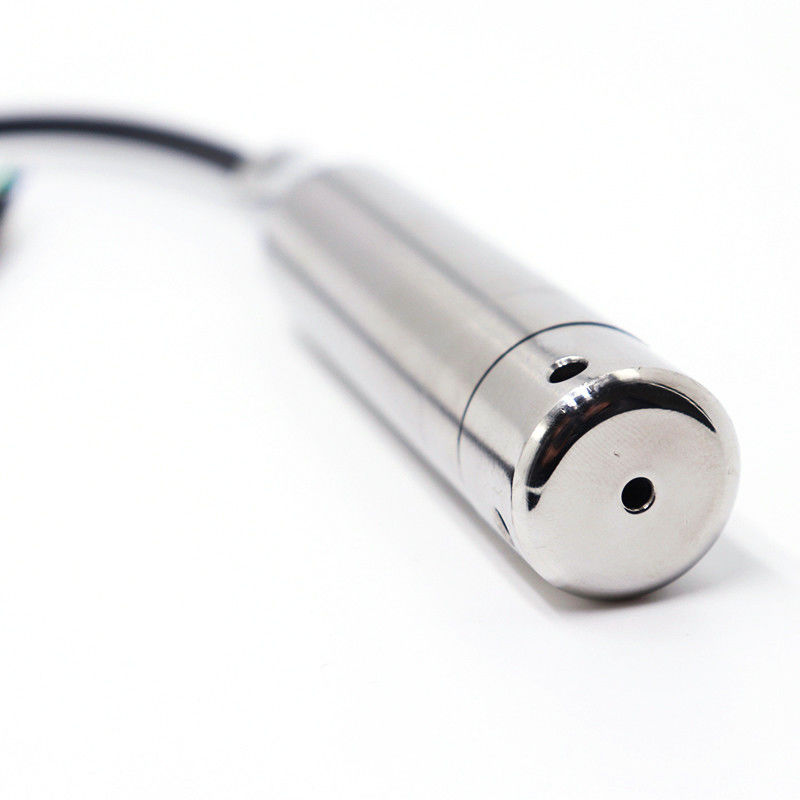

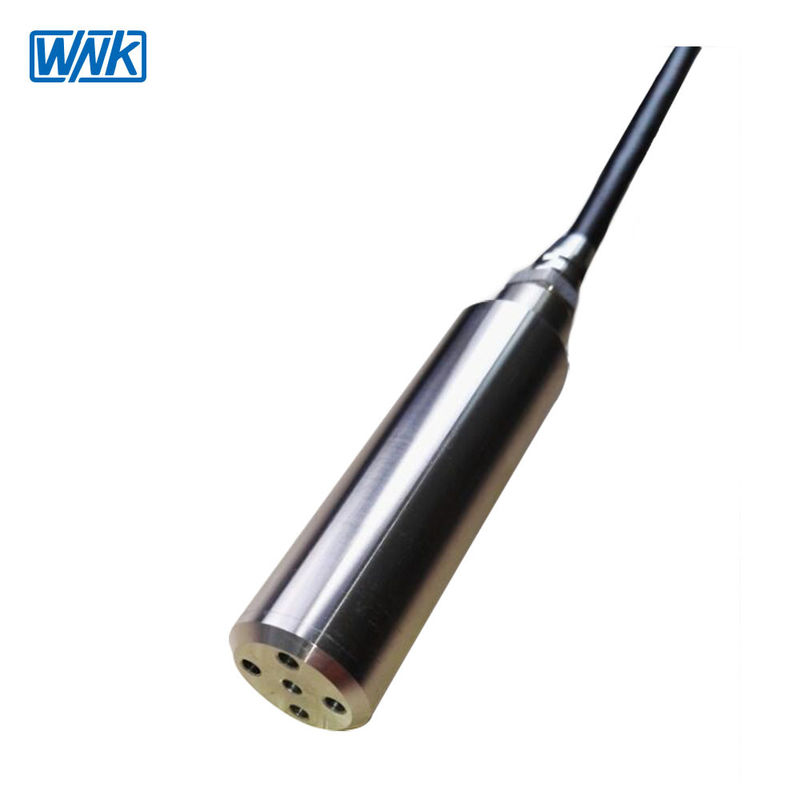

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485

20ma Submersible Water Level Transmitter

Rs485 Submersible Water Level Transmitter

Rs485 liquid water level sensor

Tempat asal:

Cina

Nama merek:

WNK

Sertifikasi:

ISO, CE

Nomor model:

WNK8010

Hubungi kami
Permintaan Penawaran
0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485
0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485 0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485 0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485
Product Details
Ketepatan:
0,5%FS
Keluaran:
4-20mA, 1-5V,0-10V,0.5-4.5V, I2C
Kisaran tekanan:
0-0,5~200mH2O
Catu Daya:
24V/12V/5V/3.3V
Media terukur:
Air, cairan
Bahan perumahan:
Baja Tahan Karat
Peringkat IP:
IP68
Kelebihan Beban Maks:
150% Dari Rentang Sensor
Aplikasi:
untuk pengukuran kapal terbuka, kolam, sungai, bawah air, dll
Menyoroti:

20ma Submersible Water Level Transmitter

,

Rs485 Submersible Water Level Transmitter

,

Rs485 liquid water level sensor

Payment & Shipping Terms
Kuantitas min Order
1 buah
Harga
negotiable
Kemasan rincian
Kotak karton ekspor standar atau sesuai kebutuhan Anda
Waktu pengiriman
5-7 hari kerja
Syarat-syarat pembayaran
L/C, T/T, Western Union, MoneyGram
Menyediakan kemampuan
5000 potong/potong per bulan
RELATED PRODUCTS
Harga bagus IP68 Stainless steel Dirty Water Submersible Level Sensor on line Video

IP68 Stainless steel Dirty Water Submersible Level Sensor

Dapatkan Harga Terbaik
Harga bagus 24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well on line Video

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well

Dapatkan Harga Terbaik
Harga bagus 0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485 on line Video

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485

Dapatkan Harga Terbaik
Harga bagus 20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile on line Video

20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile

Dapatkan Harga Terbaik
Hubungi kami
Hubungi Sekarang
Product Description

Submersible Water Level Transmitter







Output signals
Output 4-20mA, 0-10mA, 0-5V, 1-5V, I2C
Measured range 0-200 meters
Max overload 150% of sensor range
Applicable media Liquid, Water
Accuracy ±0.2% FS/year, ±0.5% FS/year
Stability ±0.25% FS/year
Housing material Stainless steel
Cable material Polyvinyl Fluoride, PTFE
Power supply 24V DC
Ambient temperature -20~85℃
Process temperature -20~85℃
Compensation temperature -20~85℃
Protection class IP68





1. Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,

2. With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.

3. This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.



Product Dimension & Installation



0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485 0

Ordering sheet


0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485 1
0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485 20.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485 30.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485 40.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485 50.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485 6

Company Information

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485 7

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485 8



0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485 9

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485 10

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485 11

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485 12




FAQ

 Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
