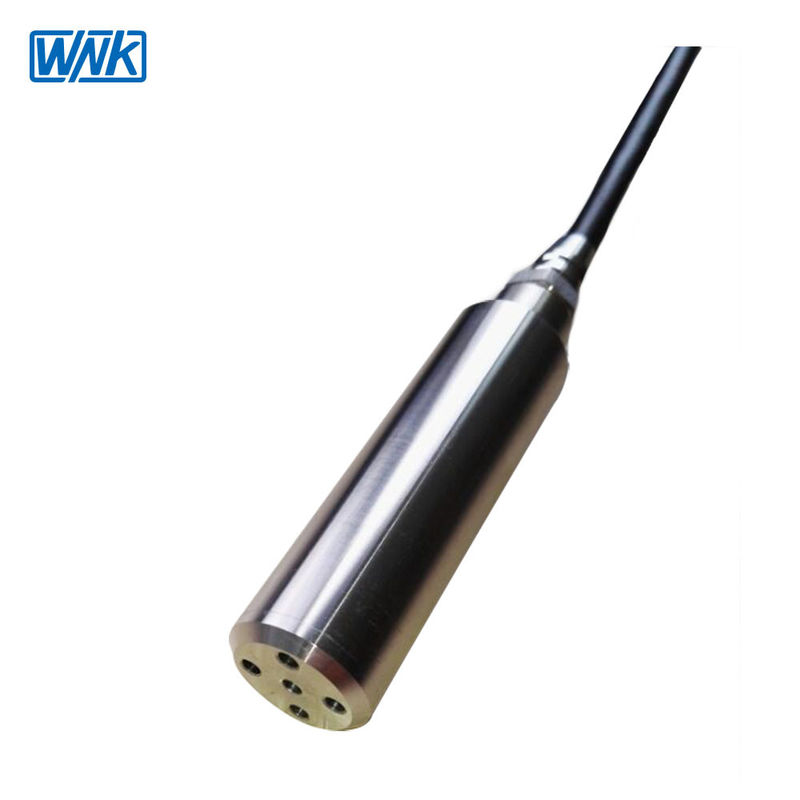

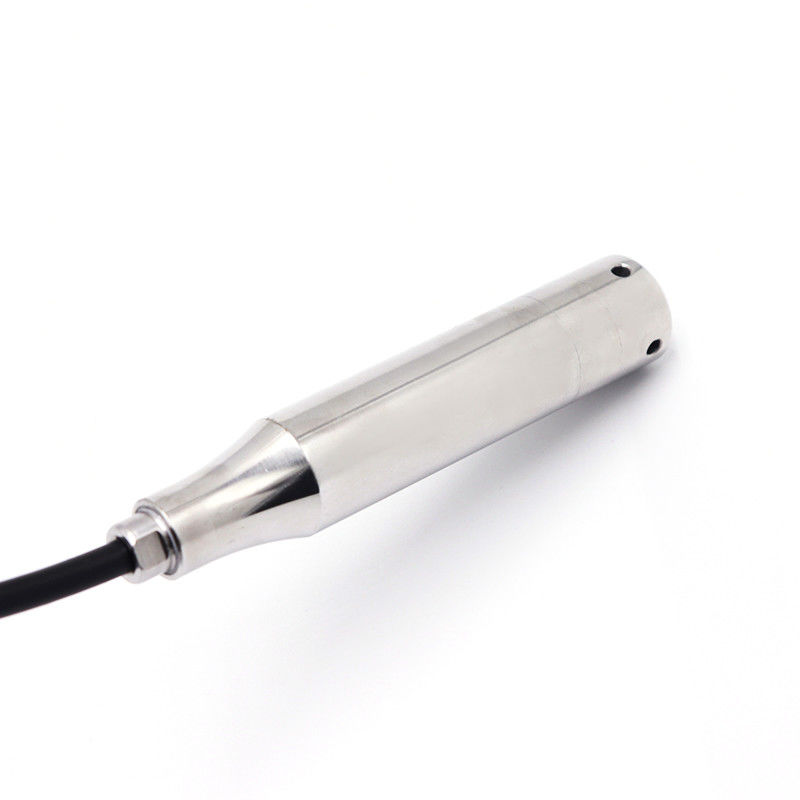

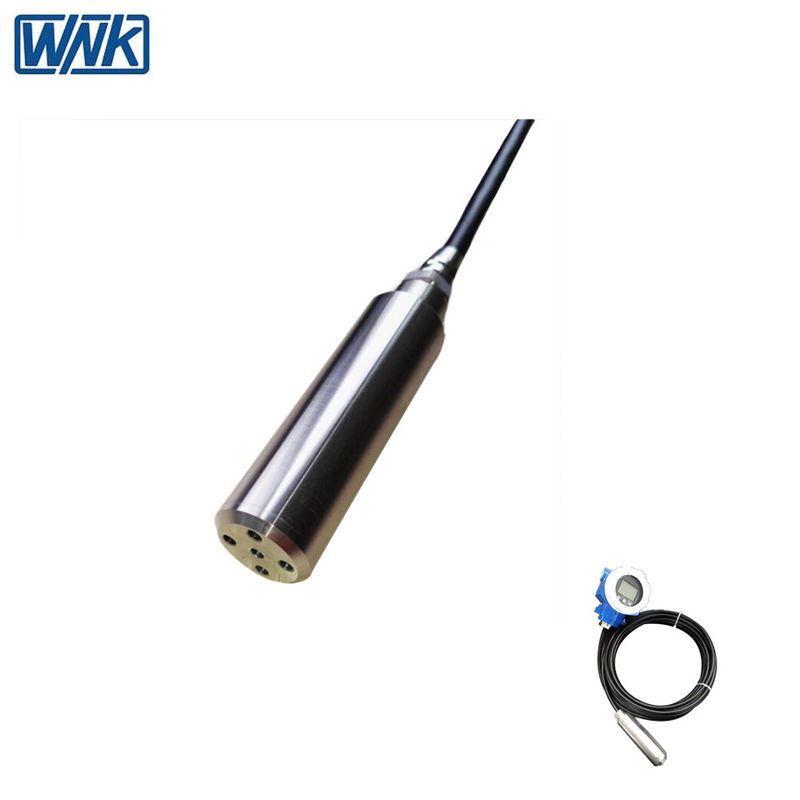

Name: 4-20mA Polyvinyl Fluoride PTFE Submersible Diesel Fuel Level Sensor Transmitter
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK8010
Price: 417.00 USD
Availability: InStock

Rumah > Produk > Submersible Level Sensor >

4-20mA Polyvinyl Fluoride PTFE Submersible Diesel Fuel Level Sensor Transmitter

PTFE diesel fuel level sensor

PTFE electronic fuel level sensor

Polyvinyl Fluoride fuel level transmitter

Tempat asal:

Cina

Nama merek:

WNK

Sertifikasi:

ISO, CE

Nomor model:

WNK8010

Hubungi kami

Permintaan Penawaran

Product Details

Ketepatan:

0,5%FS

Keluaran:

4-20mA, 1-5V,0-10V,0.5-4.5V, I2C

Kisaran tekanan:

0-0,5~200mH2O

Catu Daya:

24V/12V/5V/3.3V

Media terukur:

Air, cairan

Bahan perumahan:

Baja Tahan Karat

Peringkat IP:

IP68

Kelebihan Beban Maks:

150% Dari Rentang Sensor

Aplikasi:

untuk pengukuran kapal terbuka, kolam, sungai, bawah air, dll

Menyoroti:

PTFE diesel fuel level sensor

PTFE electronic fuel level sensor

Polyvinyl Fluoride fuel level transmitter

Payment & Shipping Terms

Kuantitas min Order

1 buah

Harga

negotiable

Kemasan rincian

Kotak karton ekspor standar atau sesuai kebutuhan Anda

Waktu pengiriman

5-7 hari kerja

Syarat-syarat pembayaran

L/C, T/T, Western Union, MoneyGram

Menyediakan kemampuan

5000 potong/potong per bulan

IP68 Stainless steel Dirty Water Submersible Level Sensor

Dapatkan Harga Terbaik

Video

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well

Dapatkan Harga Terbaik

Video

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485

Dapatkan Harga Terbaik

Video

20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

1. Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,

2. With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.

3. This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.

Output signals
Output	4-20mA, 0-10mA, 0-5V, 1-5V, I2C
Measured range	0-200 meters
Max overload	150% of sensor range
Applicable media	Liquid, Water
Accuracy	±0.2% FS/year, ±0.5% FS/year
Stability	±0.25% FS/year
Housing material	Stainless steel
Cable material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Ambient temperature	-20~85℃
Process temperature	-20~85℃
Compensation temperature	-20~85℃
Protection class	IP68
