Rumah > Produk > Smart Pressure Transmitter >

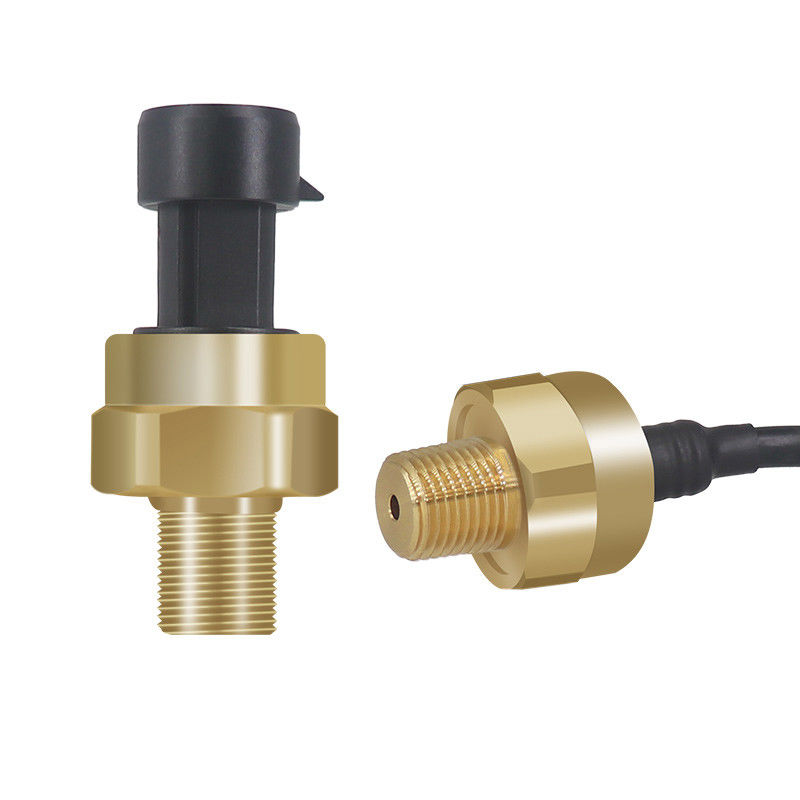

0.5-4.5V Brass Smart Pressure Transmitter 0-2 MPa For HVAC Application

0.5-4.5V Brass Smart Pressure Transmitter 0-2 MPa For HVAC Application

Brass Smart Pressure Transmitter

Brass HVAC Pressure Transmitter

2MPa HVAC Pressure Transmitter

Tempat asal:

Cina

Nama merek:

WNK

Sertifikasi:

CE

Nomor model:

WNK83MA

Hubungi kami
Permintaan Penawaran
0.5-4.5V Brass Smart Pressure Transmitter 0-2 MPa For HVAC Application
0.5-4.5V Brass Smart Pressure Transmitter 0-2 MPa For HVAC Application 0.5-4.5V Brass Smart Pressure Transmitter 0-2 MPa For HVAC Application
Product Details
Kisaran tekanan:
0-2MPa,0-20bar,0-2000kPa
Keluaran:
0,5-4,5V DC
Catu Daya:
4,75-5,25VDC
Bahan:
Kuningan
Konektor proses:
G1/4
Konektor listrik:
Outlet kabel
Ketepatan:
1%
Menyoroti:

Brass Smart Pressure Transmitter

,

Brass HVAC Pressure Transmitter

,

2MPa HVAC Pressure Transmitter

Payment & Shipping Terms
Kuantitas min Order
1 buah
Harga
negotiable
Kemasan rincian
Setiap bagian ke dalam karton individu dengan perlindungan busa, Atau sesuai permintaan klien
Waktu pengiriman
8-10 hari kerja
Syarat-syarat pembayaran
D/A, D/P, T/T, Western Union, Paypal
Menyediakan kemampuan
2000 pcs per minggu
RELATED PRODUCTS
Harga bagus G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam on line Video

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

Dapatkan Harga Terbaik
Harga bagus Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT on line Video

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

Dapatkan Harga Terbaik
Harga bagus Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE on line Video

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

Dapatkan Harga Terbaik
Harga bagus WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor on line Video

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

Dapatkan Harga Terbaik
Hubungi kami
Hubungi Sekarang
Product Description

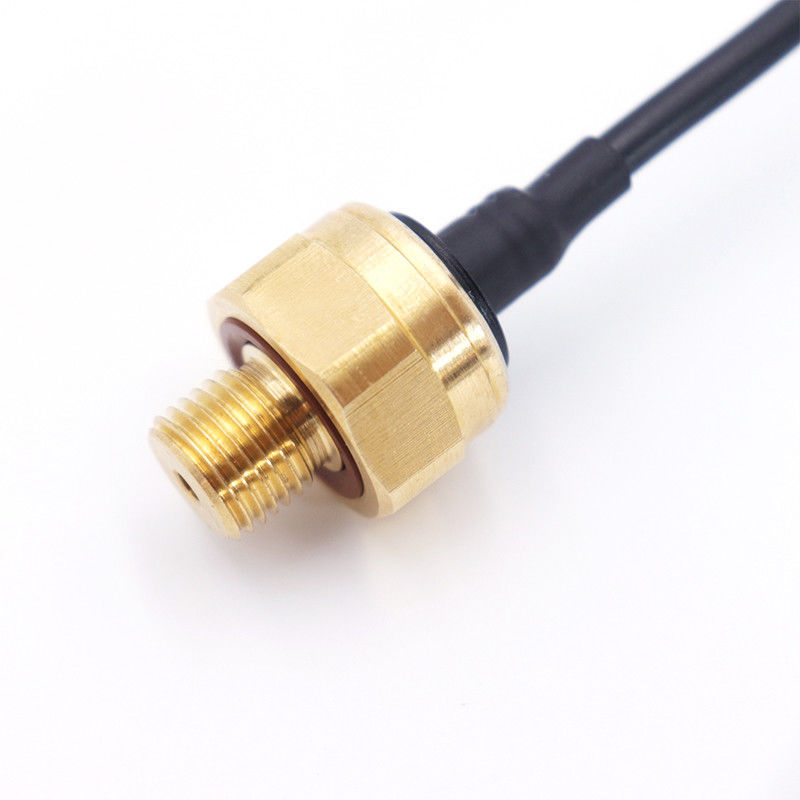

Mini brass pressure sensor,range 0-20bar,temp range -20 to 70ºC,output 0.5-4.5V,suitable for gauge pressure ,sealing pressure.
This product is in stock, please place an order directly.
If you have any other questions, please feel free to contact us.



WNK83MA is our standard compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. WNK83MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.


Applicable media Liquid, gas and steam
Pressure range 0-2MPa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply 4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Working temperature -20~70ºC
Ambient temperature -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~70ºC)
Electrical connection Cable Outlet
Mechanical connection G1/4
Housing material Brass


0.5-4.5V Brass Smart Pressure Transmitter 0-2 MPa For HVAC Application 00.5-4.5V Brass Smart Pressure Transmitter 0-2 MPa For HVAC Application 10.5-4.5V Brass Smart Pressure Transmitter 0-2 MPa For HVAC Application 2

Company Information
0.5-4.5V Brass Smart Pressure Transmitter 0-2 MPa For HVAC Application 3


Packaging

0.5-4.5V Brass Smart Pressure Transmitter 0-2 MPa For HVAC Application 4

FAQ


Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
