M12 60bar Compact IOT Pressure Sensor Anti Corrosion Vibration Resistant

60bar IOT Pressure Sensor

M12 IOT Pressure Sensor

IOT compact pressure Transmitter

Tempat asal:

Anhui, Tiongkok

Nama merek:

WNK

Sertifikasi:

CE, SGS, ISO9001

Nomor model:

WNK80MA

Hubungi kami

Permintaan Penawaran

M12 60bar Compact IOT Pressure Sensor Anti Corrosion Vibration Resistant

Product Details

Kisaran tekanan:

0-60bar

Keluaran:

I2C, SPI, 0.5-4.5V, 4-20mA dan kustomisasi

Waktu Respons:

≥1ms

Tekanan kelebihan beban:

3-5 kali

Jenis Sensor:

Sensor Tekanan IOT

Suhu Kerja:

-40 -135 ° C.

Jaminan:

12 Bulan

Perlindungan Masuknya:

IP67

Ketepatan:

Suhu kompensasi:

-20 -70°C

Bahan perumahan:

baja tahan karat 304

Menyoroti:

60bar IOT Pressure Sensor

M12 IOT Pressure Sensor

IOT compact pressure Transmitter

Payment & Shipping Terms

Kuantitas min Order

1 buah

Harga

negotiable

Kemasan rincian

Pengepakan Layak Laut atau Pengepakan Layak Udara

Waktu pengiriman

5-8 Hari Kerja

Syarat-syarat pembayaran

D/A, L/C, T/T, Western Union, MoneyGram

Menyediakan kemampuan

5000 Potongan/potongan per Bulan Pemancar Tekanan

40 sampai 85 derajat Celcius IOT Pressure Sensor yang dirancang untuk pemantauan jangka panjang dari tekanan minyak POE dalam kondisi yang keras

Dapatkan Harga Terbaik

Tekanan Gas Cairan Medium IOT Sensor Tekanan Silikon Diffused Transmitter Tipe 4-20ma Output Dan Opsi Kustomisasi

Dapatkan Harga Terbaik

Input 47552VDC Sensor Tekanan Udara OEM Kompatibel dengan Berbagai Pengontrol Industri dan Sistem Akuisisi Data

Dapatkan Harga Terbaik

Output 4-20ma dan Sensor Tekanan IOT Kustomisasi Menawarkan Stabilitas Jangka Panjang Di Bawah 0,2 Persen FS per Tahun Desain OEM

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

M12 Electrical connection 0-60bar IOT Pressure Sensor With CE Certificaton

Name: M12 60bar Compact IOT Pressure Sensor Anti Corrosion Vibration Resistant
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Price: 53.00 USD
Availability: InStock

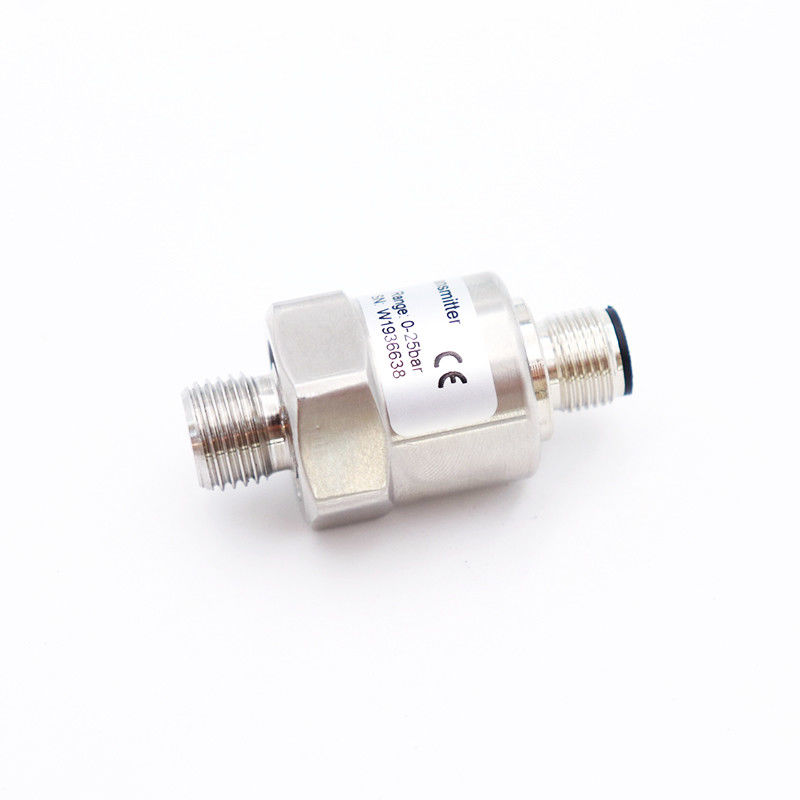

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.

With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

Pictures

Applicable media	Liquid, gas and steam
Pressure range	0-20kPa~50MPa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, absolute pressure and sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply	24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	M12
Mechanical connection	G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material	304 stainless steel(316SS for inner core)
Protection	IP65

Electrical connection

M12 60bar Compact IOT Pressure Sensor Anti Corrosion Vibration Resistant 2

Application:

WNK80MA is solution for below applications:

Pressure measurement of gas, vapor or liquid in various areas;

Liquid level, volume or mass measurement;

Integrated in a variety of user-defined solutions;

Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor, HVAC, pump, valve and etc;
