Name: 2MPa 1/4NPT Monocrystalline Brass Air Pressure Sensor Welded Structure
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK83MA
Price: 20.00 USD
Availability: InStock

Rumah > Produk > Air Pressure Sensor >

2MPa 1/4NPT Monocrystalline Brass Air Pressure Sensor Welded Structure

1/4NPT Air Pressure Sensor

2MPa Air Pressure Sensor

1/4NPT brass pressure sensor

Tempat asal:

Cina

Nama merek:

WNK

Sertifikasi:

Nomor model:

WNK83MA

Hubungi kami

Permintaan Penawaran

Product Details

Kisaran tekanan:

0-2MPa,0-20bar,0-2000kPa

Keluaran:

0,5-4,5V DC

Catu Daya:

4,75-5,25VDC

Bahan:

Kuningan

Konektor proses:

1/4 npt

Konektor listrik:

Outlet kabel

Ketepatan:

Menyoroti:

1/4NPT Air Pressure Sensor

2MPa Air Pressure Sensor

1/4NPT brass pressure sensor

Payment & Shipping Terms

Kuantitas min Order

1 buah

Harga

negotiable

Kemasan rincian

Setiap bagian ke dalam karton individu dengan perlindungan busa, Atau sesuai permintaan klien

Waktu pengiriman

8-10 hari kerja

Syarat-syarat pembayaran

D/A, D/P, T/T, Western Union, Paypal

Menyediakan kemampuan

2000 pcs per minggu

Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection

Dapatkan Harga Terbaik

Video

High Accuracy Air Pressure Sensor Packard Connector For Water Tank

Dapatkan Harga Terbaik

Video

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current

Dapatkan Harga Terbaik

Video

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

Customized Cable Outlet 1/4G 0.5 - 4.5V DC Output Air Pressure Sensor

Mini brass pressure sensor suitable for air oil water

Applicable media	Liquid, gas and steam
Pressure range	0-2MPa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, Sealing pressure
Output	0.5-4.5V
Power supply	4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Working temperature	-20~70ºC
Ambient temperature	-40~110ºC
Temperature drift(zero)	±0.15% F.S. (-20~70ºC)
Temperature drift(full range)	±0.15% F.S. (-20~70ºC)
Electrical connection	Cable Outlet
Mechanical connection	G1/4
Housing material	Brass

Product Show

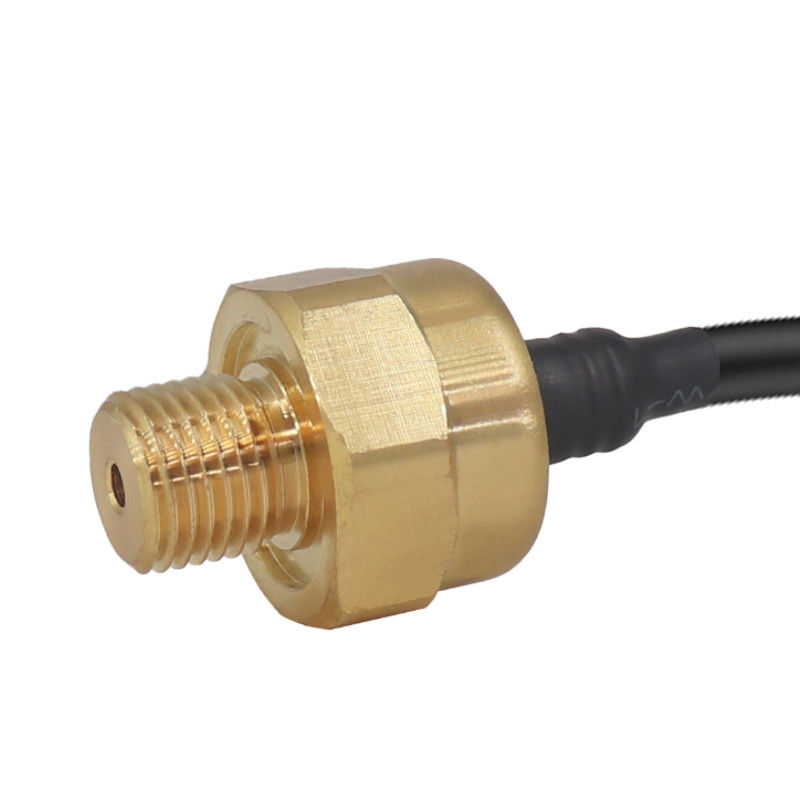

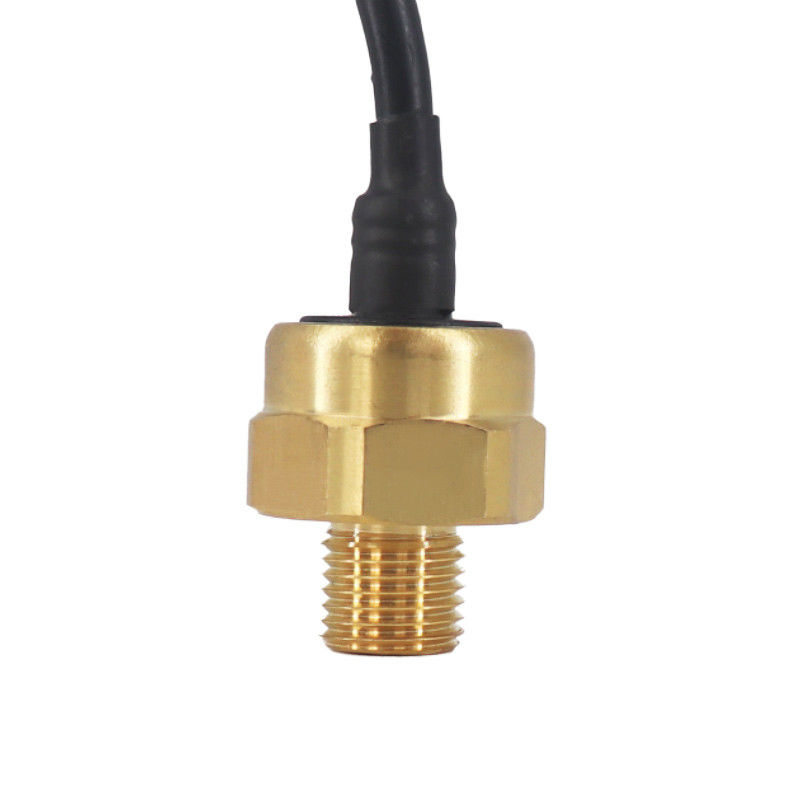

2MPa 1/4NPT Monocrystalline Brass Air Pressure Sensor Welded Structure 0

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
