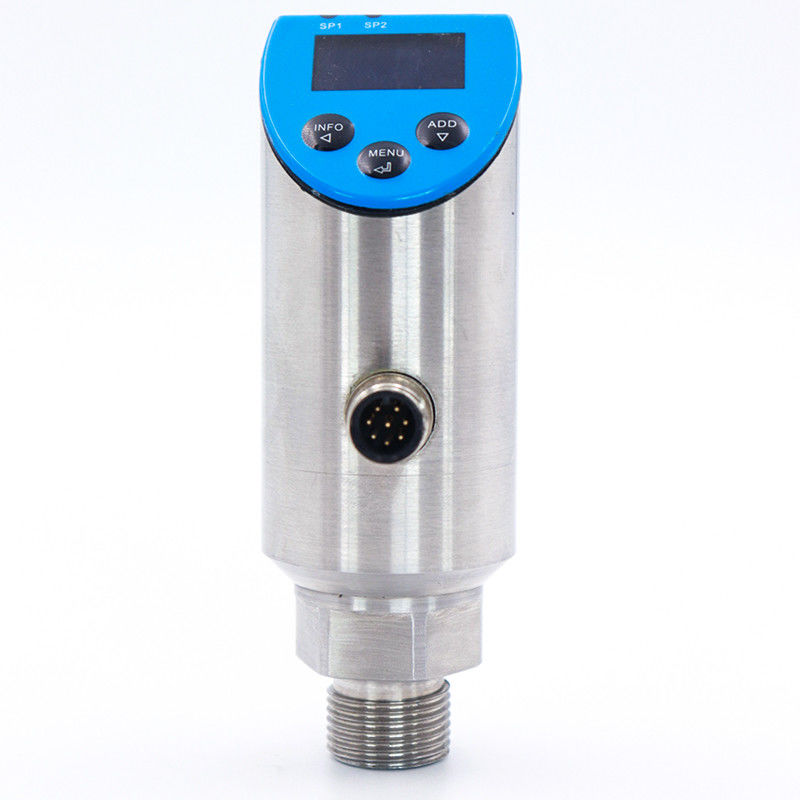

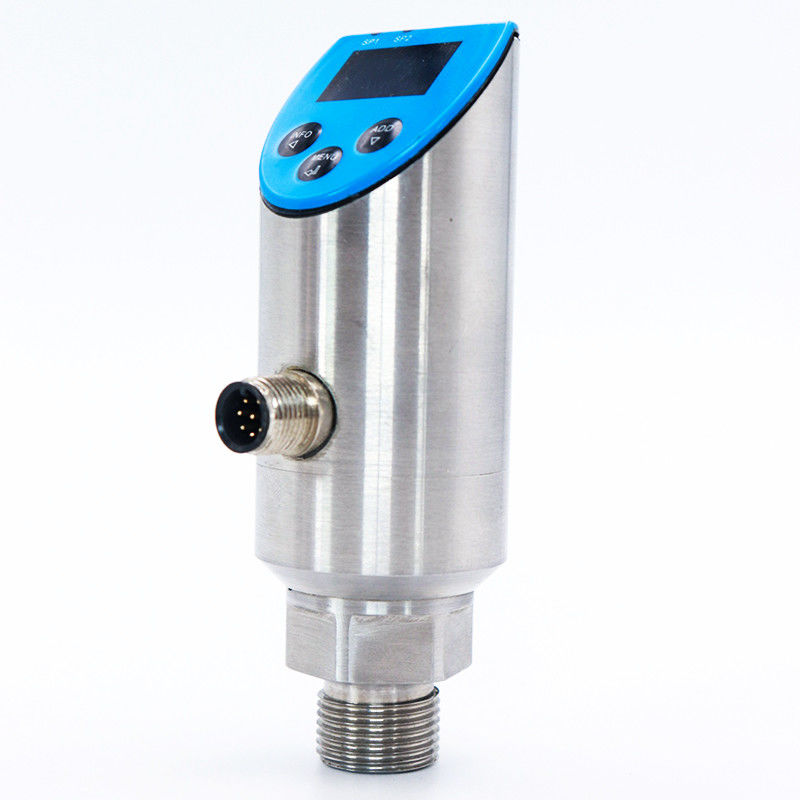

SST Electronic Pressure Switch Pressure Pump Switch Pressure Switch For Air

Product Description

SPS pressure switch is designed for pressure monitoring and measurement in liquid and gaseous media. The SPS is suited for general industrial applications such as in mechanical manufacturing, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one device. In its standard configuration it has optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.

Applications


pump control,
storage tank monitor,
liquid level control,
filter blocking and monitor,
leakage surveillance.

Features

- Programmable automatic control design

- OLED with back-light display

- Display 180°turnable

- Displaying pressure peak value and environment temperature

- Body 330°rotable

- Industrial touch-sensitive button

- Switch points settable

- PNP/NPN +4~20mA/0-5V output

- Support MODBUS

- Pressure, level and temperature switch

- OEM & Customizable
