Piezoresistive IP68 Oil Filled Diffusion Silicon Sensor

SS Diffusion Silicon Sensor

IP68 Diffusion Silicon Sensor

Diffused Silicon Piezoresistive Pressure Sensor

Tempat asal:

Cina

Nama merek:

WNK

Sertifikasi:

Nomor model:

WNK8010-TT

Hubungi kami

Permintaan Penawaran

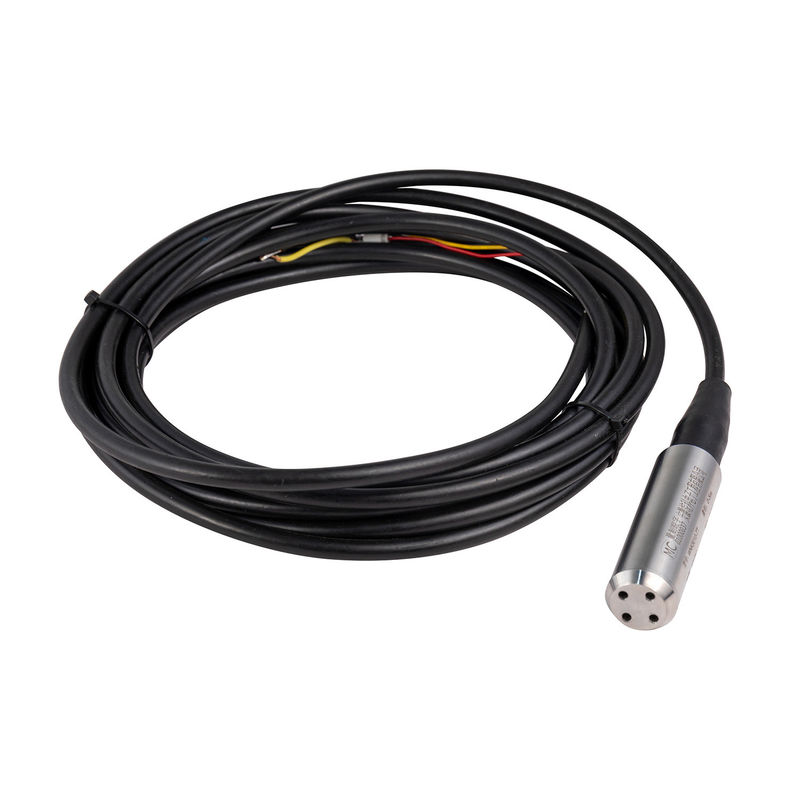

Piezoresistive IP68 Oil Filled Diffusion Silicon Sensor

Product Details

Analog:

4-20mA, 1-5V, 0,5-4,5, 0-5V, 0-10V, I2C

Digital:

Hart, RS485 dll

Rentang ukuran:

0-1 ~ 200MH2O

Media:

Cair, air

Ketepatan:

±0,5% FS/tahun, ±1% FS/tahun

Bahan perumahan:

Baja Tahan Karat

Catu Daya:

24V/12V/5V/3.3V

Perlindungan:

IP68

Menyoroti:

SS Diffusion Silicon Sensor

IP68 Diffusion Silicon Sensor

Diffused Silicon Piezoresistive Pressure Sensor

Payment & Shipping Terms

Kuantitas min Order

1 buah

Kemasan rincian

paket standar ekspor

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

T/T, Western Union, Paypal

Menyediakan kemampuan

3000 buah per bulan.

IP68 Stainless steel Dirty Water Submersible Level Sensor

Dapatkan Harga Terbaik

Video

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well

Dapatkan Harga Terbaik

Video

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485

Dapatkan Harga Terbaik

Video

20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

Sea Water Flow Sensor Meter Adopting Diffusion Silicon Oil-filled Sensor

Product Description

1. Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element.
2. This product comes with compact profile, easy to install,it can measure the level height directly when through into the liquor.

Output signals
Output	4-20mA, 0-10mA, 0-5V, 1-5V,Customization
Measured range
Measured range	0-0.5~200mH₂O
Max overload	150% of sensor range
Parameters
Applicable media	Liquid, Water
Accuracy	±1% FS/year, ±0.5% FS/year
Stability	±0.25% FS/year
Housing material	Stainless steel
Cable material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Ambient temperature	-20~85℃
Process temperature	-20~85℃
Compensation temperature	-20~85℃
Protection class	IP68

Piezoresistive IP68 Oil Filled Diffusion Silicon Sensor 0

Packaging & Shipping

Piezoresistive IP68 Oil Filled Diffusion Silicon Sensor 3

Company Information

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 14 years of experience.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: What is yor MOQ?
A: We have no MOQ limits,1 pc for testing is acceptable.
