Name: Smart drinking water pressure sensor I2C output low consumption transducer
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Price: 53.00 USD
Availability: InStock

Rumah > Produk > IOT Pressure Sensor >

Smart drinking water pressure sensor I2C output low consumption transducer

i2c pressure sensor

oem pressure sensor

Tempat asal:

Cina

Nama merek:

WNK

Sertifikasi:

CE&UL

Nomor model:

WNK80MA

Hubungi kami

Permintaan Penawaran

Smart drinking water pressure sensor I2C output low consumption transducer

Product Details

Keluaran:

24VDC/12VDC/5VDC/3.3V

Kisaran tekanan:

0~15MPa

Media terukur:

Cair, gas dan uap

Sambungan Listrik:

Packard, M12, DIN43650, Kabel

Bahan perumahan:

Alunimum/Kuningan/SST 304

Kata-kata kunci:

Sensor Tekanan

tingkat IP:

IP65

Koneksi proses:

G1/2, G1/4, M2x1.5NPT1/4, kustomisasi

Menyoroti:

i2c pressure sensor

oem pressure sensor

Payment & Shipping Terms

Kuantitas min Order

1 buah

Kemasan rincian

Kemasan Standar atau sesuai kebutuhan Anda

Syarat-syarat pembayaran

T/T, Paypal, West Union

Menyediakan kemampuan

1000

40 sampai 85 derajat Celcius IOT Pressure Sensor yang dirancang untuk pemantauan jangka panjang dari tekanan minyak POE dalam kondisi yang keras

Dapatkan Harga Terbaik

Tekanan Gas Cairan Medium IOT Sensor Tekanan Silikon Diffused Transmitter Tipe 4-20ma Output Dan Opsi Kustomisasi

Dapatkan Harga Terbaik

Input 47552VDC Sensor Tekanan Udara OEM Kompatibel dengan Berbagai Pengontrol Industri dan Sistem Akuisisi Data

Dapatkan Harga Terbaik

Output 4-20ma dan Sensor Tekanan IOT Kustomisasi Menawarkan Stabilitas Jangka Panjang Di Bawah 0,2 Persen FS per Tahun Desain OEM

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

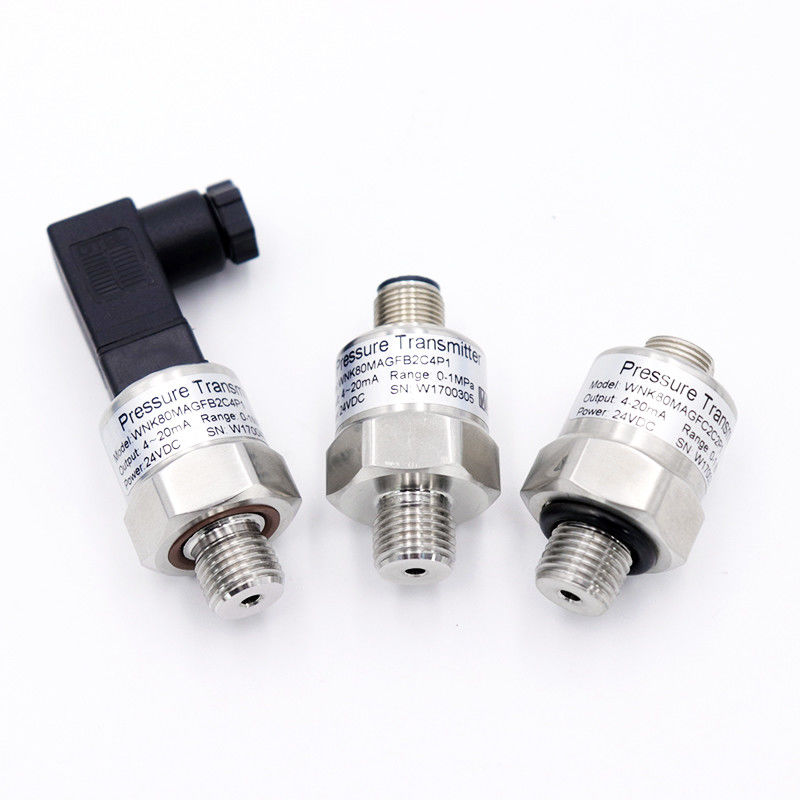

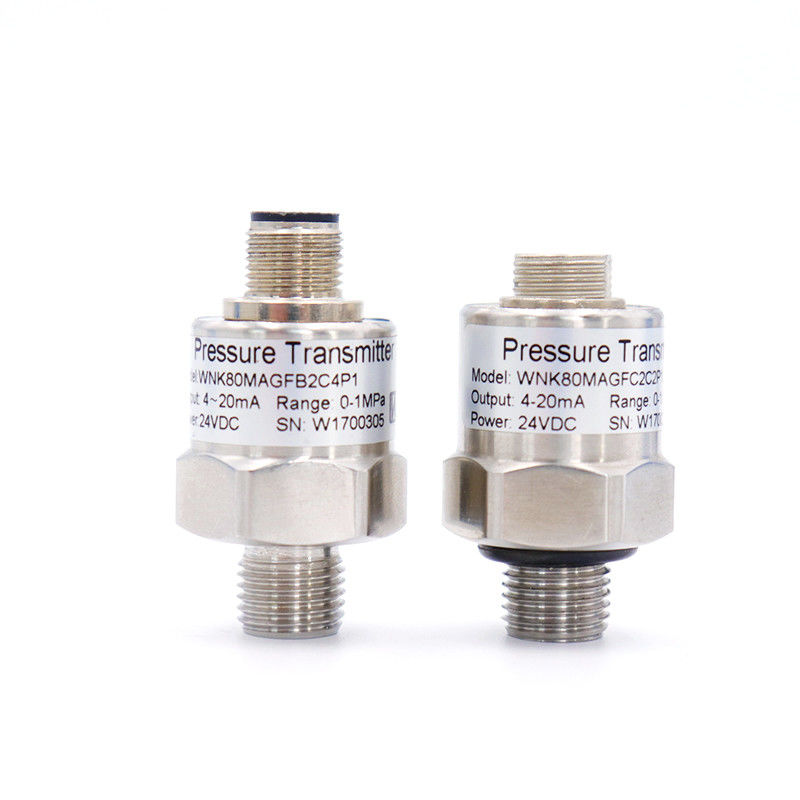

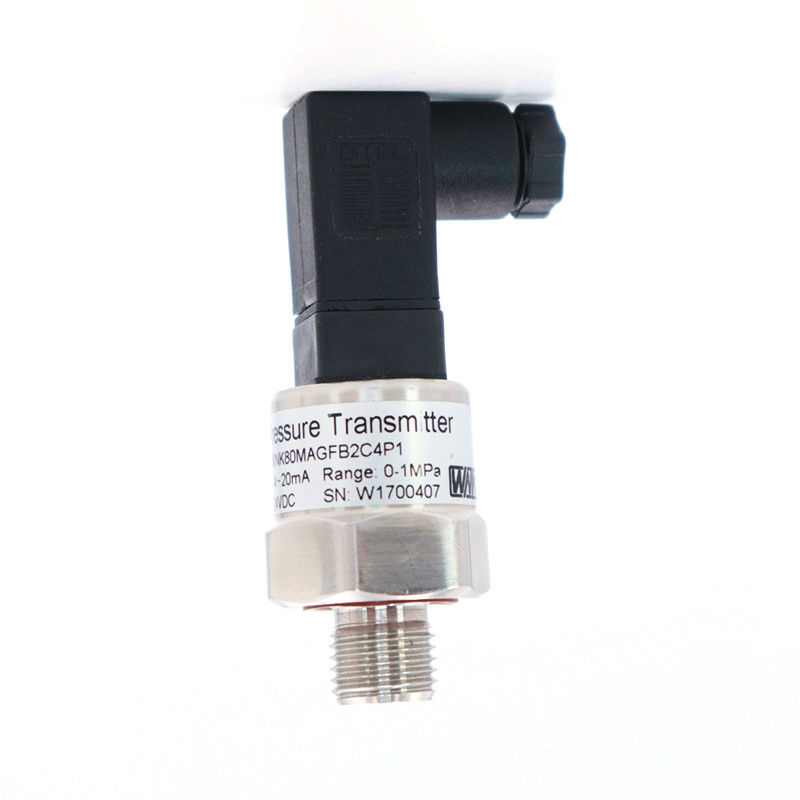

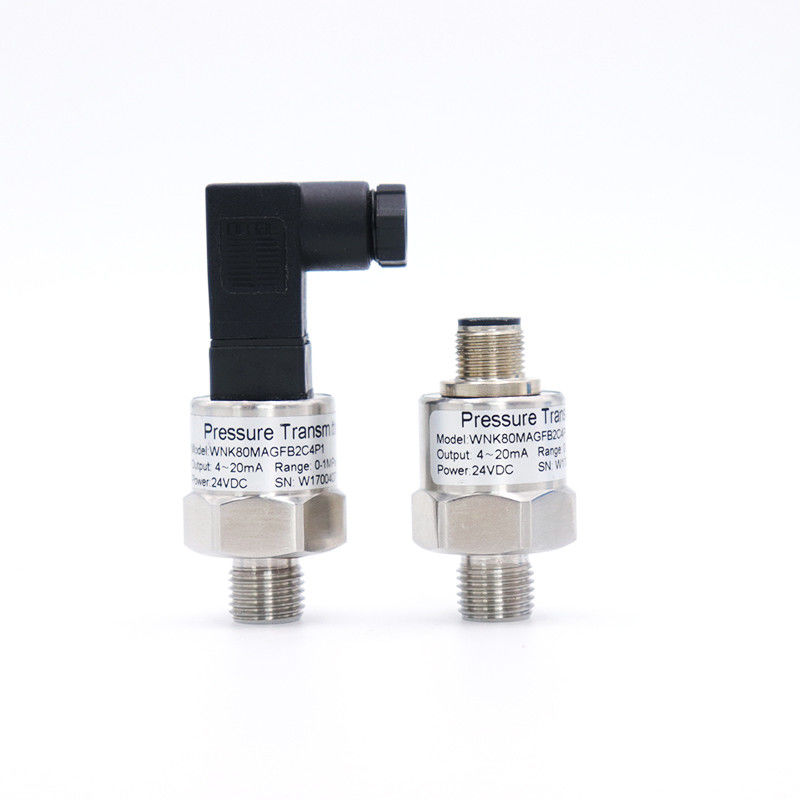

Smart drinking water pressure sensor I2C output low consumption transducer

Product Description

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.

With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

Applicable media	Liquid, gas and steam
Pressure range00	0-15Mpa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure and sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply	24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)	0.5%FS-1%FS
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection	G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material	304 stainless steel(316SS for inner core)
Protection	IP65

Smart drinking water pressure sensor I2C output low consumption transducer 0

Application in samrt water system:

Smart drinking water pressure sensor I2C output low consumption transducer 1

Smart drinking water pressure sensor I2C output low consumption transducer 2

Smart drinking water pressure sensor I2C output low consumption transducer 3

Company introduction:

Smart drinking water pressure sensor I2C output low consumption transducer 4

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
