Rumah > Produk > Submersible Level Sensor >

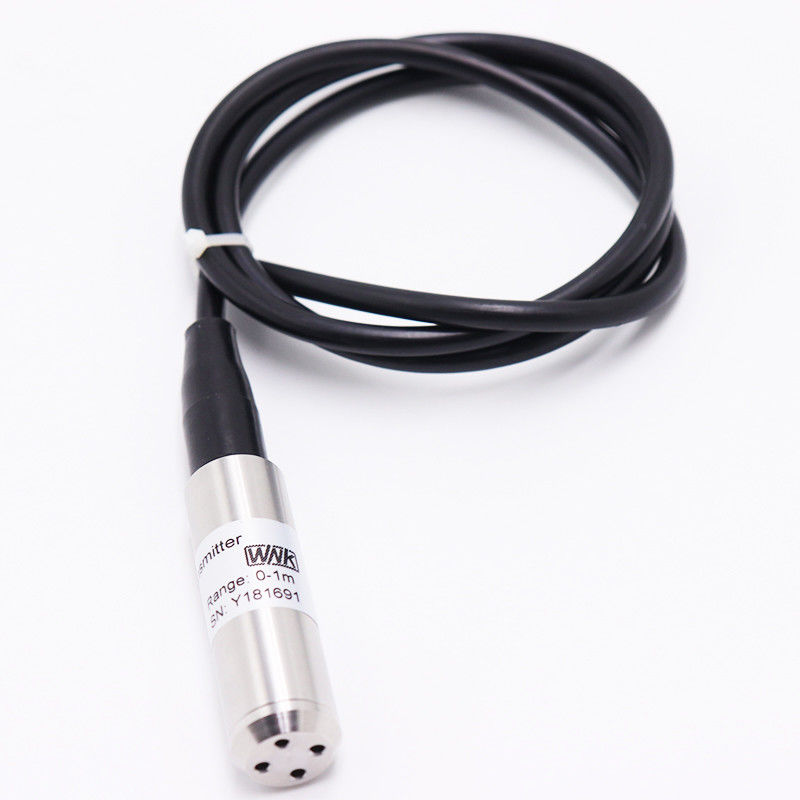

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well

stainless steel level sensor

liquid level sensor

Submersible Level Sensor Stainless Steel Housing

Tempat asal:

Cina

Nama merek:

WNK

Sertifikasi:

CE

Nomor model:

WNK8010

Hubungi kami
Permintaan Penawaran
24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well
24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well 24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well
Product Details
Analog:
4-20mA, 1-5V, 0,5-4,5, 0-5V, 0-10V, I2C
Digital:
Hart, RS485 dll
Rentang ukuran:
0-1 ~ 200MH2O
Media:
Cair, air
Ketepatan:
±0,25% FS/tahun, ±0,5% FS/tahun
Bahan perumahan:
Baja Tahan Karat
Catu Daya:
24V/12V/5V/3.3V
Perlindungan:
IP68
Menyoroti:

stainless steel level sensor

,

liquid level sensor

,

Submersible Level Sensor Stainless Steel Housing

Payment & Shipping Terms
Kuantitas min Order
1 buah
Kemasan rincian
paket standar ekspor
Waktu pengiriman
5-8 hari kerja
Menyediakan kemampuan
1000 buah per minggu.
RELATED PRODUCTS
Harga bagus IP68 Stainless steel Dirty Water Submersible Level Sensor on line Video

IP68 Stainless steel Dirty Water Submersible Level Sensor

Dapatkan Harga Terbaik
Harga bagus 24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well on line Video

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well

Dapatkan Harga Terbaik
Harga bagus 0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485 on line Video

0.5-4.5V 4-20ma Submersible Water Level Transmitter With Rs485

Dapatkan Harga Terbaik
Harga bagus 20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile on line Video

20mA 5V River Lake Submersible Water Pressure Sensor With Compact Profile

Dapatkan Harga Terbaik
Hubungi kami
Hubungi Sekarang
Product Description

24V Voltage Submersible Water Level Sensor/Level Transmitter for Tank/Deep Well/Pump

Product Description

1. Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element.

2. This product comes with compact profile, easy to install,it can measure the level height directly when through into the liquor.









Product Specification

Output signals
Output 4-20mA, 0-10mA, 0-5V, 1-5V,Customization
Measured range
Measured range 0-0.5~200mH2O
Max overload 150% of sensor range
Parameters
Applicable media Liquid, Water
Accuracy ±0.2% FS/year, ±0.5% FS/year
Stability ±0.25% FS/year
Housing material Stainless steel
Cable material Polyvinyl Fluoride, PTFE
Power supply 24V DC
Ambient temperature -20~85℃
Process temperature -20~85℃
Compensation temperature -20~85℃
Protection class IP68

Product Dimension & Installation

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well 0

Ordering sheet
24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well 1
Packaging & Shipping

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well 2



Company Information

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well 3

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well 4



FAQ

Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer with more than 14 years of experience.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: What is yor MOQ?

A: We have no MOQ limits,1 pc for testing is acceptable.

Tags：

stainless steel level sensor

liquid level sensor

submersible level transmitter
