Name: Absolute Smart Pressure Transmitter Liquid Explosion Proof With Display
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK4S
Price: 45.00 USD
Availability: InStock

Rumah > Produk > Smart Pressure Transmitter >

Absolute Smart Pressure Transmitter Liquid Explosion Proof With Display

smart type pressure transmitter

digital pressure transmitter

Tempat asal:

ANHUI, CINA

Nama merek:

WNK

Nomor model:

WNK4S

Hubungi kami

Permintaan Penawaran

Absolute Smart Pressure Transmitter Liquid Explosion Proof With Display

Product Details

Nama Produk:

Pemancar tekanan WNK4S

Pengukuran tekanan:

Cair, gas dan uap

Kisaran tekanan:

-100kpa ~ 70Mpa

Ketepatan:

0,2%

Keluaran:

4~20mA, Modbus

Catu Daya:

10.5-55V DC 10.5-30V DC

Koneksi mekanis:

G1/2, G1/4, 1/2NPT dll

Bahan perumahan:

Aluminium14

Peringkat Perlindungan:

IP66/67

Suhu Penyimpanan:

-45 hingga 85ºC, -40 hingga 80ºC untuk header LCD

Menyoroti:

smart type pressure transmitter

digital pressure transmitter

Payment & Shipping Terms

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Setiap set dalam satu kemasan karton individu dengan perlindungan

Waktu pengiriman

Untuk dinegosiasikan

Syarat-syarat pembayaran

T/T, Western Union, MoneyGram

Menyediakan kemampuan

-45 hingga 85ºC, -40 hingga 80ºC untuk header LCD

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

Dapatkan Harga Terbaik

Video

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

Dapatkan Harga Terbaik

Video

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

Dapatkan Harga Terbaik

Video

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

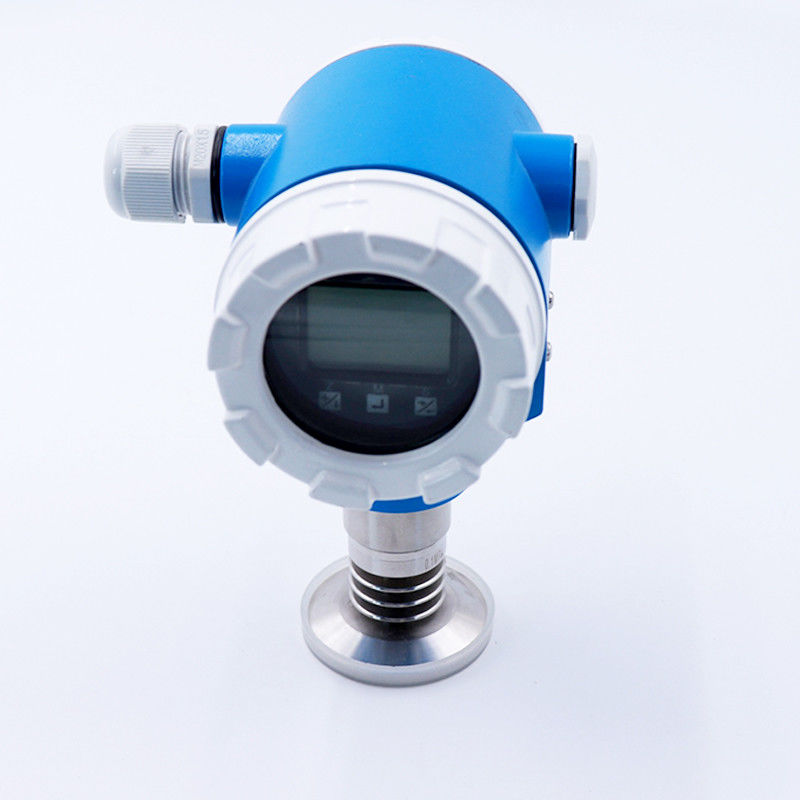

WNK4S Absolute Pressure Transmitter Liquid Explosion proof with Display

WNK4S pressure transmitter is the cost-effective model of pressure transmitters provided by Hefei WNk Smart Technology Co., ltd. It transforms the physical signal of pressure , differential pressure and level etc into standard signal, by collecting cell sensor and digital processing circuit.

Product Description

WNK4S pressure transmitters are suitable for:
1.Gauge,absolute and differential pressure measurement in gases,steam or liquids in areas of process control field.
2.Level,volume or mass mearsurement in liquids.

Product Name	4-20mA DC MODBUS Protocol Low Pressure Transmitter for HVAC
Pressure measurment	liquid, gas and steam
Pressure range	-100kPa~70MPa
Accuracy	0.2%
Output	4~20mA, Modbus
Power supply	10.5-55V DC 10.5-30V DC
Mechanical connection	G1/2, G1/4, 1/2NPT etc
Housing material	Aluminum14
Ingress Protection	IP66/67
Ex-proof	ExiaII CT4/CT6, ExidIICT6
Ambient temperature	-40 to 85ºC,-40 to 80ºCfor LCD header
Storage temperature	-45 to 85ºC,-40 to 80ºC for LCD header

Absolute Smart Pressure Transmitter Liquid Explosion Proof With Display 2
