Name: Stable Smart Pressure Transmitter Smart Pressure Transducer -100kPa - 70MPa Pressure Range
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK4S
Price: 45.00 USD
Availability: InStock

Rumah > Produk > Smart Pressure Transmitter >

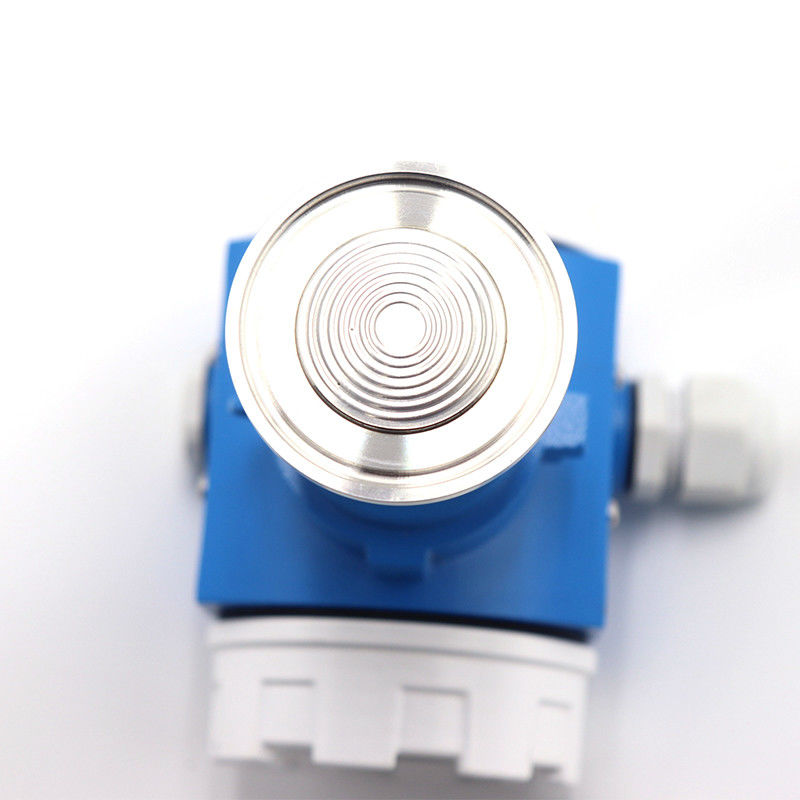

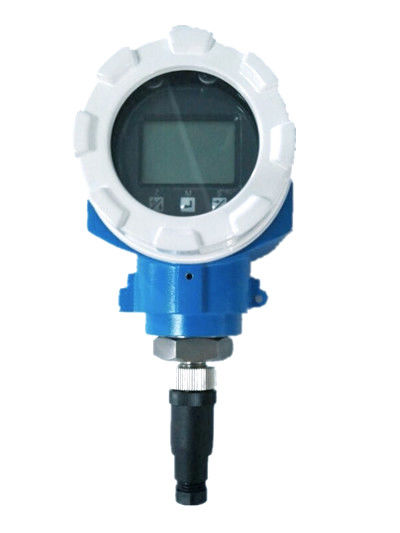

Stable Smart Pressure Transmitter Smart Pressure Transducer -100kPa - 70MPa Pressure Range

smart type pressure transmitter

digital pressure transmitter

Tempat asal:

ANHUI, CINA

Nama merek:

WNK

Nomor model:

WNK4S

Hubungi kami

Permintaan Penawaran

Stable Smart Pressure Transmitter Smart Pressure Transducer -100kPa - 70MPa Pressure Range

Product Details

Nama Produk:

Pemancar tekanan WNK4S

Pengukuran tekanan:

Cair, gas dan uap

Kisaran tekanan:

-100kpa ~ 70Mpa

Ketepatan:

0,2%

Keluaran:

4~20mA, Modbus

Catu Daya:

10.5-55V DC 10.5-30V DC

Bahan perumahan:

Aluminium14

Peringkat Perlindungan:

IP66/67

Ex-tahan:

ExiaII CT4/CT6, ExidIICT6

Suhu Sekitar:

-40 hingga 85ºC, -40 hingga 80ºCuntuk header LCD

Menyoroti:

smart type pressure transmitter

digital pressure transmitter

Payment & Shipping Terms

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Setiap set dalam satu kemasan karton individu dengan perlindungan

Waktu pengiriman

Untuk dinegosiasikan

Syarat-syarat pembayaran

T/T, Western Union, MoneyGram

Menyediakan kemampuan

-45 hingga 85ºC, -40 hingga 80ºC untuk header LCD

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

Dapatkan Harga Terbaik

Video

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

Dapatkan Harga Terbaik

Video

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

Dapatkan Harga Terbaik

Video

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

Factory reset supportive stable pressure transmitter

WNK4S pressure transmitter is the cost-effective model of pressure transmitters provided by Hefei WNk Smart Technology Co., ltd. It transforms the physical signal of pressure , differential pressure and level etc into standard signal, by collecting cell sensor and digital processing circuit.

WNK4S series has the precision and signal uniformity by applying advanced specified integrated circuit digital technology.

Product Description

WNK4S pressure transmitters are suitable for:
1.Gauge,absolute and differential pressure measurement in gases,steam or liquids in areas of process control field.
2.Level,volume or mass mearsurement in liquids.

Product Name	4-20mA DC MODBUS Protocol Low Pressure Transmitter for HVAC
Pressure measurment	liquid, gas and steam
Pressure range	-100kPa~70MPa
Accuracy	0.2%
Output	4~20mA, Modbus
Power supply	10.5-55V DC 10.5-30V DC
Mechanical connection	G1/2, G1/4, 1/2NPT etc
Housing material	Aluminum14
Ingress Protection	IP66/67
Ex-proof	ExiaII CT4/CT6, ExidIICT6
Ambient temperature	-40 to 85ºC,-40 to 80ºCfor LCD header
Storage temperature	-45 to 85ºC,-40 to 80ºC for LCD header

Stable Smart Pressure Transmitter Smart Pressure Transducer -100kPa - 70MPa Pressure Range 5
