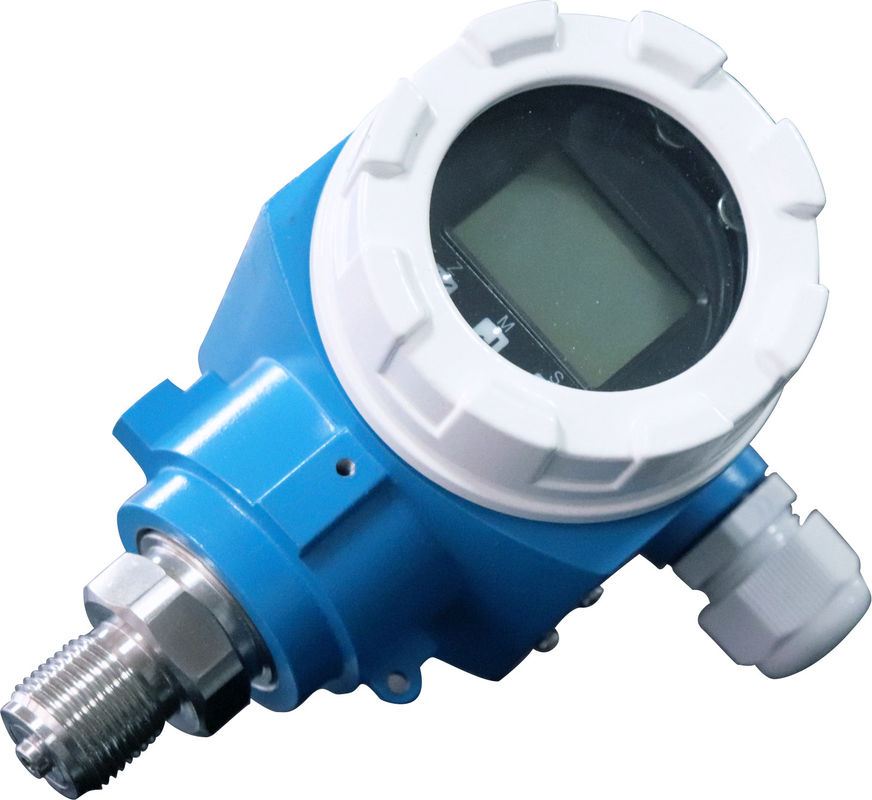

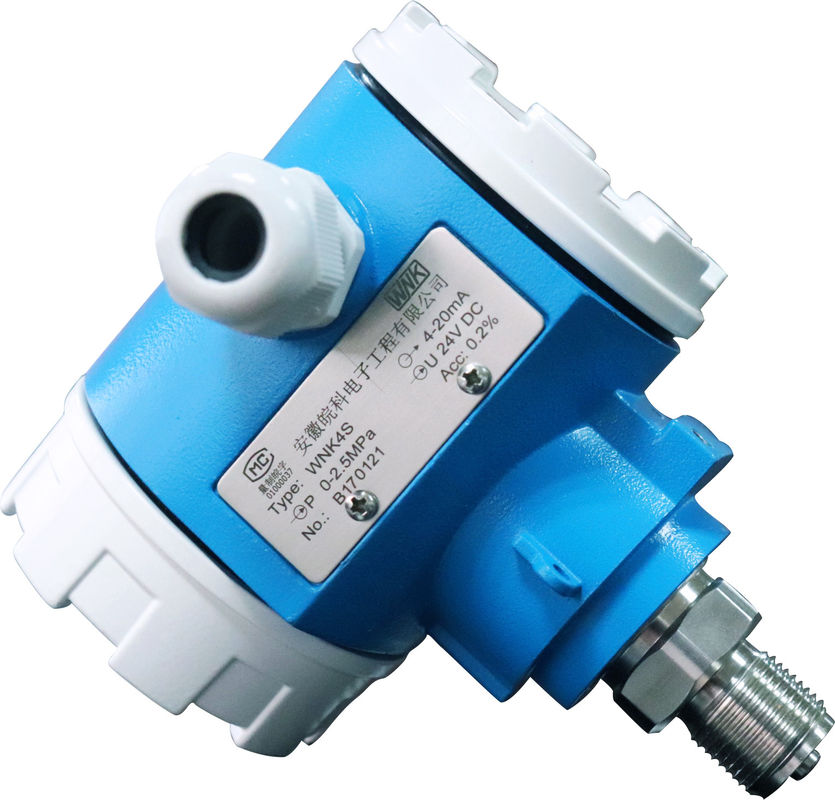

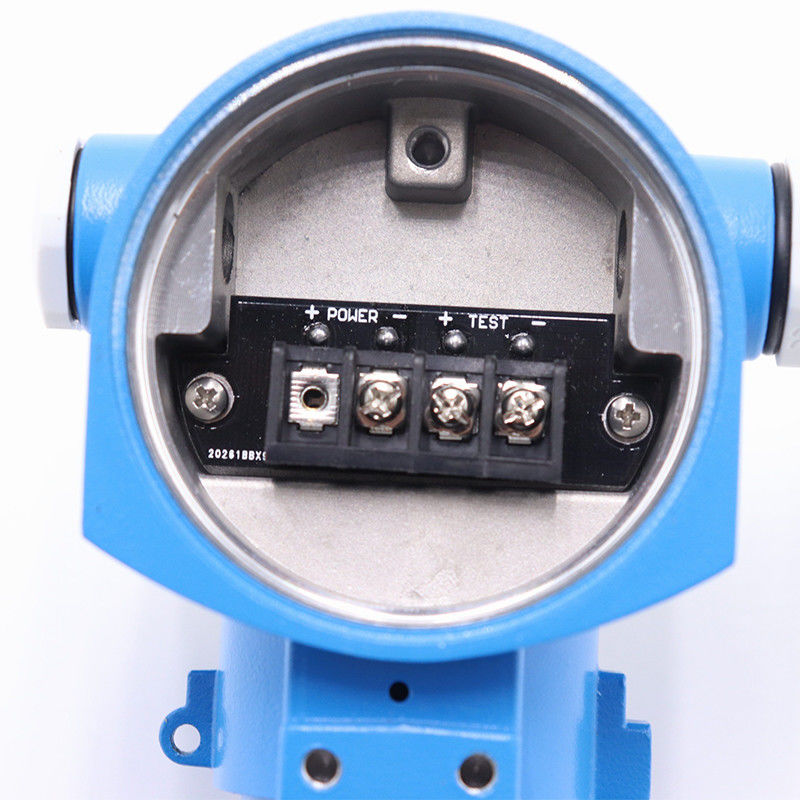

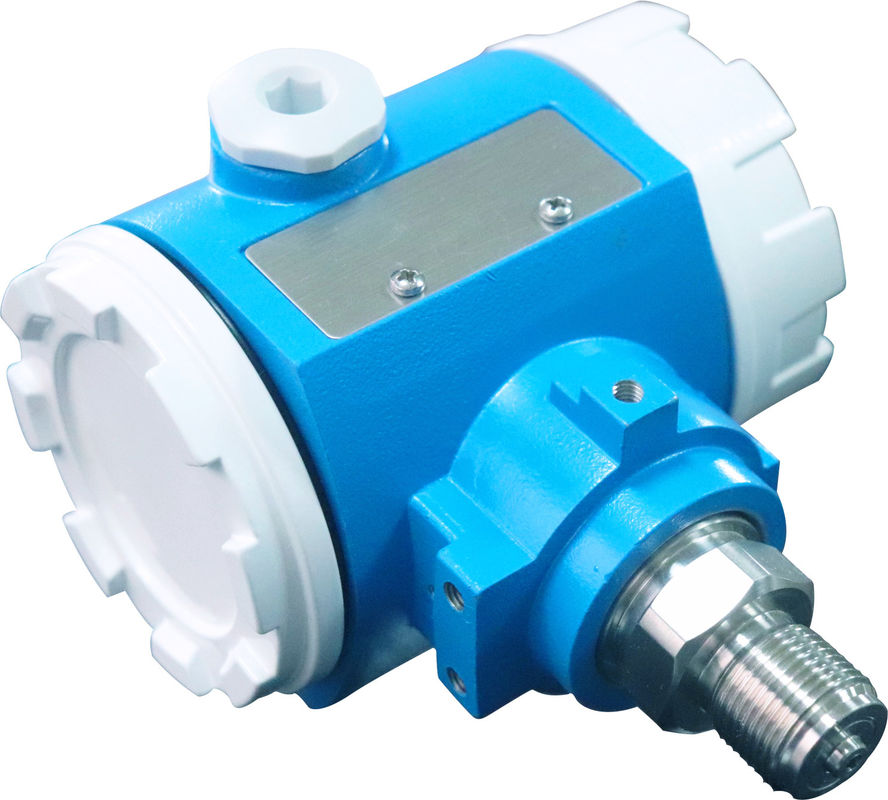

Long Term Stability Smart Pressure Transmitter With Modbus Communication

Long Term Stability Smart Pressure Transmitter With Modbus Communication

smart type pressure transmitter

digital pressure transmitter

Tempat asal:

ANHUI, CINA

Nama merek:

WNK

Nomor model:

WNK4S

Hubungi kami
Permintaan Penawaran
Long Term Stability Smart Pressure Transmitter With Modbus Communication Long Term Stability Smart Pressure Transmitter With Modbus Communication Long Term Stability Smart Pressure Transmitter With Modbus Communication Long Term Stability Smart Pressure Transmitter With Modbus Communication
Product Details
Nama Produk:
Pemancar tekanan WNK4S
Pengukuran tekanan:
Cair, gas dan uap
Kisaran tekanan:
-100kpa ~ 70Mpa
Ketepatan:
0,2%
Keluaran:
4~20mA, Modbus
Catu Daya:
10.5-55V DC 10.5-30V DC
Koneksi mekanis:
G1/2, G1/4, 1/2NPT dll
Peringkat Perlindungan:
IP66/67
Ex-tahan:
ExiaII CT4/CT6, ExidIICT6
Suhu Penyimpanan:
-45 hingga 85ºC, -40 hingga 80ºC untuk header LCD
Menyoroti:

smart type pressure transmitter

,

digital pressure transmitter

Payment & Shipping Terms
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
Setiap set dalam satu kemasan karton individu dengan perlindungan
Waktu pengiriman
Untuk dinegosiasikan
Syarat-syarat pembayaran
T/T, Western Union, MoneyGram
Menyediakan kemampuan
-45 hingga 85ºC, -40 hingga 80ºC untuk header LCD
RELATED PRODUCTS
Harga bagus G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam on line Video

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

Dapatkan Harga Terbaik
Harga bagus Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT on line Video

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

Dapatkan Harga Terbaik
Harga bagus Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE on line Video

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

Dapatkan Harga Terbaik
Harga bagus WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor on line Video

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

Dapatkan Harga Terbaik
Hubungi kami
Hubungi Sekarang
Product Description

0.2%FS long-term stability smart pressure transmitter with modbus commnuncation

WNK4S pressure transmitter is the cost-effective model of pressure transmitters provided by Hefei WNk Smart Technology Co., ltd. It transforms the physical signal of pressure , differential pressure and level etc into standard signal, by collecting cell sensor and digital processing circuit.

WNK4S series has the precision and signal uniformity by applying advanced specified integrated circuit digital technology. Each set of transmitter is ambient temperature compensated in our factory, to ensure max precision and mini drift in wide working temperature range.


Product Description



Long Term Stability Smart Pressure Transmitter With Modbus Communication 0
Long Term Stability Smart Pressure Transmitter With Modbus Communication 1

WNK4S pressure transmitters are suitable for:
1.Gauge,absolute and differential pressure measurement in gases,steam or liquids in areas of process control field.
2.Level,volume or mass mearsurement in liquids.

Product Name
4-20mA DC MODBUS Protocol Low Pressure Transmitter for HVAC
Pressure measurment
liquid, gas and steam
Pressure range
-100kPa~70MPa
Accuracy
0.2%
Output
4~20mA, Modbus
Power supply
10.5-55V DC 10.5-30V DC
Mechanical connection
G1/2, G1/4, 1/2NPT etc
Housing material
Aluminum14
Ingress Protection
IP66/67
Ex-proof
ExiaII CT4/CT6, ExidIICT6
Ambient temperature
-40 to 85ºC,-40 to 80ºCfor LCD header
Storage temperature
-45 to 85ºC,-40 to 80ºC for LCD header



Long Term Stability Smart Pressure Transmitter With Modbus Communication 2Long Term Stability Smart Pressure Transmitter With Modbus Communication 3

Long Term Stability Smart Pressure Transmitter With Modbus Communication 4


 Long Term Stability Smart Pressure Transmitter With Modbus Communication 5Long Term Stability Smart Pressure Transmitter With Modbus Communication 6Long Term Stability Smart Pressure Transmitter With Modbus Communication 7Long Term Stability Smart Pressure Transmitter With Modbus Communication 8Long Term Stability Smart Pressure Transmitter With Modbus Communication 9Long Term Stability Smart Pressure Transmitter With Modbus Communication 10
