Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current

mini pressure sensor

air pressure transmitter

Tempat asal:

Tiongkok (Daratan)

Nama merek:

WNK

Sertifikasi:

CE

Nomor model:

WNK83MA

Hubungi kami
Permintaan Penawaran
Product Details
Ketepatan:
1%
Media terukur:
Cair, gas dan uap
Kisaran tekanan:
0-2000kPa
Sinyal Keluaran:
0.5-4.5 VDC
Catu Daya:
4.75-5.25 VDC
Suhu pengoperasian:
-20 hingga 70 ℃
Koneksi proses:
G1/4
Sambungan Listrik:
Outlet kabel
Maks Saat Ini:
15mA
Media Pengukur:
Gas, air atau cairan
Menyoroti:

mini pressure sensor

,

air pressure transmitter

Payment & Shipping Terms
Kuantitas min Order
1 buah
Harga
negotiable
Kemasan rincian
Kotak karton standar ekspor
Waktu pengiriman
5-8 hari kerja
Syarat-syarat pembayaran
T/T, Western Union
Menyediakan kemampuan
5000+Potongan+per Bulan
Product Description
Product Description

Brass cable outlet 15mA max pressure sensor for water liquid tank

As a brass practical pressure transmitter, WNK83mA G quarter cable outlet has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its supply voltage is 4.75-5.25 voltage DC and the maximum supply current is 15 milliamp, besides the voltage output is 0.5-4.5voltage DC. It can withstand strong working pressures up to 2000kpa. Its linearity,hysteresis,repetitiveness accuracy is 1%. It can act on gas, water or liquid and has strong stability.


Applicable media Liquid, gas and steam
Pressure range 0-2000kPa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply 4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Compensation temperature -20~70ºC
Ambient temperature -40~110ºC
Working temperature -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~85ºC)
Electrical connection Cable outlet
Mechanical connection G1/4
Housing material Brass

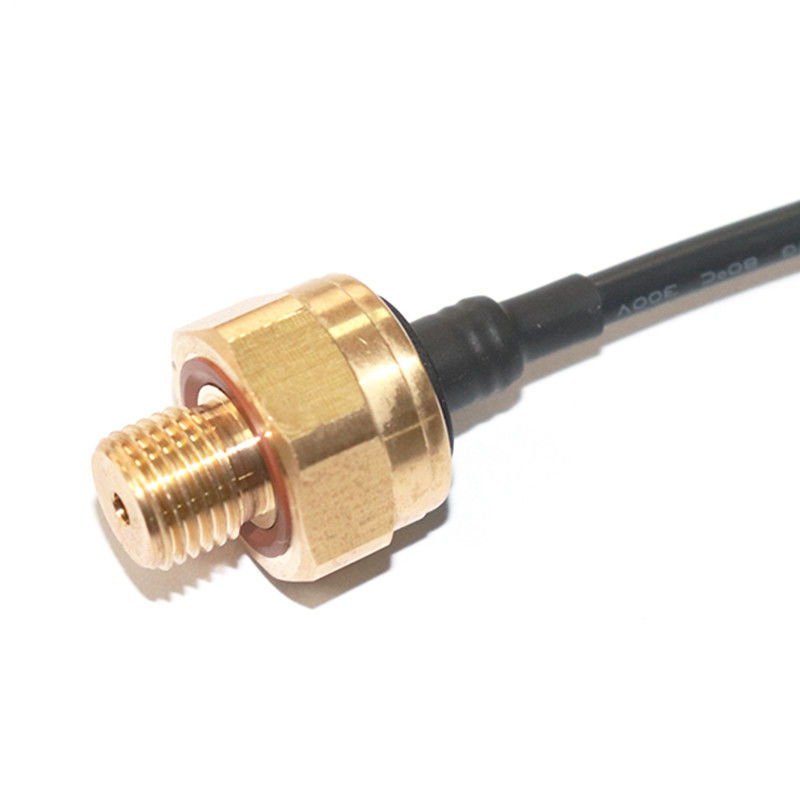

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current 0

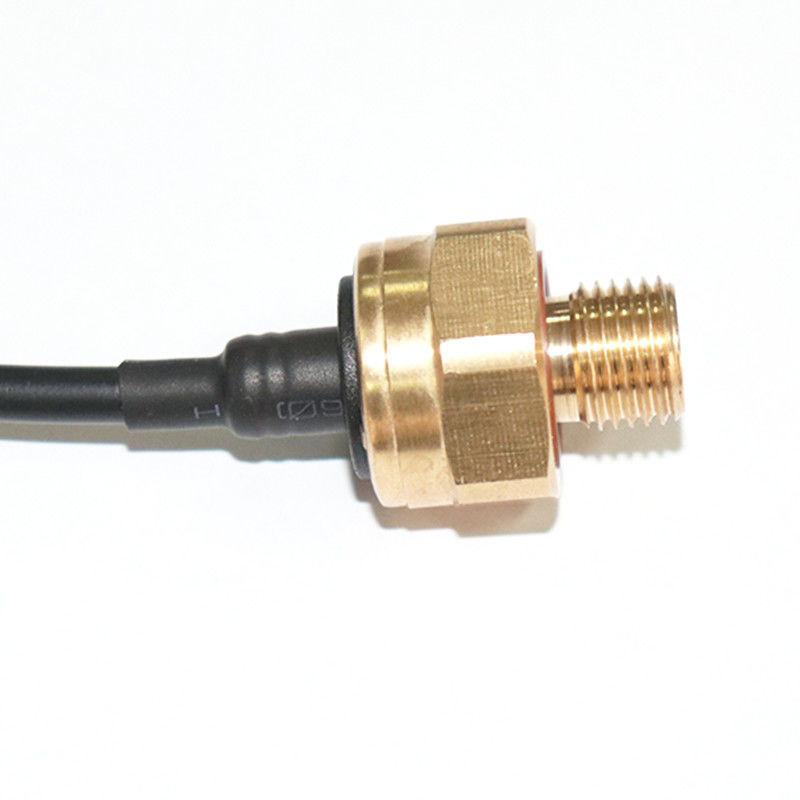

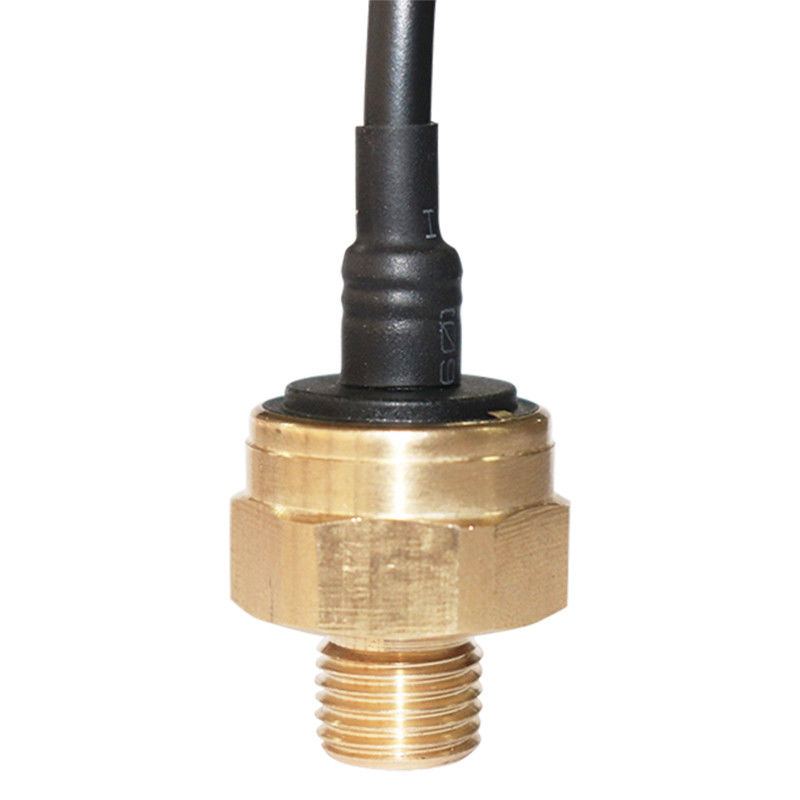

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current 1Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current 2Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current 3Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current 4


Company Information

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current 5

Factory

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current 6

Exhibition

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current 7

Our Certificate

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current 8

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
