Rumah > Produk > Air Pressure Sensor >

Auto Switch Pressure Sensor Cooling System OEM High Stability LED Display

air pressure transmitter

mini pressure sensor

Tempat asal:

Anhui, Tiongkok

Nama merek:

WNK

Sertifikasi:

CE, SGS, ISO9001

Nomor model:

WNK805

Hubungi kami

Permintaan Penawaran

Product Details

Nomor model:

WNK805

Ketepatan::

0,2%FS,0,5%FS

Media terukur:

Cair, gas dan uap

Sinyal Keluaran:

4~20mA,1-5V (opsional)

Kisaran tekanan:

-100KPa~60MPa

Catu Daya:

10,5-55V DC, 10,5-30V DC

Kelas Perlindungan:

IP65

Suhu Sekitar:

-40~85℃

Bahan Perumahan::

Baja Tahan Karat 304

Menyoroti:

air pressure transmitter

mini pressure sensor

Payment & Shipping Terms

Kuantitas min Order

1 buah

Harga

negotiable

Kemasan rincian

Pengepakan Layak Laut atau Pengepakan Layak Udara

Syarat-syarat pembayaran

D/A, L/C, T/T, Western Union, MoneyGram

Menyediakan kemampuan

5000 Potongan/potongan per Bulan Pemancar Tekanan

Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection

Dapatkan Harga Terbaik

Video

High Accuracy Air Pressure Sensor Packard Connector For Water Tank

Dapatkan Harga Terbaik

Video

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current

Dapatkan Harga Terbaik

Video

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

High quality cooling system OEM quality auto sensor switch oil pressure sensor suzuki

Products Description

WNK805mA IP65 Capacitive IIC Lora Small Size Pressure Sensor

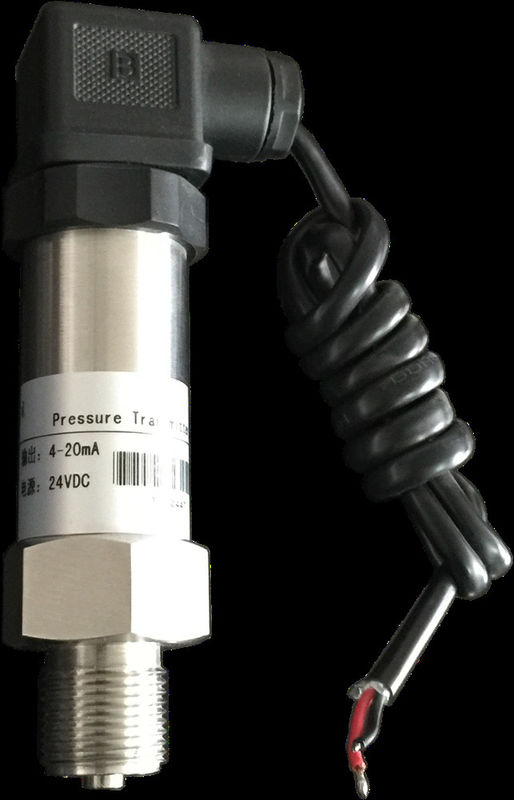

WNK805 Gauge/Absolute Pressure Transmitter (Diffused silicon sensor)
Applicable media	Liquid, Gas, Steam
Pressure range	-100kPa-0, 0-0.2~-100kPa, 0-0.2~1000kpa, 0-60MPa, 70MPa
Pressure measurement	Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Accuracy	0.2% FS, 0.5% FS
Stability	±0.25% FS/year
Zero drift	50% of full range span.
Max overload	200% of sensor range
Bandwidth / Response time	1 millisecond (Optional for analog type)
Output signals	4~20mA, 1-5V(optional)
Display	LED (Optional)
Housing material	304 stainless steel
Mechanical connection	M20×1.5; 1/2-18NPT, 1/4NPT, G1/4, Customize
Protection class	IP65
Power supply	Non-explosion: 10.5~45V DC
Power supply	EEX ia:8~30 V DC
Ambient temperature	-40~85℃
Process temperature	-40~85℃
Process temperature	-40~150℃ (diaphragm type, clamp type)
Compensation temperature	-10~70℃
Features	1. WNK805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit. 2.With precise temperature characteristic compensation, it can be used reliably and stably 3.It is suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media.

FAQ

Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
