Industrial Air Pressure Sensor -40 -135C Working Temperature For HVAC

air pressure transmitter

mini pressure sensor

Tempat asal:

HEFEI, CINA

Nama merek:

WNK

Sertifikasi:

CE, SGS, ISO9001

Nomor model:

WNK80MA

Hubungi kami

Permintaan Penawaran

Industrial Air Pressure Sensor -40 -135C Working Temperature For HVAC

Product Details

Kisaran tekanan:

-1bar - 60 Mpa

Keluaran:

I2C, SPI, 0,5-4.5V, 4-20ma dan lainnya

Waktu Respons:

≥1ms

Suhu sedang:

-40 -70

Jaminan:

1 Tahun

Ketepatan:

0,25%FS, 0,5%FS 1,0%FS

Perlindungan Kekayaan Intelektual:

IP65 IP67

Sambungan Listrik:

Paket, M12x1, Mini DIN43650, lainnya

Menyoroti:

air pressure transmitter

mini pressure sensor

Payment & Shipping Terms

Kuantitas min Order

5 potong

Harga

negotiable

Kemasan rincian

Pengepakan Layak Laut atau Pengepakan Layak Udara

Waktu pengiriman

7-10 hari kerja

Syarat-syarat pembayaran

T/T, Western Union, MoneyGram

Menyediakan kemampuan

5000 buah per bulan

Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection

Dapatkan Harga Terbaik

Video

High Accuracy Air Pressure Sensor Packard Connector For Water Tank

Dapatkan Harga Terbaik

Video

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current

Dapatkan Harga Terbaik

Video

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

Industrial Pressure Sensor -40 -135C Working Temperature For HVAC

Name: Industrial Air Pressure Sensor -40 -135C Working Temperature For HVAC
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Price: 20.00 USD
Availability: InStock

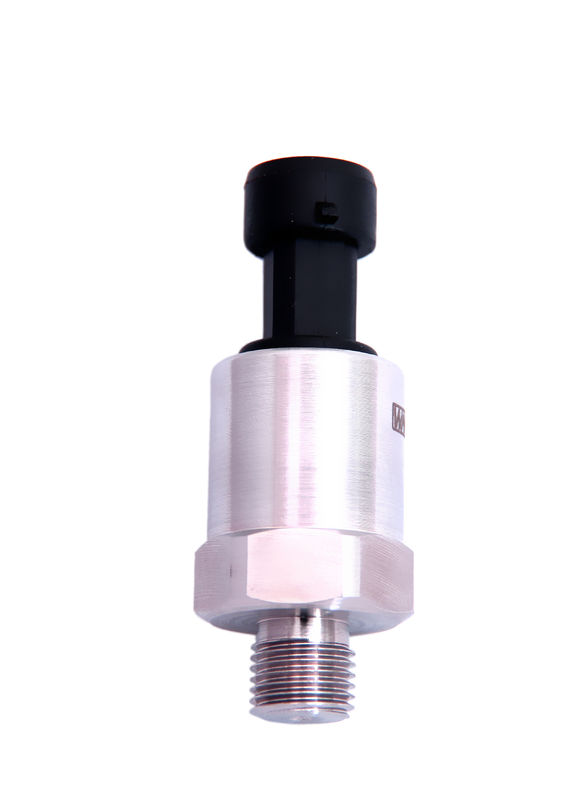

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

Industrial Air Pressure Sensor -40 -135C Working Temperature For HVAC 0

Applications

- Automobile, Compressor and Refrigeration Industry

- Engineering machinery

- Pressure control and monitor

- Water treatment system

- Hydraulic and Pneumatics

- HAVC and BAS Control

- Pump, fitness equipment, household appliances

- Factory Automation

- Fluid Control and Instrumentation Systems

Features :

1. Temperature range: -20 to 85℃
2. Wide operation temperature range -40~125℃
3. High performance ceramic capacitive pressure sensor
4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available
5. Small dimensions, dimension customizble
6. Optional packard, M12, Small Hirschman connectors
7. OEM, ODM, customization service available
8. Process connector: G1/4, M12*1.5, 1/4NPT, 7/16-20UNF female

Technical Data

Input
Pressure Type	Gauge Pressure , Absolute Pressure, Sealing Pressure
Pressure Range	-100Kpa - 60Mpa
Accuracy	0.2%, 0.5%
Power Supply	5VDC, 12-32VDC
Measuring Media	Gas, Steam, Liquid, Oil
Output
Analog	4-20mA, 0.5-4.5V / 1-5V / 0-5V
Digital	I²C, SPI
Operation Condition and Temperature
Compensation Temperature	-20...75℃
Storage Temperature	-45 ... 85℃
Ambient Temperature	-45 ... 85℃
Medium Temperature	-40 ... 125℃
Material and Protection
Ingress Protection	IP65, IP67
Housing Material	304SS, 316L

Company Information

Factory

Exhibition

Our Certificate

Industrial Air Pressure Sensor -40 -135C Working Temperature For HVAC 7

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
