Ceramic Capacitive Air Pressure Sensor 0 - 2MPa 0.5-4.5V Output 1/4NPT

Ceramic Capacitive Air Pressure Sensor 0 - 2MPa 0.5-4.5V Output 1/4NPT

air pressure transmitter

mini pressure sensor

Tempat asal:

Tiongkok (Daratan)

Nama merek:

WNK

Sertifikasi:

CE

Nomor model:

WNK83MA

Hubungi kami
Permintaan Penawaran
Product Details
Ketepatan:
1%
Media terukur:
Cair, gas dan uap
Kisaran tekanan:
0-2000kPa
Sinyal Keluaran:
0.5-4.5 VDC
Catu Daya:
4.75-5.25 VDC
Suhu pengoperasian:
-20 hingga 70 ℃
Bahan:
Kuningan
Koneksi proses:
1/4npt
Sambungan Listrik:
Parkard
Menyoroti:

air pressure transmitter

,

mini pressure sensor

Payment & Shipping Terms
Kuantitas min Order
1 buah
Harga
negotiable
Kemasan rincian
Kotak karton standar ekspor
Waktu pengiriman
5-8 hari kerja
Syarat-syarat pembayaran
T/T, Western Union
Menyediakan kemampuan
5000+Potongan+per Bulan
Product Description
Product Description

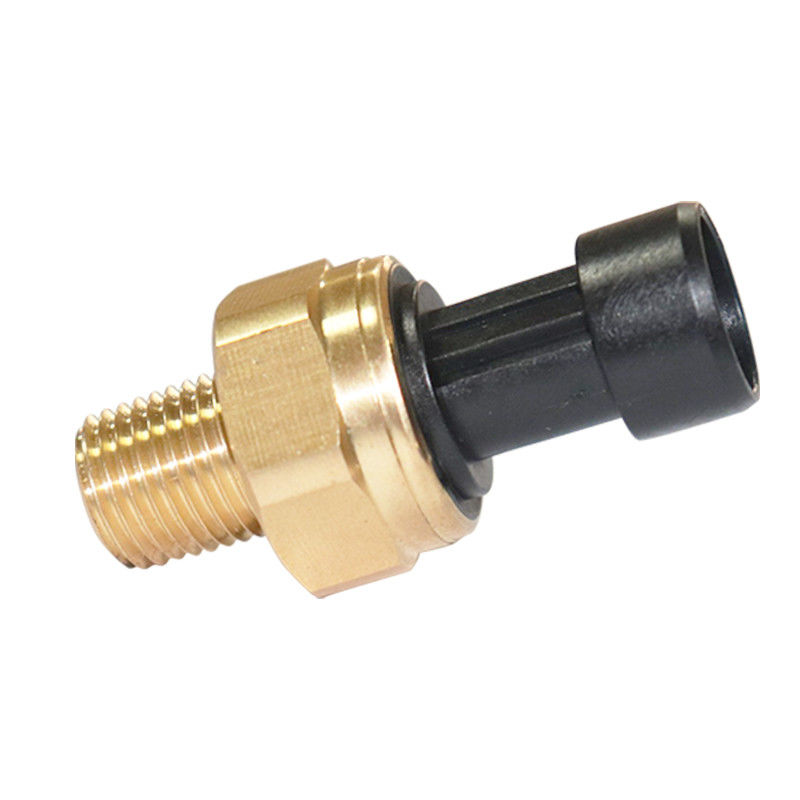

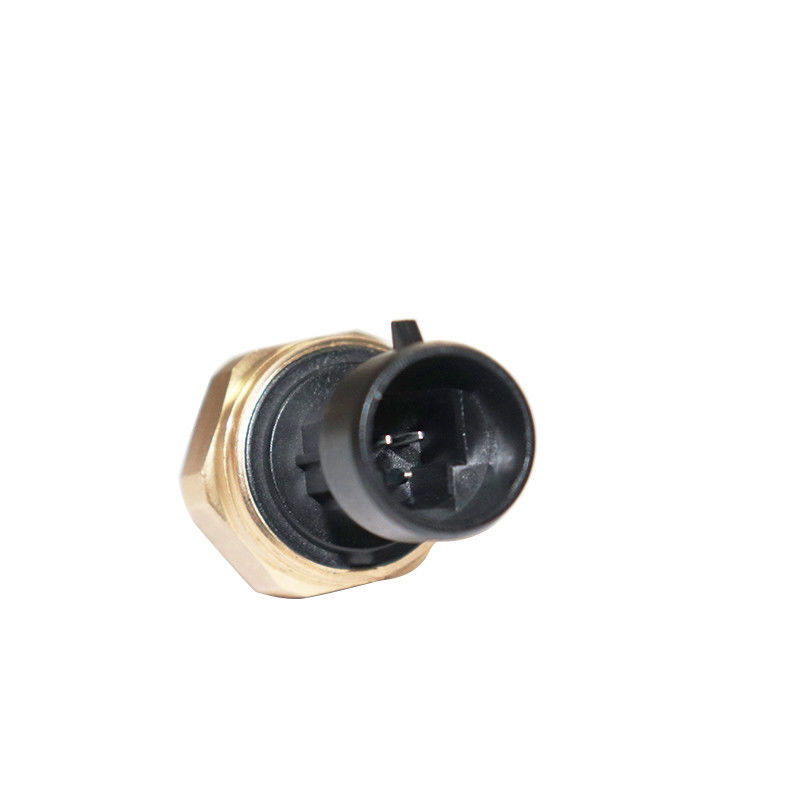

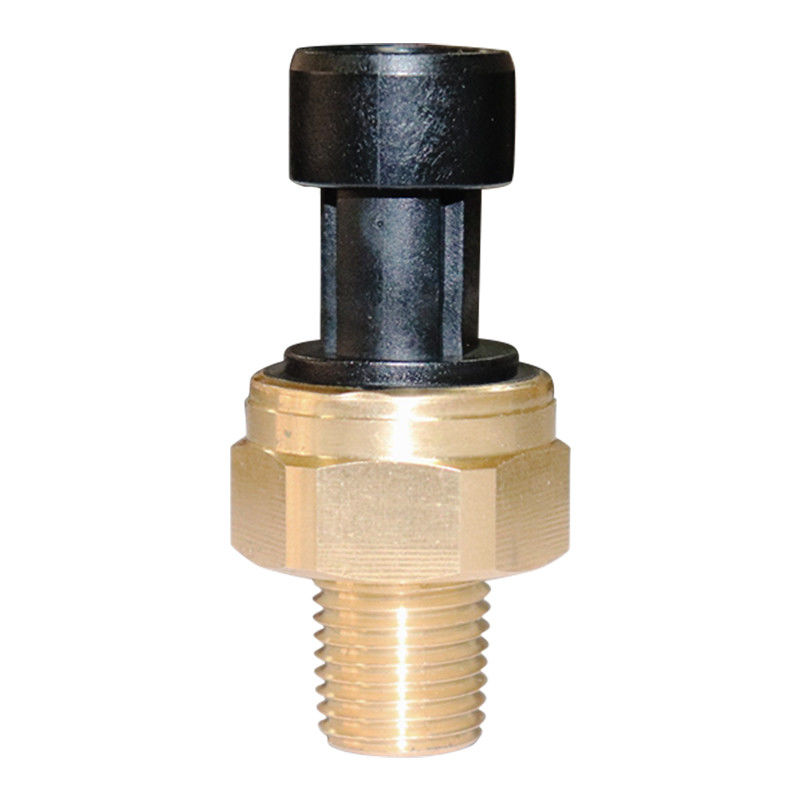

China Ceramic Capacitive Pressure Sensor 0-2MPa,0.5V-4.5V Output

WNK83mA quarter NPT pressure tranmitter as a practical pressure transmitter made of brass has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its supply voltage is 4.75-5.25v DC and the maximum supply current is 15mA. It can withstand strong working pressures up to 2000kpa. It can act on gas, water or liquid and has strong stability.


Applicable mediaLiquid, gas and steam
Pressure range0-2000kPa
CellCeramic capacitive pressure sensor
Pressure measurmentGauge Pressure, Sealing pressure
Output0.5-4.5V
Power supply4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability)1%F.S.
Compensation temperature-20~70ºC
Ambient temperature-40~110ºC
Working temperature-40~110ºC
Temperature drift(zero)±0.15% F.S. (-20~70ºC)
Temperature drift(full range)±0.15% F.S. (-20~85ºC)
Electrical connectionParkard
Mechanical connection1/4 NPT
Housing materialBrass

Ceramic Capacitive Air Pressure Sensor 0 - 2MPa 0.5-4.5V Output 1/4NPT 0


Ceramic Capacitive Air Pressure Sensor 0 - 2MPa 0.5-4.5V Output 1/4NPT 1Ceramic Capacitive Air Pressure Sensor 0 - 2MPa 0.5-4.5V Output 1/4NPT 2Ceramic Capacitive Air Pressure Sensor 0 - 2MPa 0.5-4.5V Output 1/4NPT 3Ceramic Capacitive Air Pressure Sensor 0 - 2MPa 0.5-4.5V Output 1/4NPT 4


Company Information

Ceramic Capacitive Air Pressure Sensor 0 - 2MPa 0.5-4.5V Output 1/4NPT 5

Factory

Ceramic Capacitive Air Pressure Sensor 0 - 2MPa 0.5-4.5V Output 1/4NPT 6

Exhibition

Ceramic Capacitive Air Pressure Sensor 0 - 2MPa 0.5-4.5V Output 1/4NPT 7

Our Certificate

Ceramic Capacitive Air Pressure Sensor 0 - 2MPa 0.5-4.5V Output 1/4NPT 8

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
