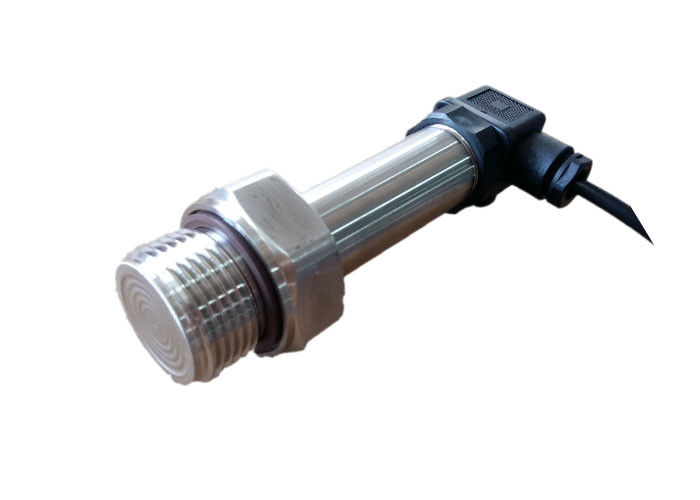

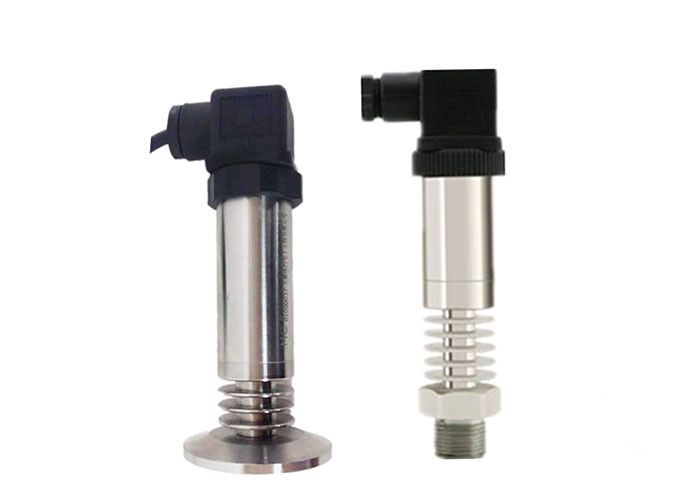

ISO9001 4~20mA 0.5-4.5V Digital Pressure Transmitter With Cooling Fins

ISO9001 4~20mA 0.5-4.5V Smart Pressure Transmiter Transducer With Cooling Fins

WNK805 is widely applied in gauge or absolute pressure measurement in fields of aerospace, communication, irrigation works, oil, chemical, power, meteorology, laboratory and etc. It could also be used for measuring negative pressure, vacuum degree and etc.

The product is designed to work well for measuring all kinds of air, liquids, gas, fluids, even though weak-corrosive media under all-weather environments. The temperature compensation resistance makes on the ceramic base, which is the excellent technology of the pressure transmitters. Widely output signals are available.


Specifications

1. Pressure range: 0-0.2 ~ -100kPa, 0-0.2 ~ 1000kPa 60000kPa
2. Pressure type: gauge, absolute, vacuum, negative pressure
3. Overload: 1.5~2 times
4. Non-linearity: 0.1, 0.25, 0.5, 1%FS
5. Delay / repeat: 0.05, 0.1%FS
6. Temp. compensation: -10-70 ºC
7. Working temperature: -40 ~ 85 ºC
8. Media: nonconducting and non-corrosion or weak corrosion gas
9. Comprehensive accuracy: 0.1, 0.25, 0.5, 1.0
10. Stability: 0.25%FS/ Year

Application

This type water pressure sensor can be used to measure & control the pressure of liquids in the fields :

• Water treatment
• Petroleum, Chemical industry
• Light industry, Metallurgy
• Electric power, Water supply
• Environmental protection
• Oil & Gas, Forklif

Advantages:

1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
