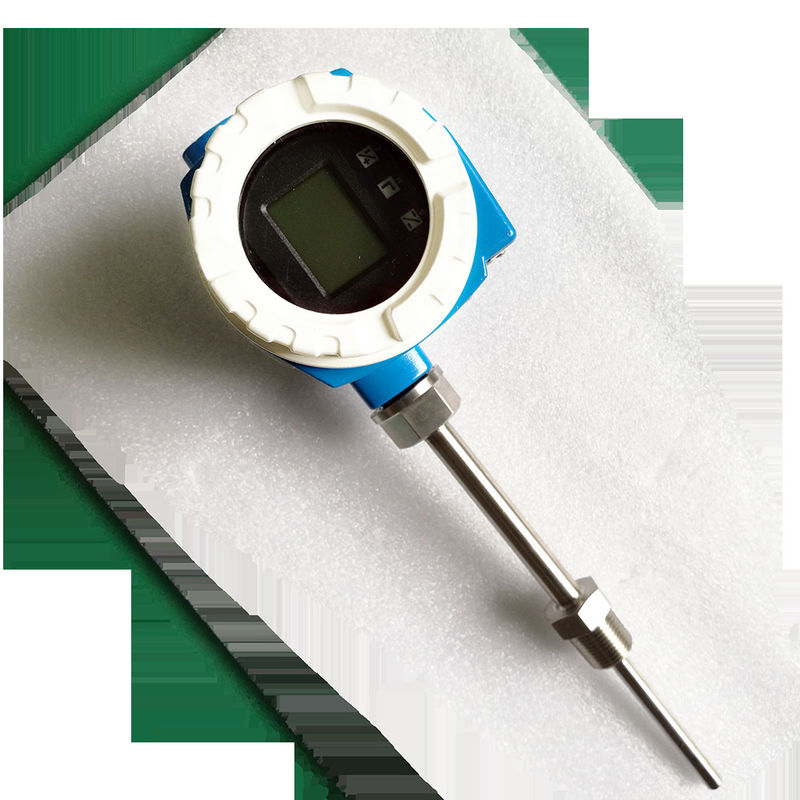

Name: Profibus Rtd Smart Temperature Transmitter 4-20ma Output Aluminium Housing
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK6T
Price: 403.00 USD
Availability: InStock

Rumah > Produk > Smart Temperature Transmitter >

Profibus Rtd Smart Temperature Transmitter 4-20ma Output Aluminium Housing

smart temperature sensor

industrial temperature sensor

Tempat asal:

HEFEI, CINA

Nama merek:

WNK

Sertifikasi:

ISO

Nomor model:

WNK6T

Hubungi kami

Permintaan Penawaran

Profibus Rtd Smart Temperature Transmitter 4-20ma Output Aluminium Housing

Product Details

Rentang Pengukuran:

0~1300ºC, (Termokopel K)

Rentang catu daya:

9~45V (9~24V, Contoh)

Sinyal Keluaran:

4~20mA/Hart/Profibus PA

Bahan:

Perumahan aluminium

Penyimpangan jangka panjang:

<0,1/tahun

Ex-tahan:

ExiaII CT4

Media:

Cair, gas dan uap

Menyoroti:

smart temperature sensor

industrial temperature sensor

Payment & Shipping Terms

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Kemasan Karton Ekspor Standar

Waktu pengiriman

5-7 hari kerja

Syarat-syarat pembayaran

T/T, Western Union, MoneyGram

Menyediakan kemampuan

5000 buah per bulan

44mm Diameter Hart RTD Liquid Gas Temperature Transmitter

Dapatkan Harga Terbaik

Wireless Smart Temperature Transmitter For Timer Button Alarm Wake

Dapatkan Harga Terbaik

CE Resolution 0.1C 18v 36V Temperature Humidity Sensor

Dapatkan Harga Terbaik

Steam 24V PT100 Head Mounted Temperature Transmitter

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

Profibus Rtd Smart Temperature Transmitter 4-20ma Output

Description

WNK PROFIBUS-PA field bus WNK6T temperature transmitter is approved by PROFIBUS Nutzerorganisation e.V. For temperature sensor we can provide the thermal resister, thermocouple etc usually used in industry, we can also provide special sensor, including high temperature type,high pressure type,health type,with special material or with coating etc sensor. Customized sensor is also acceptable.

Features

1. High precision, digital precision up to :±0.01ºC
2. To reduce the overall cost of installation,maintenance and running
3. Install easily, more flexiable

4. LCD display, Menu-guided operation.

5, Self-diagnostics function

Data Sheet

Measuring media	liquid, gas and steam
Measuring range	-270~800 ºC (PT100 thermal resistor)
	0~1300ºC, (Thermocouple K)
Input	Thermocouple, RTD, MV, Resistive sensor
Power supply range	9~45V (9~24V, Ex)
Output signal	4~20mA/Hart/Profibus PA
Digital Accuracy	±0.01ºC, PT100 input
Internal cold end compensation error	<0.25ºC±0.1%/10ºC
Temperature drift	±0.05%/10ºCfull scale range
	0.1% between-10°C to 60°C
Effect of power supply on range	<0.005%/V full-scale range
Long term drift	<0.1/year
