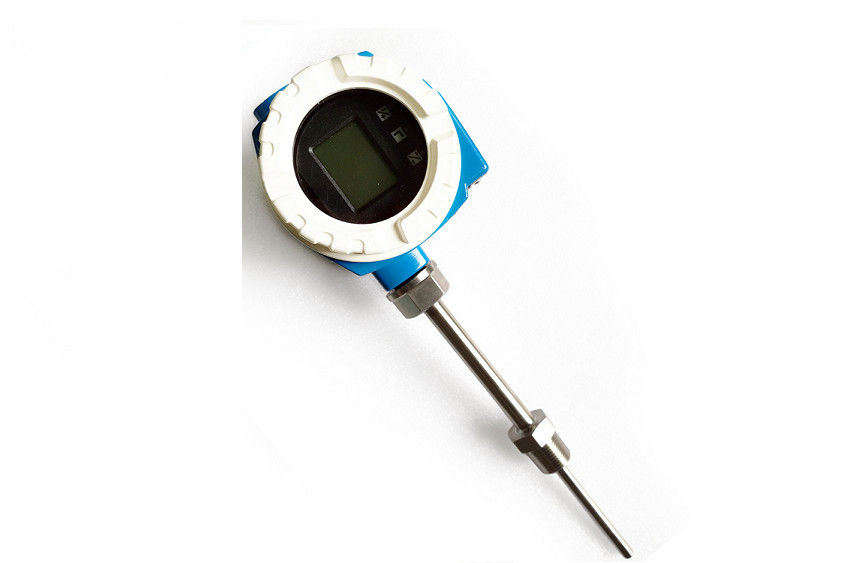

Name: LCD 4-20ma PT100 RTD Smart Temperature Transmitter With Hart Protocol
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK6T
Price: 403.00 USD
Availability: InStock

Rumah > Produk > Smart Temperature Transmitter >

LCD 4-20ma PT100 RTD Smart Temperature Transmitter With Hart Protocol

liquid temperature sensor

industrial temperature sensor

Tempat asal:

HEFEI, CINA

Nama merek:

WNK

Sertifikasi:

ISO

Nomor model:

WNK6T

Hubungi kami

Permintaan Penawaran

LCD 4-20ma PT100 RTD Smart Temperature Transmitter With Hart Protocol

Product Details

Kisaran Suhu:

-270~800 ℃ (resistor termal PT100)

jenis:

Sensor Suhu

Mengukur akurasi:

0,2%FS

Bahan:

Perumahan aluminium

Keluaran sinyal:

4-20mA, rs485

Input tegangan:

24v (standar)

Ex-tahan:

ExiaII CT4

Ukur media:

Cair, gas dan uap

Menyoroti:

liquid temperature sensor

industrial temperature sensor

Payment & Shipping Terms

Kuantitas min Order

Harga

negotiable

Kemasan rincian

Kemasan Karton Ekspor Standar

Waktu pengiriman

3-8 Hari Kerja

Syarat-syarat pembayaran

T/T, Western Union, MoneyGram

44mm Diameter Hart RTD Liquid Gas Temperature Transmitter

Dapatkan Harga Terbaik

Wireless Smart Temperature Transmitter For Timer Button Alarm Wake

Dapatkan Harga Terbaik

CE Resolution 0.1C 18v 36V Temperature Humidity Sensor

Dapatkan Harga Terbaik

Steam 24V PT100 Head Mounted Temperature Transmitter

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

LCD 4-20ma PT100 RTD Smart Temperature Transmitter With Hart Protocol

WNK temperature transmitter is Cost-effective model. For temperature sensor we can provide the thermal resister, thermocouple etc usually used in industry, we can also provide special sensor, including high temperature type,high pressure type,health type,with special material or with coating etc sensor. Customized sensor is also acceptable.

Features

1. Long-term drift<0.1/year
2. Install easily, more flexiable
3. 4~20mA/RS485 output

4. Self-diagnostics function

Specifications

Measuring media	liquid, gas
Measuring range	-270~800 ℃ (PT100 thermal resistor)
	0~1300℃, (Thermocouple K)
Power supply range	9~45V (9~24V, Ex)
Output signal	4~20mA, RS485
Digital Accuracy	±0.04℃, PT100 input
Internal cold end compensation error	＜0.25℃±0.1%/10℃
Temperature drift	±0.05%/10℃full-scale range
	0.1% between-10°C to 60°C
Effect of power supply on range	＜0.005%/V full-scale range
Long term drift	＜0.1/year
Allowable temperature	Ambient temperature		Storage temperature
	T4	Safe operation(T6)
	-40...85℃	-40...60℃	-40...95℃
Protection Class	IP66/67
Relative humidity	≤98%, condensation allowed
Electromagnetic compatibility	Accordance with EN 61 326

LCD 4-20ma PT100 RTD Smart Temperature Transmitter With Hart Protocol 0
