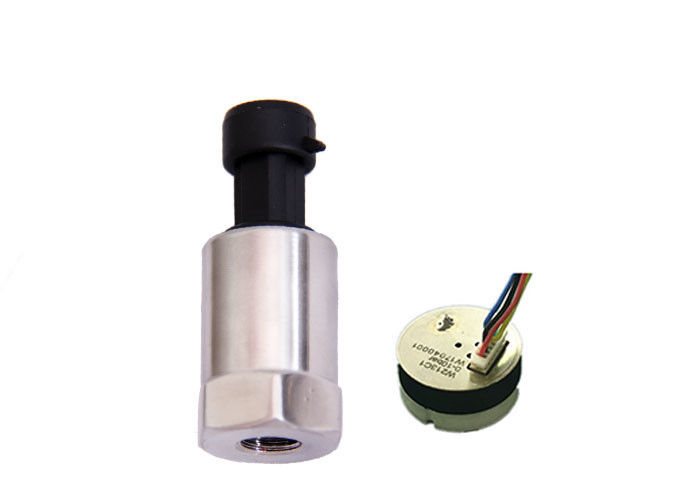

Name: WNK Air Pressure Sensors 4~20ma Low Pressure Differential For Wind And Dry Gas
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK808B
Price: 20.00 USD
Availability: InStock

Rumah > Produk > Air Pressure Sensor >

WNK Air Pressure Sensors 4~20ma Low Pressure Differential For Wind And Dry Gas

piezoresistive pressure sensor

mini pressure sensor

Tempat asal:

Anhui, Tiongkok

Nama merek:

WNK

Sertifikasi:

ISO,Exia

Nomor model:

WNK808B

Hubungi kami

Permintaan Penawaran

WNK Air Pressure Sensors 4~20ma Low Pressure Differential For Wind And Dry Gas

Product Details

masukan tekanan:

-10Pa~100Pa, -100kPa~+100kPa

Sinyal Keluaran:

4~20mA DC 2 kabel

Akurasi pengukuran:

00,2%, 0,5%

Aplikasi:

Pengukuran Gas, Angin

Perlindungan Masuknya:

IP65

Kekuatan:

24VDC

Menyoroti:

piezoresistive pressure sensor

mini pressure sensor

Payment & Shipping Terms

Kuantitas min Order

10 set

Harga

negotiable

Kemasan rincian

Kemasan Karton Ekspor Standar

Waktu pengiriman

3 ~ 5 hari kerja

Syarat-syarat pembayaran

T/T, Western Union, MoneyGram

Menyediakan kemampuan

200 set/hari

Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection

Dapatkan Harga Terbaik

Video

High Accuracy Air Pressure Sensor Packard Connector For Water Tank

Dapatkan Harga Terbaik

Video

Brass Cable Outlet Air Pressure Transducer Sensor 15mA Max Current

Dapatkan Harga Terbaik

Video

0-2000 KPa Air Pressure Sensor Anti - Corrosion And Vibration Resistance

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

4~20ma Low Pressure Differential Air Pressure Sensors Pressure Transmitter For Wind And Dry Gas

WNK268 ( WNK808B ) Wind Pressure Sensor uses silicon pressure sensor element and aluminum alloy housing structure. Two pressure ports with M10 thread, and can be installed directly in the instrument chassis or connected through the pressure tube. Choose products millivolts, standard voltage, current, frequency signal, to install and easy to use, widely used in the field of wind pressure control of the boiler air supply, mine ventilation, electricity, coal industry.

Specifications

Pressure range	-100KPa……0~1KPa……100KPa
Overload capacity	150%
linearity	<±0.1%FS
Repetition	<±0.05%FS
Delay	<±0.05%FS
Input impedance	0.6~6KΩ
Compensation temperature	-10°C~+70°C
Working temperature	-40°C~+85°C
Insulation resistance	>100MΩ/50V
Insulating strength	>500MΩ/500V
Pressure connection	The pagodas head with M10 thread
Electrical connection	Cable or connectors
Medium	Liquid compatible with 316 stainless steel
Protection Grade	IP65
Explosion-proof Grade	ExiallCT5

Application

It is the best micro pressure measurement equipmenttextile for textile machinery,natural gas pipeline monitoring,dust removal system, HVAC,clean laboratory and medical equipment etc.
