Name: Industrial Measure Smart Pressure Transmitter Explosion Proof with 4-20ma Output
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK55
Price: 45.00 USD
Availability: InStock

Rumah > Produk > Smart Pressure Transmitter >

Industrial Measure Smart Pressure Transmitter Explosion Proof with 4-20ma Output

smart type pressure transmitter

smart pressure sensor

Tempat asal:

HEFEI, CINA

Nama merek:

WNK

Sertifikasi:

CE, SGS

Nomor model:

WNK55

Hubungi kami

Permintaan Penawaran

Industrial Measure Smart Pressure Transmitter Explosion Proof with 4-20ma Output

Product Details

Masukan:

-100kpa...60Mpa

Keluaran sinyal:

4-20mA, 0,5-4,5V DC

Stabilitas jangka panjang:

0,075%

Perlindungan Masuknya:

IP67

Bagian yang dibasahi:

304SS, 316SS

Catu Daya:

24VDC

Komunikasi:

Hart Profibus FF

Menyoroti:

smart type pressure transmitter

smart pressure sensor

Payment & Shipping Terms

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Kemasan Karton Ekspor Standar

Waktu pengiriman

3 ~ 5 hari kerja

Syarat-syarat pembayaran

T/T, Western Union, MoneyGram

Menyediakan kemampuan

200 set/hari

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

Dapatkan Harga Terbaik

Video

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

Dapatkan Harga Terbaik

Video

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

Dapatkan Harga Terbaik

Video

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

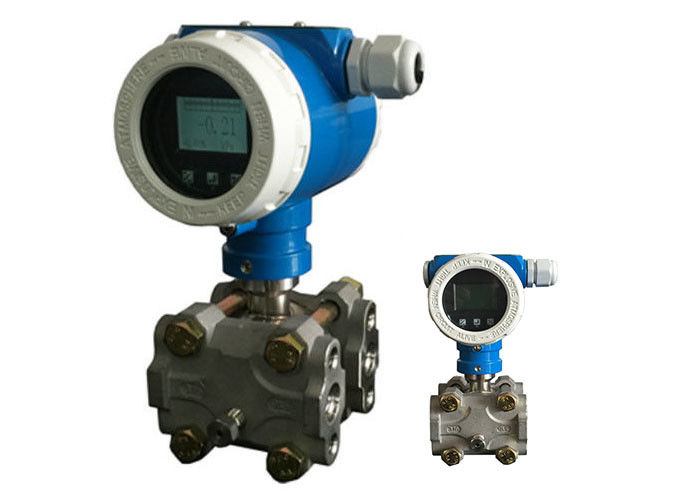

Explosion Proof Industrial Measure Smart Pressure Transmitter with 4-20ma Output

Product Features

1. High accuracy: up to 0.075%FS;
2. Output: 4~20mA, Hart, Profibus-Pa
3. Excellent long-term stability: long-term drift ≤±0.15%URL for 5 years
4. Range ratio: 100: 1;
5. Module design: C
8. High Temperature Resistance: Highest temperature up to 280℃ with diaphragm sealing;
9. High Pressure Ability: Max Pressure up to 700bar.

Applications
1. Gauge & absolute pressure measurement in gases, steam or liquids in all areas of of engineering process and measurement.
2. Level, volume or mass measurement in liquids.
3. Working with detecting element, measure the flow of gases, steam and liquid flow.( volume and mass flow)
4. High pressure up to 700bar.

Specifications

Applicable media	liquid, gas and steam
Pressure range	-0.1Kpa - High Pressure up to 700 Bar
Accuracy	0.075%, higher on request
Stability	±0.15% of URL for 5 years
Temperature drift	±0.03% of URL/10ºC
Output signals	4~20mA, Hart, Profibus-PA for option, FF per request
Display	LCD, or pointer optional
Housing material	Aluminum14
Mechanical connection	M20×1.5;G1/2;1/2NPT
Protection class	IP66/67
Ex-proof	Exia II CT4, other option per request
Power Supply	10.5-55V DC 10.5-30V DC
Ambient temperature	-40 to 85ºC,-40 to 80ºCfor LCD header
Storage temperature	-45 to 85ºC,-40 to 80ºC for LCD header ;
Measurement	with display: 9512652 (mm)
Measurement	without display: 9511552 (mm)
Net Weight	4kg (without bracket or process connection)
