Name: 4-20ma Hart Industrial Temperature Transmitter One Side Connected
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK-621
Price: 403.00 USD
Availability: InStock

Rumah > Produk > Head Mounted Temperature Transmitter >

4-20ma Hart Industrial Temperature Transmitter One Side Connected

high accuracy temperature transmitter

field mounted temperature transmitter

Tempat asal:

Anhui, Tiongkok

Nama merek:

WNK

Sertifikasi:

ISO

Nomor model:

WNK-621

Hubungi kami

Permintaan Penawaran

4-20ma Hart Industrial Temperature Transmitter One Side Connected

Product Details

Suhu:

50-500C

Akurasi temperatur:

0.1c

Sinyal Keluaran:

4-20mA 2-kawat

Jenis masukan:

PT100 PT1000 RTD

Catu Daya:

24VDC

Menampilkan:

TIDAK

Menyoroti:

high accuracy temperature transmitter

field mounted temperature transmitter

Payment & Shipping Terms

Kuantitas min Order

5 buah

Harga

negotiable

Kemasan rincian

Kemasan karton ekspor standar

Syarat-syarat pembayaran

T/T, Western Union, MoneyGram

Head Mounted Industrial Temperature Transmitter OEM 4 - 20mA 24V Power Supply

Dapatkan Harga Terbaik

4 - 20mA PT100 Head Mounted Temperature Transmitter 24V Power Supply Range

Dapatkan Harga Terbaik

44mm Dimension Head Mounted Temperature Transmitter Module 0.5%FS Accuracy

Dapatkan Harga Terbaik

RTD PT100 4-20mA Head Mounted Temperature Transmitter with English Calibration Software

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

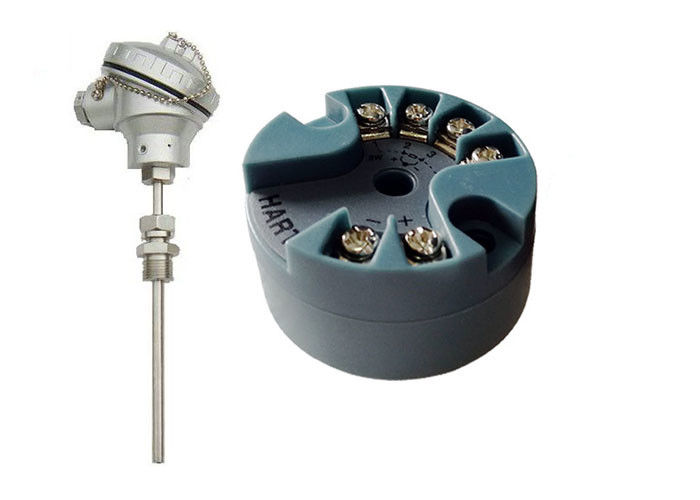

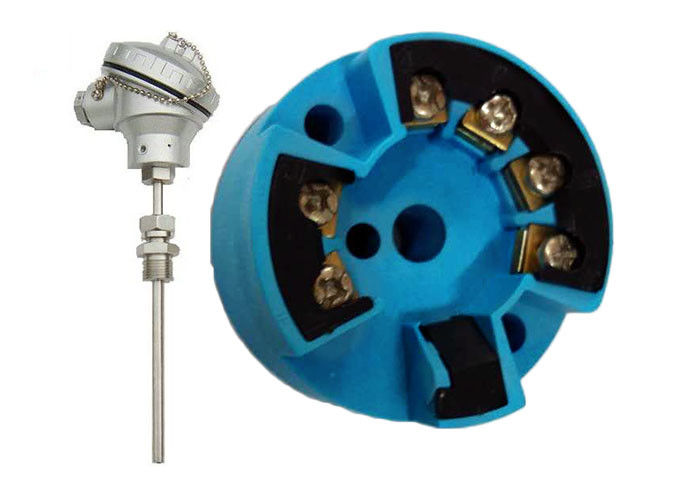

Industrial 4-20ma Hart Head Mounted Temperature Transmitter

Description

WNK temperature transmitter is installed into the top of the temperature transmitter. One side connected to the temperature probe and the other side connected to the circuitry. Compact and inexpensive one is available any time.

It specially designs for PT100. It inputs various RTD signal and converts this signal into 4-20mA standard current signal after linear processing. It has configurable measuring ranges and large ambient temperature range.

Benefits

Measures temperature with a linear output signal
High accuracy across entire ambient temperature range
Reduces plant noise
Slim design, ideal for upgrade of installed PT100 probes with a 4-..20mA signal
Rugged design, fully potted electronic

Main Sensors Accuracy Parameters

Sensors type	Sensor range	Minimum range	Digit accuracy	D/A accuracy
2,3,4- wire thermal resistor
Cu50	-50~150 ºC	10 ºC	±0.15 ºC	0.01%
Cu100	-50~150 ºC	10 ºC	±0.15 ºC	0.01%
PT100	-200~850 ºC	10 ºC	±0.15 ºC	0.01%
PT1000	-200~850 ºC	10ºC	±0.1 ºC	0.01%
2,3,4- wire resistor
400Ω	0~400Ω	10Ω	0.01Ω	0.01%
4000Ω	-0~4000Ω	10Ω	0.01Ω	0.01%
Voltage
100mV	-10~100 mV	10 mV	0.01 mV	0.01%
1000mV	-100~1000mV	10 mV	0.01 mV	0.01%
Thermocouple
B type	150~1820ºC	25ºC	±1.0 ºC	0.01%
E type	-200~1000ºC	25ºC	±0.4 ºC	0.01%
J type	- 210~1200ºC	25ºC	±0.4ºC	0.01%
K type	-200~1372ºC	25ºC	±0.4ºC	0.01%
N type	-200~1300ºC	25ºC	±0.4ºC	0.01%
R type	0~1768ºC	25ºC	±0.8ºC	0.01%
S type	0~1768ºC	25ºC	±0.8ºC	0.01%
T type	-200~400ºC	25ºC	±0.4 ºC	0.01%

Sensor connection ports

4-20ma Hart Industrial Temperature Transmitter One Side Connected 0
