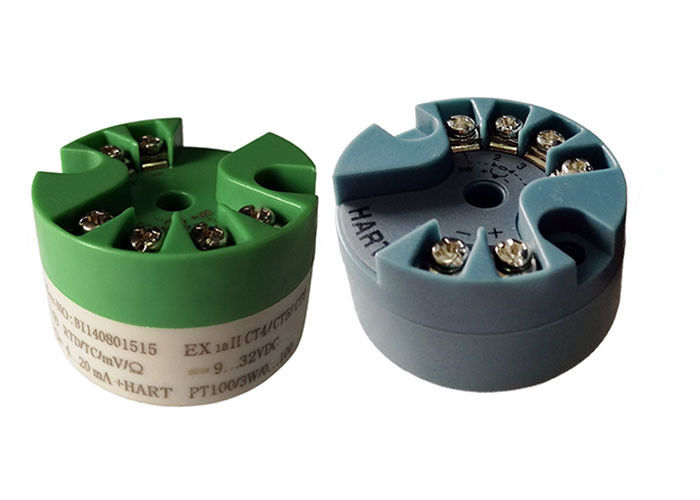

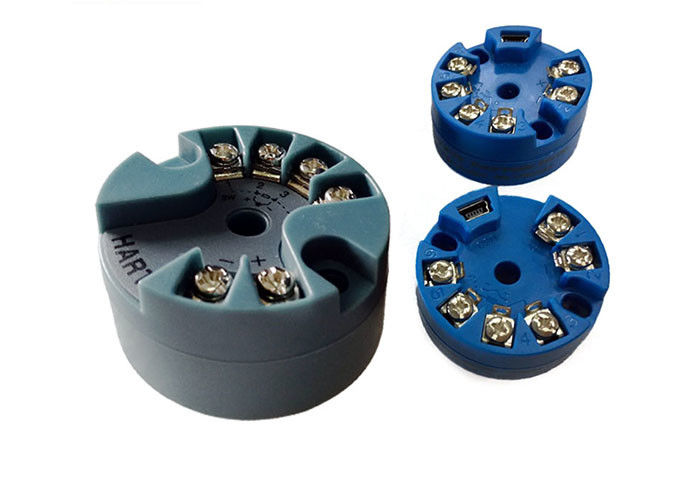

4-20ma Smart Pt100 Temperature Transmitter With Rtd Thermocouple Input

4-20ma Smart Pt100 Pt1000 Head Mounted Temperature Transmitter With Rtd, Thermocouple Input

Quick Information

WNK65 and WNK621 are recommended in application requiring amplification of RTD or T/C signals to carry to a long distance or guard against heavy field electrical noise. The transmitter converts various input to an analog signal for direct interface with Indicators, recorders, controllers, PLC, DCS, systems can be used for a wide range of applications in process control, automatic machinery and hydraulic or pneumatic system.

Features

• Two-wire work mode
• Pt100,Cu50,Cu100, Pt1000 Four thermal resistance full measurement range
• K, S, R, B, N, E, J, T Eight thermocouples full range measurement
• Cold end automatic compensation
• Thermal resistance three-wire measurement automatically eliminating the lead resistance
• Thermal resistance/ Thermocouple disconnection fault prompts and output processing;
• Independent setting for temperature transmission output range
• High accuracy, low temperature drift

Specifications
