OLED Display Type Electronic Digital Temperature Switch And Transmitter

pt100 temperature transmitter

pump control switch

Tempat asal:

Hefei, CN

Nama merek:

WNK

Sertifikasi:

SGS, ISO9001:2015

Nomor model:

STS

Hubungi kami

Permintaan Penawaran

OLED Display Type Electronic Digital Temperature Switch And Transmitter

Product Details

Kisaran Suhu:

-50...200C~260C

Masukan:

PT100, PT1000

Koneksi proses:

G 1/2 M12(5pin,8pin)

Output analog:

4-20mA

Hasil digital:

PNP, NPN

Akurasi Analog:

0,5%FS

Penyegelan:

NBR

Menyoroti:

pt100 temperature transmitter

pump control switch

Payment & Shipping Terms

Kuantitas min Order

1 buah

Harga

negotiable

Kemasan rincian

Pengepakan Layak Laut atau Pengepakan Layak Udara

Waktu pengiriman

5-8 Hari Kerja

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

5000PCS per bulan

PT100 Electronic Digital Temperature Switch With PNP + 4~20mA + Modbus Output

Dapatkan Harga Terbaik

OLED Display Type Electronic Digital Temperature Switch And Transmitter

Dapatkan Harga Terbaik

4-20ma PT100 PT1000 Electronic Digital Temperature Switch

Dapatkan Harga Terbaik

Nbr Sealing M12 Pt100 Water Pump Temperature Switch

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

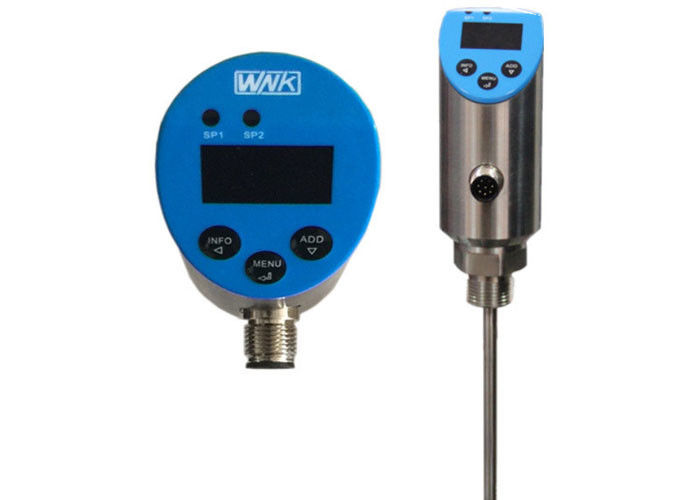

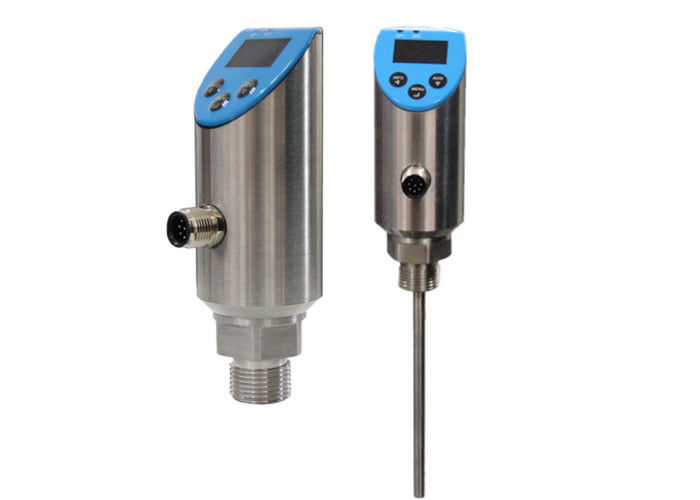

OLED Display Type Electronic Digital Temperature Switch And Transmitter

Description

WNK temperature switch (STS) is suited for temperature monitoring, measurement and control, such as used in cleaning liquid, hydraulic oil, heat-carrying agent and lubricant etc. The STS provides optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.

Specifications

Product name	Electronic Smart Temperature Switch
Measuring range	-50260ºC
Accuracy	≤±0.5ºC
Supply power	1230V DC
Temp. Measuring element	PT1000
Reponse time	< 10ms
Temp. drift	±0.15%/10K
Resolution	±0.01ºC
Analog output accuracy	≤±0.2%FS
Output configurations	2×PNP + 0V~5VDC/10VDC + MODBUS
Output configurations	2×PNP + 0mA/4mA~20mADC + MODBUS
Switch current	1.0A(Max.)
Switching type	Normally open / closed (settable)
Switching reponce time	<10ms
Swith delay	0.00s~1000.0s

Feature:

Support PT100 or PT1000 input
Current output is 4~20mA+2PNP+MODBUS; voltage output is 0~5V/10V+ 2PNP+ MODBUS
Switching points settable
Analog output span settable
OLED self-luminous display
Display reversing 180°
Switching can be set normally open / normally closed
Housing with electrical connection against process connection rotatable 330°
Displaying temperature peak value and environment temperature
Parameters setting for Password protection
MODBUS protocol optional

Technical Data:

Product name	Electronic Smart Temperature Switch
Measuring range	-50260ºC
Accuracy	≤±0.5ºC
Supply power	1230V DC
Temp. Measuring element	PT1000
Reponse time	< 10ms
Temp. drift	±0.15%/10K
Resolution	±0.01ºC
Analog output accuracy	≤±0.2%FS
Output configurations	2×PNP + 0V~5VDC/10VDC + MODBUS
Output configurations	2×PNP + 0mA/4mA~20mADC + MODBUS
Switch current	1.0A(Max.)
Switching type	Normally open / closed (settable)
Switching reponce time	<10ms
Swith delay	0.00s~1000.0s

Ordering sheet:
