Name: 1-5V Smart Pressure Transmitter Directed Mounted for Gas Water Measurement
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK805
Price: 45.00 USD
Availability: InStock

Rumah > Produk > Smart Pressure Transmitter >

1-5V Smart Pressure Transmitter Directed Mounted for Gas Water Measurement

smart pressure sensor

digital pressure transmitter

Tempat asal:

Anhui, Tiongkok

Nama merek:

WNK

Sertifikasi:

ISO,Exia

Nomor model:

WNK805

Hubungi kami

Permintaan Penawaran

Product Details

Ukur media:

Cair, gas dan uap

Sinyal keluaran:

4 ~ 20mA, 1-5v

Ketepatan:

0,2%, 0,25%, 0,5%,

Kisaran tekanan:

-100KPa~0, 0-10kPa, 100kPa......70MPa

Kelas Perlindungan:

IP65

Bahan perumahan:

304SST, 316SST

Catu Daya:

10,5~30V DC

Aplikasi:

Pengukuran tekanan

Menampilkan:

LED (opsional)

Diafragma:

316L

Menyoroti:

smart pressure sensor

digital pressure transmitter

Payment & Shipping Terms

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Kemasan Karton Ekspor Standar

Waktu pengiriman

3 ~ 5 hari kerja

Syarat-syarat pembayaran

T/T, Western Union, MoneyGram

Menyediakan kemampuan

200 set/hari

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

Dapatkan Harga Terbaik

Video

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

Dapatkan Harga Terbaik

Video

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

Dapatkan Harga Terbaik

Video

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

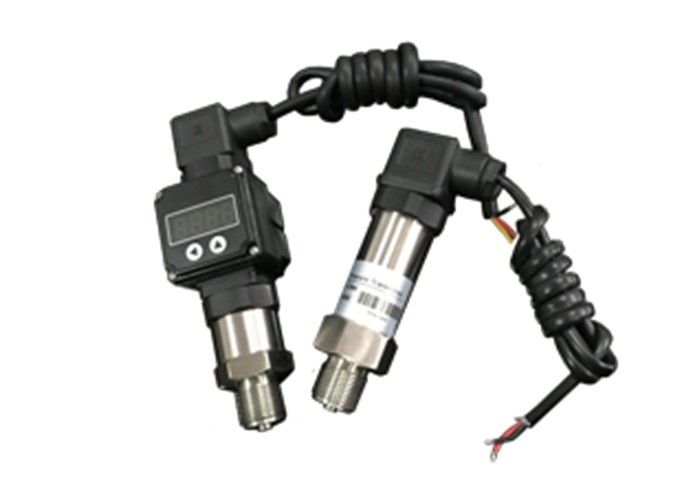

1-5V Smart Pressure Transmitter Directed Mounted for Gas Water Measurement 0

Stainless Steel 4-20mA Air Pressure Sensor for HVAC Air Compressor

Wnk805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably

Application
It is suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media, it can also be used for level measurement

Technical data

Applicable media	Liquid, Gas, Steam
Pressure range	-100KPa~0, 0-0.2~-100kPa, 0-0.2~1000kpa, -1bar ~70MPa
Pressure measurment	Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Accuracy	0.2, 0.5
Stability	±0.25% FS/year
Zero drift	50% of full range span.
Max overload	200% of sensor range
Output signals	4~20mA, 1-5V, 0-5V, 0.5-4.5V for optional
Display	LED (Optional)
Housing material	304 stainless steel
Mechanical connection	M20×1.5; 1/2-18NPT, 1/4NPT, Customize, G1/2 Flush diaphragm, Clamp
Power supply	Non-explosion: 10.5~45V DC
Power supply	EEX ia:10.5～30 V DC
Ambient temperature	－40～85℃
Process temperature	－40～85℃
Compensation temperature	－10～70℃

Dimension

1-5V Smart Pressure Transmitter Directed Mounted for Gas Water Measurement 1

Our product quality is guaranteed

1. Our products are all calibrated before shipment.

2. 100% of all products we do temperature compensation and aging test before shipment.

1-5V Smart Pressure Transmitter Directed Mounted for Gas Water Measurement 2
