China Low Cost High Accuracy Electronic Micro Compressed Air Pressure Sensor

Description

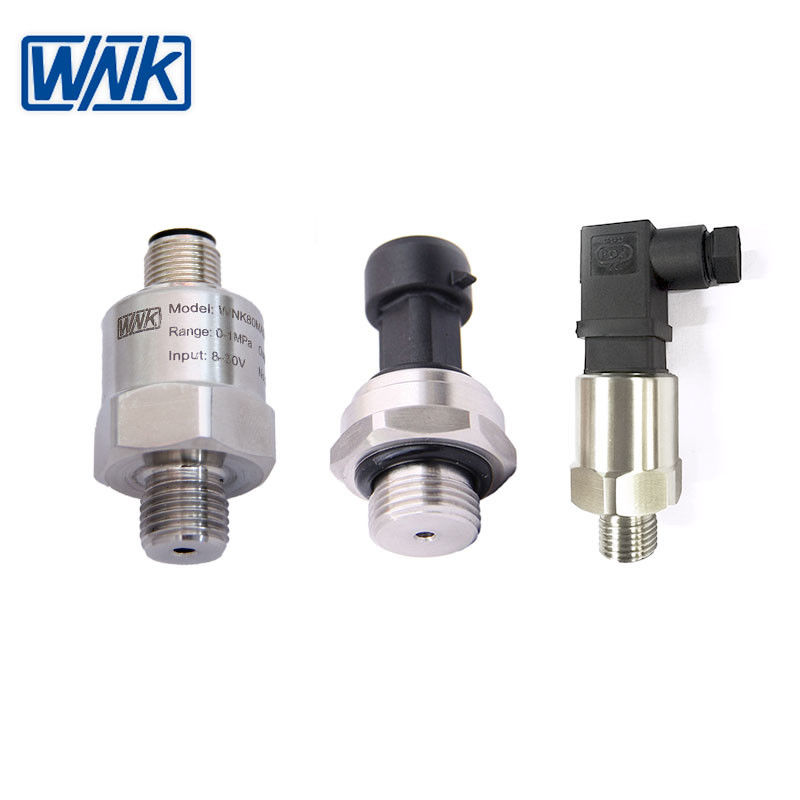

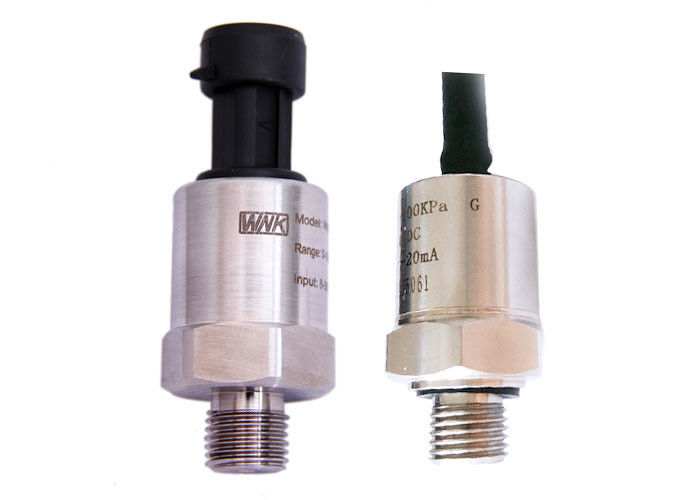

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

Applications



Features :



1. Temperature range: -20 to 85℃

2. Wide operation temperature range -40~125℃

3. High performance ceramic capacitive pressure sensor

4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available

5. Small dimensions, dimension customizble

6. Optional packard, M12, Small Hirschman connectors

7. OEM, ODM, customization service available

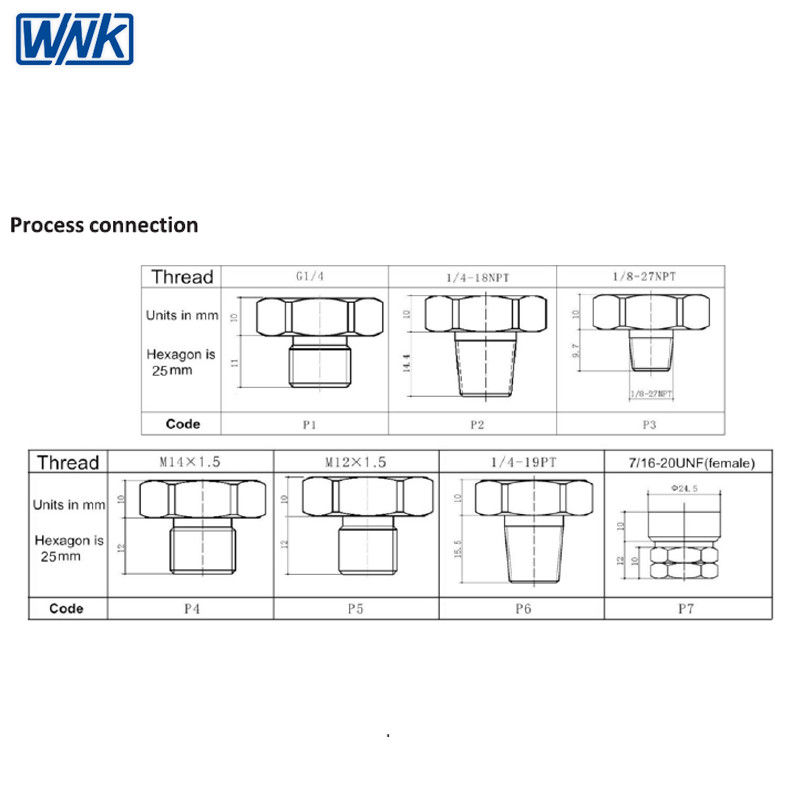

8. Process connector: G1/4, M12*1.5, 1/4NPT, 7/16-20UNF female


Technical Data

Certifications

Ordering Code

Our company

WNK has 13-year experience of research, development, production and sales of sensors. With the concept of smart water management system, smart fire control, sponge city, smart city, and internet of things, WNK quickly seizes opportunities to develop low cost, low power, small size, with temperature measurement function ceramic capacitive pressure sensor.
After two years of research, development and repeatedly testings, our ceramic capacitive sensors have entered big quantity production stage. For different applications and installation methods, we offer OEM, ODM and customization services.
