Name: Local Display Electronic Pressure Transmitter for Level Measurement
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK51
Price: 45.00 USD
Availability: InStock

Rumah > Produk > Smart Pressure Transmitter >

Local Display Electronic Pressure Transmitter for Level Measurement

smart type pressure transmitter

digital pressure transmitter

Tempat asal:

Anhui, Tiongkok

Nama merek:

WNK

Sertifikasi:

CE, ISO, HART

Nomor model:

WNK51

Hubungi kami

Permintaan Penawaran

Local Display Electronic Pressure Transmitter for Level Measurement

Product Details

Ukur media:

Cair, gas dan uap

Sinyal keluaran:

4~20mA, Hart, Profibus

Ketepatan:

0,075%

Kisaran tekanan:

-100kpa ~ 70Mpa

Kelas Perlindungan:

IP66/67

Bahan perumahan:

Aluminium

Catu Daya:

24V, 10-30v

Bukti ledakan:

ExiaIICT4, ExiaIICT6, ExdIICT6

Aplikasi:

Pengukuran tekanan

Diafragma sensor:

Diafragma 316L

Menyoroti:

smart type pressure transmitter

digital pressure transmitter

Payment & Shipping Terms

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Kemasan Karton Ekspor Standar

Waktu pengiriman

3 ~ 5 hari kerja

Syarat-syarat pembayaran

T/T, Western Union, MoneyGram

Menyediakan kemampuan

200 set/hari

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

Dapatkan Harga Terbaik

Video

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

Dapatkan Harga Terbaik

Video

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

Dapatkan Harga Terbaik

Video

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

Dapatkan Harga Terbaik

Hubungi kami

Hubungi Sekarang

Product Description

Electronic Smart Pressure Transmitter for Level Measurement with Local Display

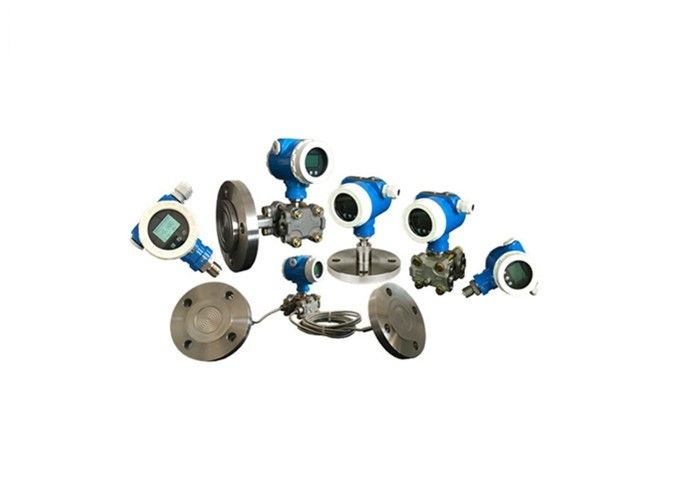

Local Display Electronic Pressure Transmitter for Level Measurement 0

WNK5 series pressure transmitter is the high performance pressure transmitters provided by Hefei WNK Smart Technology Co., Ltd. It transforms the physical signal of pressure, differential pressure and level etc into standard signal, by collecting cell sensor and digital processing circuit.

Our WNK5 series has the best precision and signal uniformity by applying advanced specified integrated circuit digital technology. Each set of transmitter is ambient temperature compensated in our factory, to ensure max precision and mini drift in wide working temperature range.

Product application
1. Gauge & absolute pressure measurement in gases, steam or liquids in all areas of of engineering process and measurement.
2. Level, volume or mass measurement in liquids.
3. Working with detecting element, measure the flow of gases, steam and liquid flow.( volume and mass flow)
4. High pressure up to 700bar.

Product feature
1. High reference accuracy up to 0.05%.
2. Long-term drift ≤±0.25%URL for 1 year.
3. Hart, PROFIBUS-PA or FF protocol for option.
4. Intrinsically safe and Exd explosion proof
5. Range down ratio 100:1
6. Smart type for easy calibration

Technical data

Measured media	liquid, gas and steam
Pressure range	-100KPa~70MPa
Output signals	4~20mA, Hart, PROFIBUS-PA for option
Accuracy	0.075%, higher on request
Stability	±0.15% of URL for 5 years
Temperature drift	±0.03% of URL/10ºC
Display	LCD, or pointer optional
Housing material	Aluminum14
Process connection	M20×1.5;G1/2;1/2NPT
Protection class	IP66/67
Ex-proof	ExiaIICT4, ExiaIICT6, ExdIICT6
Power Supply	10.5-55V DC 10.5-30V DC
Ambient temperature	-40 to 85ºC,-40 to 80ºCfor LCD header
Storage temperature	-45 to 85ºC,-40 to 80ºC for LCD header ;
Measurement	with display: 9512652 (mm)
Measurement	without display: 9511552 (mm)
Net Weight	1.7kg (without bracket or process connection)

Installation diagram

Local Display Electronic Pressure Transmitter for Level Measurement 1

Ordering sheet

Model	Product Details
WNK51	smart high precision pressure transmitter
Code	Approval
A	For non-hazardous areas
1	ExiaIICT6
2	ExiaIICT4
3	ExdIIBT6
For other approvals or more information, please contact with us
Code	Output Code
A	4…20mA
H	4…20mA,HART
P	PROFIBUS-PA
F	FF
Code	Display
A	No display
L	LCD
Code	Housing; Cable entry; Protection
A	Aluminum14,M20×1.5,IP66/67
B	Aluminum 14,G1/2,IP66/67
C	Aluminum14,1/2NPT,IP66/67
Code	Sensor range, for gauge pressure	Code	Sensor range, for absolute pressure
1C	100mbar (10kPa/1mH2O)	2C	100mbar (10kPa/1mH2O)
1E	250mbar (25kPa/2.5mH2O)	2E	250mbar (25kPa/2.5mH2O)
1F	400mbar (40kPa/4mH2O)	2F	400mbar (40kPa/4mH2O)
1H	1bar (100kPa/10mH2O)	2H	1bar (100kPa/10mH2O)
1K	2bar (200kPa/20mH2O)	2K	2bar (200kPa/20mH2O)
1M	4bar (400kPa/40mH2O)	2M	4bar (400kPa/40mH2O)
1P	10bar (1MPa/100mH2O)	2P	10bar (1MPa/100mH2O)
1S	40bar (4MPa/400mH2O)	2S	40bar (4MPa/400mH2O)
1U	100bar (10MPa/1000mH2O)	2U	100bar (10MPa/1000mH2O)
1W	400bar (40MPa/4000mH2O)	2W	400bar (40MPa/4000mH2O)
1X	700bar (70MPa/7000mH2O)	2X	700bar (70MPa/7000mH2O)
Code	Calibration,Unit
1	Sensor range,mbar/bar
2	Sensor range,kPa/MPa
3	Sensor range,mmH2O/mH2O
4	Sensor range,psi
Code	Diaphragm material
1	316L
2	Alloy C-276
X	Other special requirement
For other special kind of diaphragm, please contact with us.
Code	Process connection; screw
GA	Male thread G1/2, inner hole 3mm,316
GB	Male thread G1/2, inner hole 11.4mm,316
GC	Female thread G1/2, inner hole 3mm,316
GD	Female thread G1/2, inner hole 11.4mm,316
NA	Male thread 1/2NPT, inner hole 3mm,316
NB	Male thread 1/2NPT, inner hole 11.4mm,316
NC	Female thread 1/2NPT, inner hole 3mm,316
ND	Female thread 1/2NPT, inner hole 11.4mm,316
MA	Male thread M20×1.5, inner hole 3mm,316
MB	Male thread M20×1.5, inner hole 11.4mm ,316
JX	Other special requirement
For other special connection screw thread, please contact with us.
Code	Process connection material
3	316
H	Alloy C
Code	Overvoltage protection
A	No
M	Overvoltage protection
Code	Mounting bracket
A	No
U	Mounting bracket for pipe
Typical model#:WNK51 AHL A1P21 MA3 AU

Local Display Electronic Pressure Transmitter for Level Measurement 2

Local Display Electronic Pressure Transmitter for Level Measurement 3
