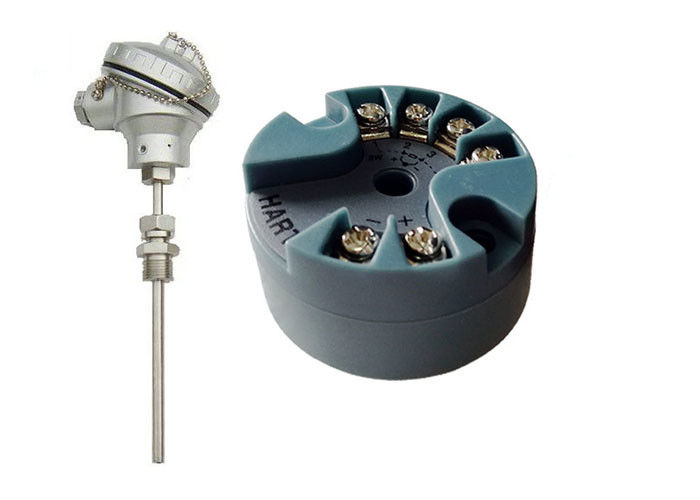

High Accuracy 4-20mA Hart PT100 / Rtd Head Mount Temperature Transmitter
WNK65 is suitable for four types of thermal resistors including Cu50, Cu100, PT100, PT1000 and eight types of thermocouple including E, J, B, K, N, R, S, T type. And it supports measurement of minivolt signal of -10~100mV and -100~1000mV, and resistive signal of 0~400Ω and 0~4000Ω. Isolation voltage is DC1000V.
Pls read the instruction carefully before using WNK65, and operate accordingly. If there is anything unclear in application, pls do not heisitate to contact us, we will come to you and solve problems as soon as possible.

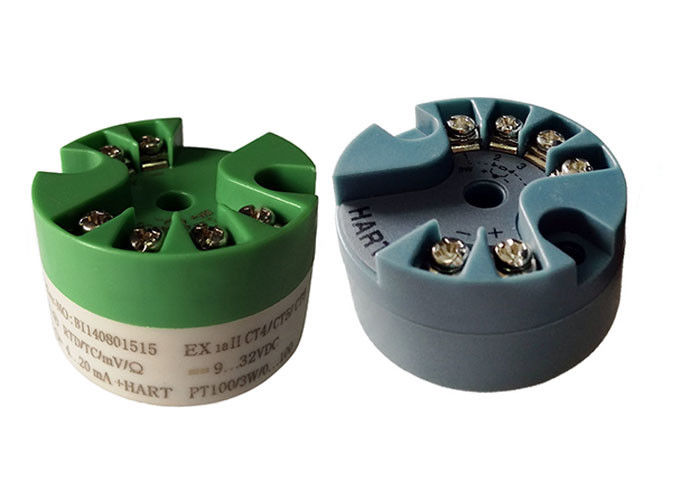

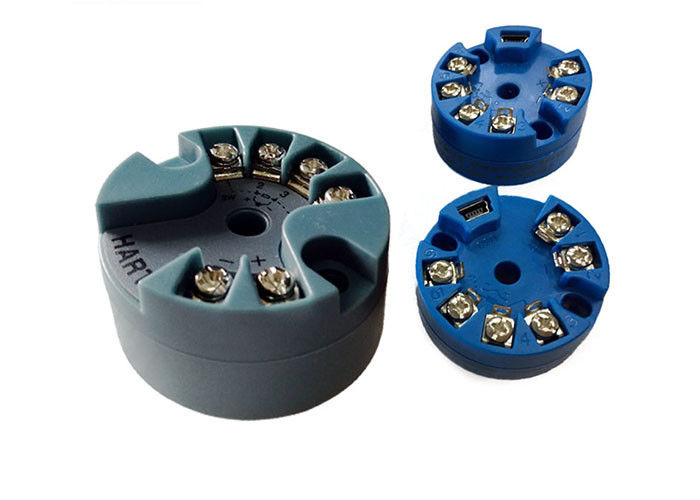

WNK65 Temperature Transmitter
1. Supply power:DC9V~32V;
2. Output signal 4-20mA with HART protocol digital communication ( two-wire ), HART communication does not influent 4-20mA analog output;
3. Communicator or PC configuration and debugging software can do remote management;
4. Code end compensation of thermalcouple can choose internal temperature sensor, external temperature sensor, fixed temperature value and forbide code end compensation;
5. Internal code end compensation accuracy: ±0.5ºC
6. Damp: 0-64 seconds adjustable;
7. Data refreshing frequency: 4times/second;
8. Stability: ±0.2%/year;
9. Woring ambient temperature range: -40ºC~+85ºC;
10. Dimensions: φ44mm;
11. Mounting hole distance: 33mm;
12. Anti mechanical vibration: 10~60HZ,0.21mm sine wave;
13. Anti radio frequency interference: IEC61000-4-3, 20V/M,80~1000MHZ
2. Hardware components
2.1 Power
- Supplying power range is DC9V~32V, connected from port 1 and 2.
- Inlay opposite direction voltage protection circuit, misconnetion of power will cause no damage.
Note: Never connect 24V with sensor port! It will cause permanent damage of transmitter!
2.2 Wiring ports diagram
2.3 Sensor connection ports
Main sensors accuracy parameters:
| Sensors type |
Sensor range |
Minimum range |
Digit accuracy |
D/A accuracy |
| 2,3,4- wire thermal resistor |
| Cu50 |
-50~150 ºC |
10 ºC |
±0.15 ºC |
0.01% |
| Cu100 |
-50~150 ºC |
10 ºC |
±0.15 ºC |
0.01% |
| PT100 |
-200~850 ºC |
10 ºC |
±0.15 ºC |
0.01% |
| PT1000 |
-200~850 ºC |
10ºC |
±0.1 ºC |
0.01% |
| 2,3,4- wire resistor |
| 400Ω |
0~400Ω |
10Ω |
0.01Ω |
0.01% |
| 4000Ω |
-0~4000Ω |
10Ω |
0.01Ω |
0.01% |
| Voltage |
| 100mV |
-10~100 mV |
10 mV |
0.01 mV |
0.01% |
| 1000mV |
-100~1000mV |
10 mV |
0.01 mV |
0.01% |
| Thermocouple |
| B type |
150~1820ºC |
25ºC |
±1.0 ºC |
0.01% |
| E type |
-200~1000ºC |
25ºC |
±0.4 ºC |
0.01% |
| J type |
- 210~1200ºC |
25ºC |
±0.4ºC |
0.01% |
| K type |
-200~1372ºC |
25ºC |
±0.4ºC |
0.01% |
| N type |
-200~1300ºC |
25ºC |
±0.4ºC |
0.01% |
| R type |
0~1768ºC |
25ºC |
±0.8ºC |
0.01% |
| S type |
0~1768ºC |
25ºC |
±0.8ºC |
0.01% |
| T type |
-200~400ºC |
25ºC |
±0.4 ºC |
0.01% |
Competitive Advantages:
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
